1615 (137-260-100) - Cub Cadet Garden Tractor Starter Parts Diagram

Garden Tractor

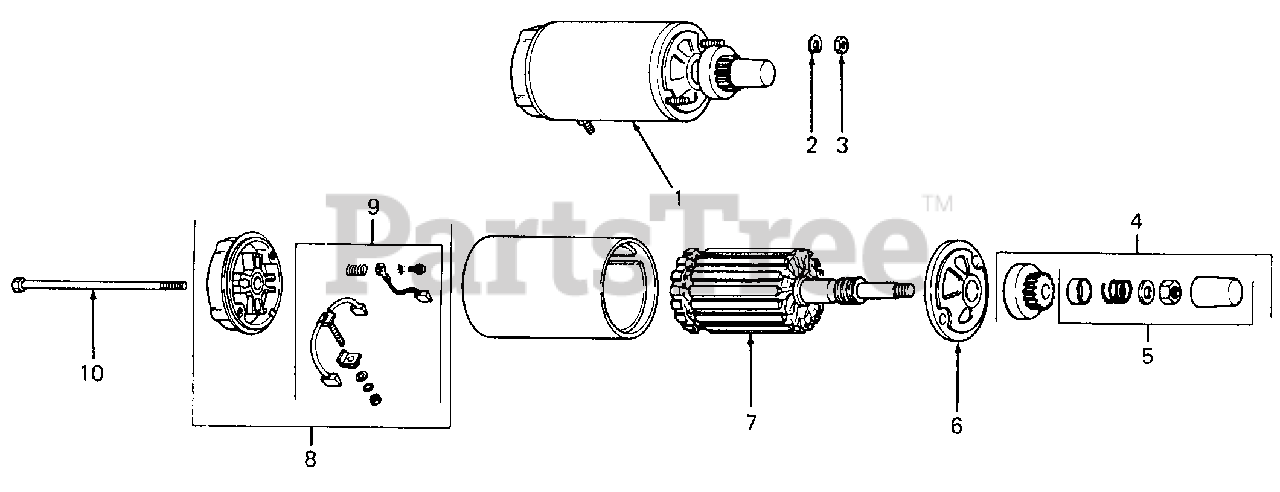

Starter Parts Diagram

  • Title

1

Cub Cadet KH-52-098-03

Starter Assy
(Superseded to KH-52-098-12)

Note: (Includes Ref No. 4 thru 10)

$

$

Not available

2

Cub Cadet KH-X-20-1

Washer, Lock

$

$

Not available

3

Cub Cadet KH-X-81-1

Nut, Hex, 1/4-20

$

$

Not available

4

Cub Cadet KH-52-755-05

Drive Kit
(Superseded to KH-82-755-32)

Note: (Includes Ref No. 5)

$

$

Not available

5

Cub Cadet KH-52-755-08

Drive Parts Kit
(Superseded to KH-82-755-32)

$

$

Not available

6

Cub Cadet KH-52-227-01

Cap, Drive End
(Superseded to KH-82-755-32)

$

$

Not available

7

Cub Cadet KH-52-170-02

Armature

$

$

Not available

8

Cub Cadet KH-48-227-04

Cap, Commutator End

Note: (Includes Ref No. 9)

$

$

Not available

9

Cub Cadet KH-48-755-15

Brush Kit
(Superseded to KH-82-755-28)

$

$

Not available

10

Cub Cadet KH-52-211-01

Bolt, Thru, 1/4-20 X 5-7/8

$

$

Not available

Cub Cadet KH-25-450-03

Tag, Caution

$

$

Currently unavailable
