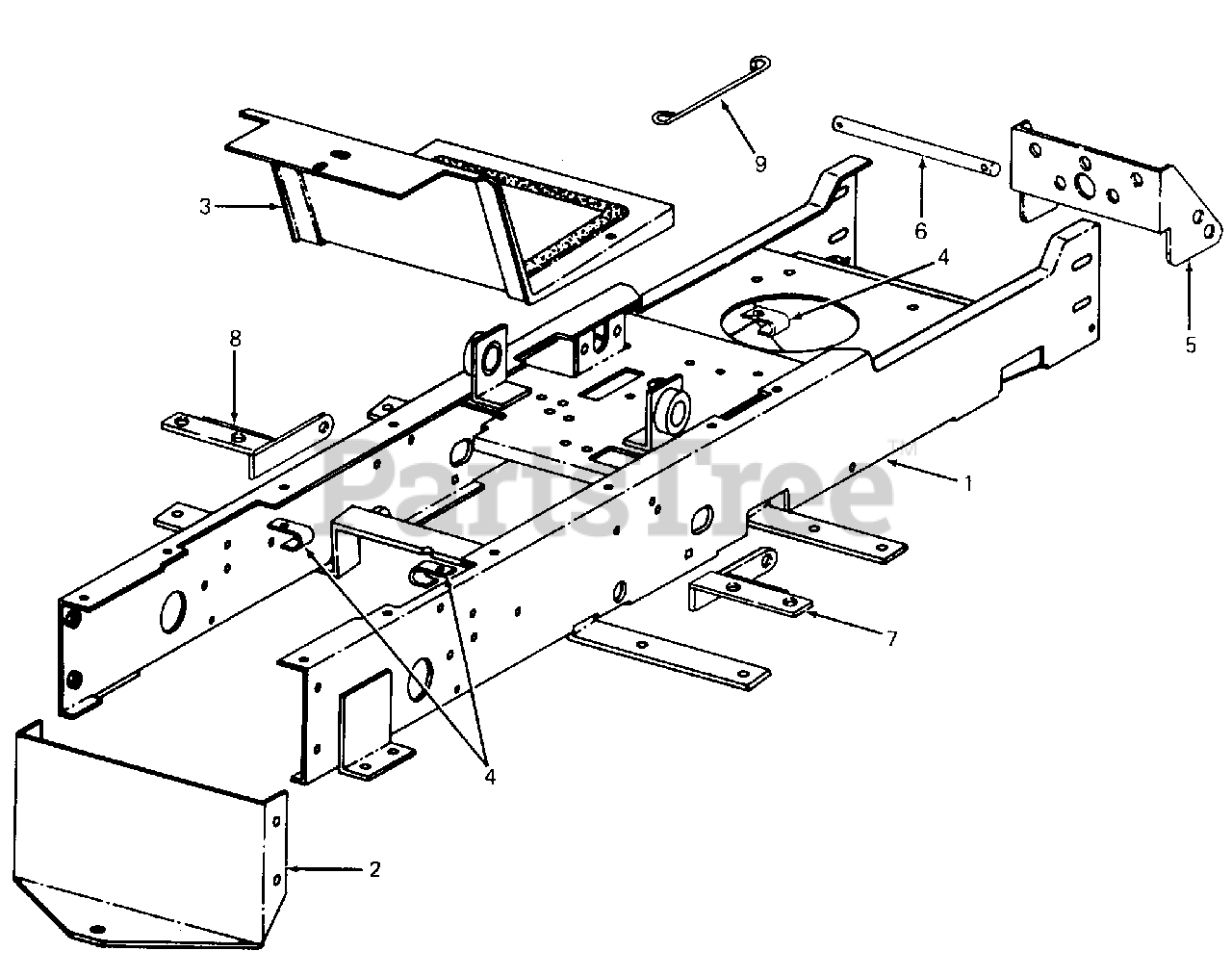

1615 (137-260-100) - Cub Cadet Garden Tractor Frame & Drawbar Parts Diagram

Garden Tractor

Frame & Drawbar Parts Diagram

  • Title

$

$

Currently unavailable

2

Cub Cadet 703-1119

Drawbar
(Superseded to 703-1119-0498)

Variations

Cub Cadet 703-1119-0498

Drawbar - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 736-0169

Washer, 3/8 Lock

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 759-3194

Cover w/Graphic

$

$

Not available

Cub Cadet 779-3336

Graphic, Caution

$

$

Not available

Cub Cadet 710-3149

Screw, #10-16 X 1 PHC O/Hdcr Tap

$

$

Not available

Cub Cadet 726-3039

Nut, Speed

$

$

Not available

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 736-3032

Washer, .406 X 1 X .054 Flat

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 Lock

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 712-3004

Nut, 3/8 Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1288

Front Mower Support
(Superseded to 703-1964-0716)

$

$

Not available

Cub Cadet 710-3000

Bolt, 3/8-16 X 3/4 Lg GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 736-0169

Lock Washer, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-1297

Deck Support Rod

$57.99

$

In Stock, only 1 left!

0

Cub Cadet 714-0149

Internal Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

7

Cub Cadet 703-1441

Rear Deck Bracket Assy, RH

$

$

Not available

8

Cub Cadet 703-1442

Rear Deck Bracket Assy, LH

$

$

Not available

9

Cub Cadet 747-3106

Link Retaining Rod

$

$

Not available

Cub Cadet 736-0206

Flat Washer, 3/8 ID X 1.0 OD
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 712-3005

Nut, Flange, 3/8-16

$6.99

$

Usually ships in 3-6 days

0
