1615 (137-260-100) - Cub Cadet Garden Tractor Clutch Pedal & Connections Parts Diagram

Garden Tractor

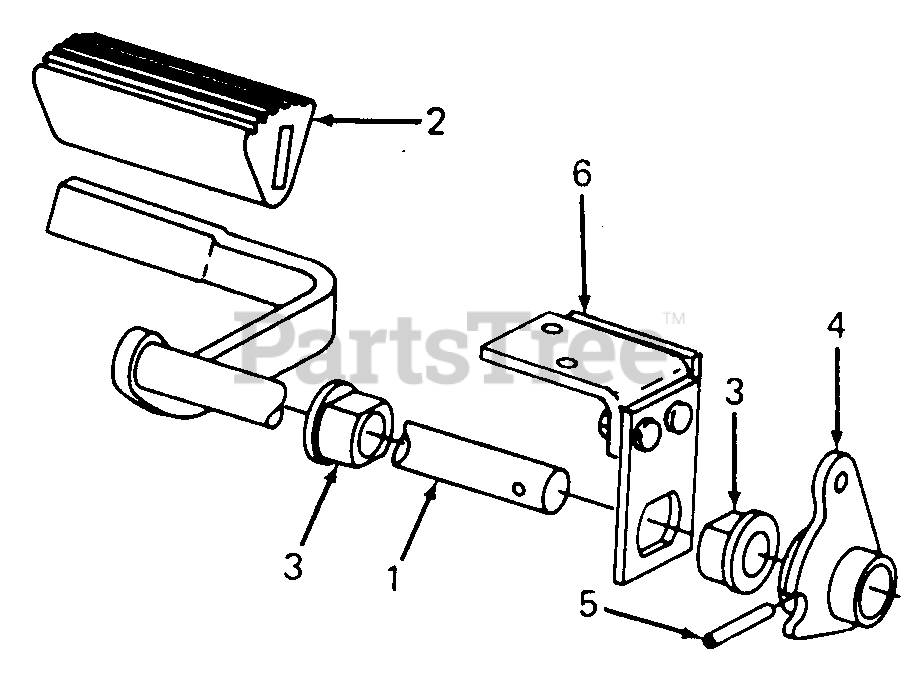

Clutch Pedal & Connections Parts Diagram

  • Title
1

Cub Cadet 703-1246

Pedal, Clutch

$

$

Not available

2

Cub Cadet 735-0189

Pad, Foot

$

$

Not available

3

Cub Cadet 748-0151

Bearing, Flange
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-1192

Cam, Clutch

$

$

Currently unavailable

5

Cub Cadet 715-3033

Pin, 1/4 X 1-1/2 Pln Slt-Spr

$

$

Not available

6

Cub Cadet 759-3329

Adjustable Pedal Brk't Kit

$

$

Not available

Cub Cadet 710-3000

Bolt 3/8-16 X 3/4 GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 712-3000

Nut 3/8-16 GR 5

$4.49

$

In Stock, Qty 9

0
