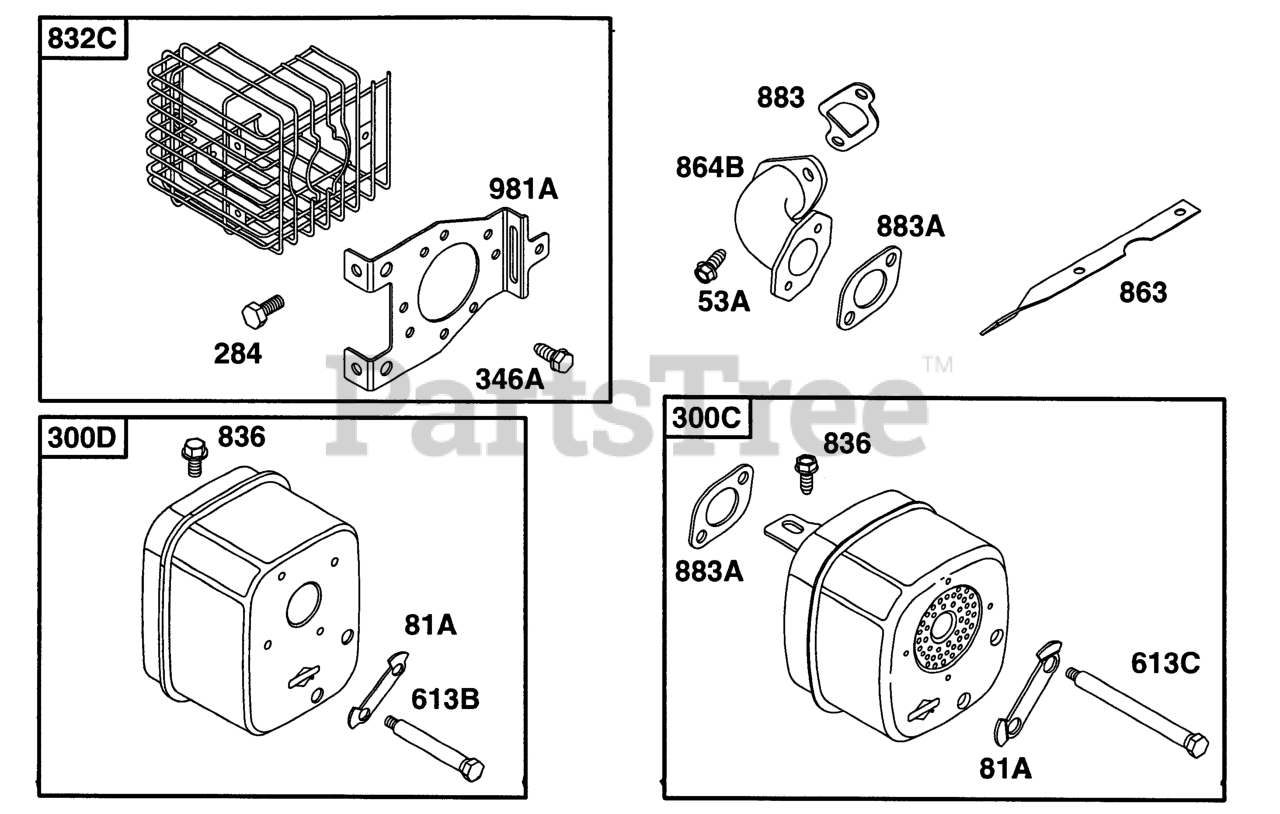

161437-0042-XX - Briggs & Stratton Horizontal Engine Muffler Grp Parts Diagram

Horizontal Engine

Muffler Grp Parts Diagram

  • Title

53A

Briggs & Stratton 810069

Screw-Hex. Hd.
(Superseded to 690936)

$6.99

$

Usually ships in 2-12 days

0

81A

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

284

Briggs & Stratton 94602

Screw, Hex Wash Hd
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

300D

Briggs & Stratton 494221

Muffler-Exhaust

$

$

Not available

300C

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

346A

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

346A

Briggs & Stratton 94896

Screw, Tapping Hex
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

613B

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.49

$

Usually ships in 2-12 days

0

613C

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.49

$

In Stock, only 2 left!

0

832C

Briggs & Stratton 494868

Guard-Muffler

$67.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 94874

Screw, Hex Wash Hd
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

863

Briggs & Stratton 224594

Strap-Muffler

$11.99

$

Usually ships in 2-12 days

0

864B

Briggs & Stratton 213922

Adapter-Muffler

$

$

Not available

883A

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

883

Briggs & Stratton 272102

Gasket-Exhaust

Note: Included in Valve Overhaul Kit-Part No. 495771. Included in Gasket Set-Part No. 491999

$11.99

$

Usually ships in 2-12 days

0

981A

Briggs & Stratton 223373

Bracket-Muffler Guard
(Superseded to 690425)

$34.99

$

Usually ships in 2-12 days

0
