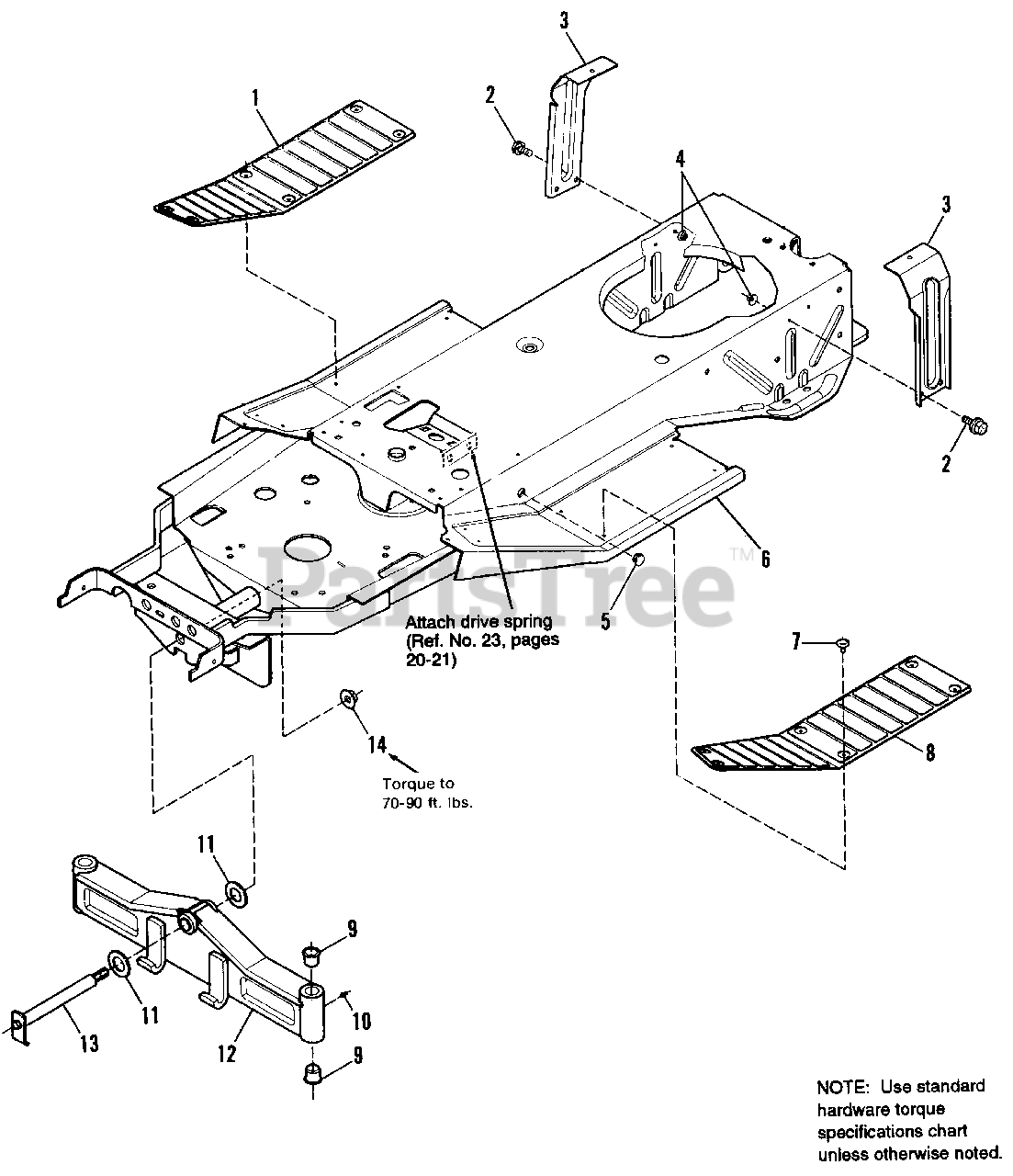

1613 H (1692266) - AGCO 38" Lawn Tractor, 12.5hp Frame & Front Axle Group Parts Diagram

38" Lawn Tractor, 12.5hp

Frame & Front Axle Group Parts Diagram

  • Title

1

Simplicity 1704310SM

PAD, Footrest, R.H.

$

$

Not available

2

Simplicity 1934654SM

CAPSCREW, Hex, Flange, Whizlock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 3 left!

0

3

Simplicity 1703968SM

SUPPORT, Seat

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1919439SM

NUT, Hex, Esna Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1704990

PLUG

$

$

Not available

6

Simplicity 1709883

FRAME ASSY.

$

$

Not available

7

Simplicity 1704351SM

FASTENER, Panel (Qty. 12 on Hydro)

$4.99

$

In Stock, only 3 left!

0

8

Simplicity 1704311SM

PAD, Footrest, L.H.

$

$

Not available

9

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1704314SM

GREASE, Fitting
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 2860530SM

WASHER, Special

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 1703475ASM

AXLE ASSY., Front

$634.99

$

Usually ships in 2-12 days

0

13

Simplicity 1718856SM

AXLE PIVOT ASSY.
(Superseded to 1718856ASM)

$108.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960270SM

NUT, Hex, Full, Lock, 3/4-16

$4.49

$

In Stock, only 3 left!

0
