1613 H (1692076) - AGCO Lawn Tractor, 12.5hp Hand Controls Group (Hydro) Parts Diagram

Lawn Tractor, 12.5hp

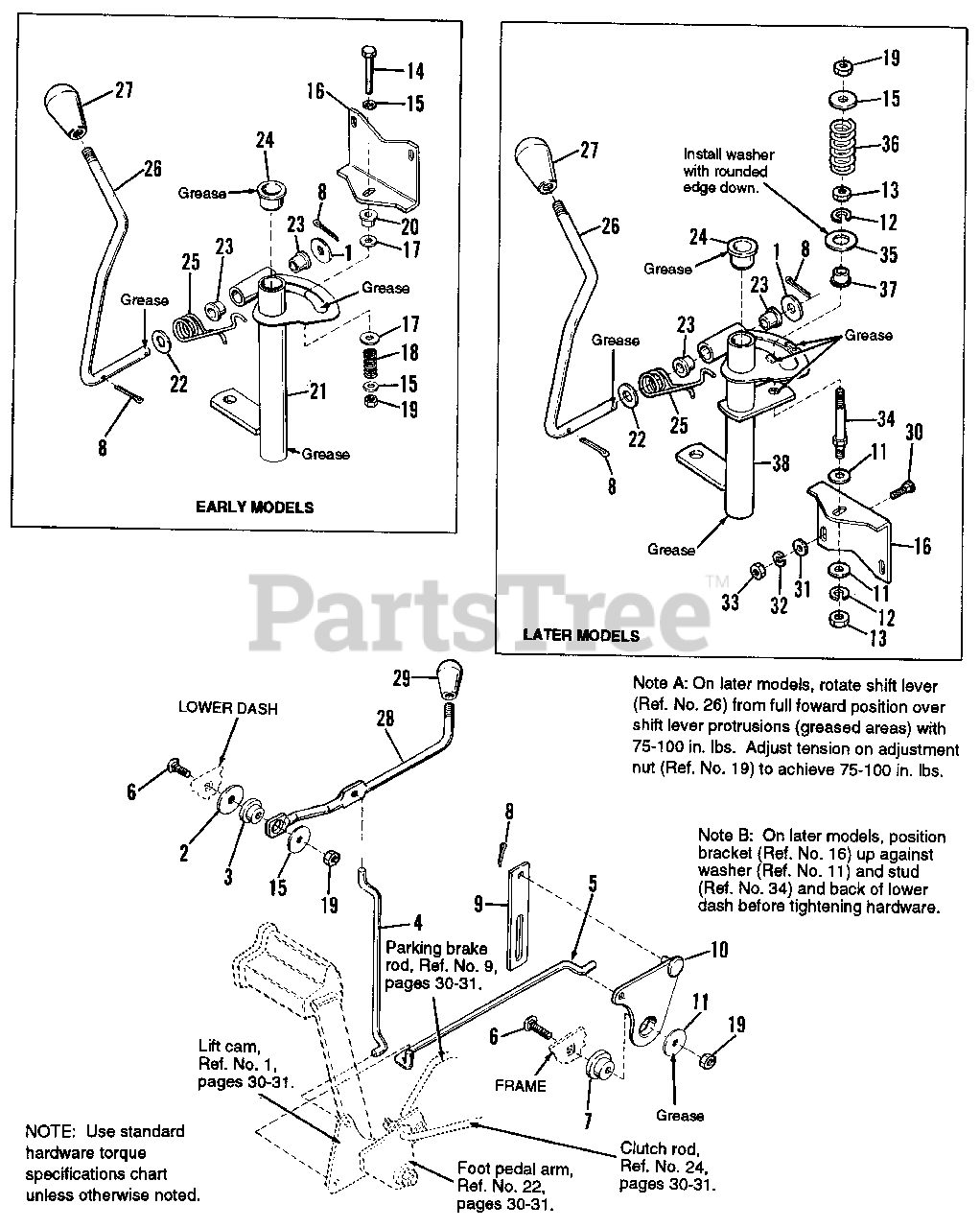

Hand Controls Group (Hydro) Parts Diagram

  • Title

1

Simplicity 1960206SM

WASHER, 1/2

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1705590SM

SPACER, Special

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 1704623SM

LINK, Lift Upper

$

$

Not available

5

Simplicity 1704624SM

LINK, Lift

$

$

Not available

6

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

7

Simplicity 1704629SM

SPACER, Special
(Superseded to 1732540SM)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1704756A

LINK, Lift, Upper Transport
(Superseded to 1704756ASM)

$19.99

$

In Stock, only 3 left!

0

10

Simplicity 1704825SM

CAM, Lift Assy.

$80.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960044SM

WASHER, Plain, 21/64 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4 (Early models only)
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1704620SM

BRACKET, Tension

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1960020SM

WASHER, Plain, 5/8 (Early models only)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1677746SM

SPRING (Early models only)

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 1919438SM

NUT, Hex, ESNA Lock, 5/16-18 (Qty. 2 on later models)
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 1704332SM

SPACER

$28.99

$

Usually ships in 2-12 days

0

21

Simplicity 1685492SM

SHIFT LEVER KIT (Early models only)

$

$

Not available

22

Simplicity 1924361SM

WASHER, Plain
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1704428SM

BUSHING, Plastic, 1/2 Dia.

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 2176440SM

BUSHING, Nylon, 3/4 Dia.

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1709236SM

SPRING, Torsion

$57.99

$

Usually ships in 2-12 days

0

26

Simplicity 1685700SM

LEVER, Shift

$36.99

$

Usually ships in 2-12 days

0

27

Simplicity 1676743SM

KNOB, Plastic

$19.99

$

Usually ships in 2-12 days

0

28

Simplicity 1686730SM

ROD, Lift Handle

$17.99

$

Usually ships in 2-12 days

0

29

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 6

0

30

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

31

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

33

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1709211

STUD, 5/16-18 x 3-1/4

$

$

Not available

35

Simplicity 1709140SM

WASHER, H.T.

$5.49

$

Usually ships in 2-12 days

0

36

Simplicity 1677746SM

SPRING, Compression (Later models only)

$7.99

$

Usually ships in 2-12 days

0

37

Simplicity 1709043SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

38

Simplicity 1709166SM

SHIFT LEVER ASSY. (Later models only)

$48.99

$

Usually ships in 2-12 days

0
