1613 H (1691820) - AGCO 38" Lawn Tractor, 12.5hp Seat, Deck & Fuel Tank Group - Early Models Parts Diagram

38" Lawn Tractor, 12.5hp

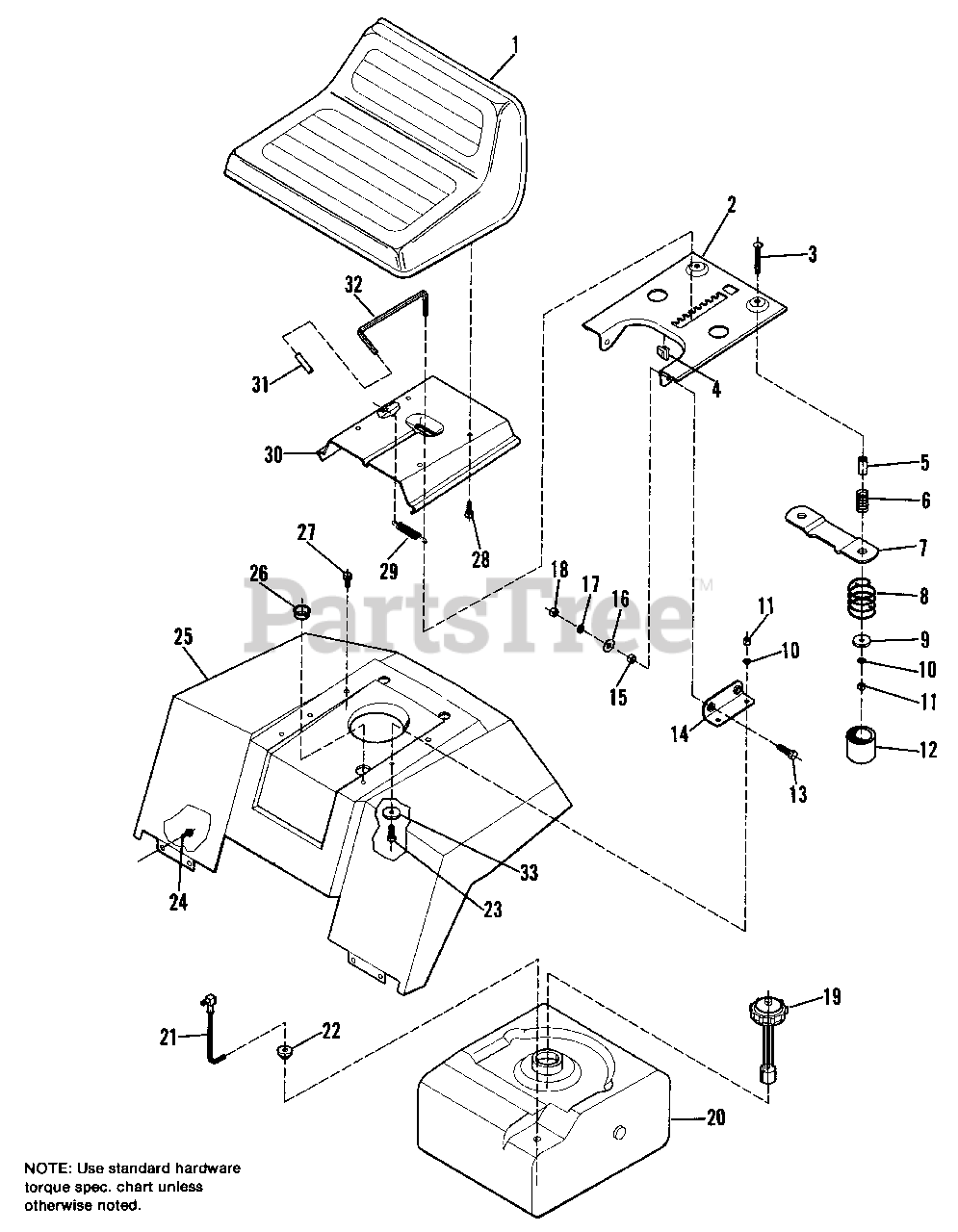

Seat, Deck & Fuel Tank Group - Early Models Parts Diagram

  • Title

1

Simplicity 1714316SM

SEAT

$295.99

$

Usually ships in 2-12 days

0

2

Simplicity 1704158

PLATE, Seat

$

$

Not available

3

Simplicity 1931339SM

CARRIAGE BOLT, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

4

Simplicity 173783

CLIP, Speed

$

$

Not available

5

Simplicity 1704299SM

SPACER

$15.99

$

Usually ships in 2-12 days

0

6

Simplicity 1704402SM

SPRING, Compression

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1704284

PLATE, Switch

$

$

Not available

8

Simplicity 1704728SM

SPRING, Compression

$9.99

$

In Stock, only 2 left!

0

9

Simplicity 1933468SM

WASHER, Plain

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1704724SM

COVER, Spring

$7.99

$

In Stock, only 4 left!

0

13

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1704285SM

BRACKET, Seat Suspension

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 17

0

16

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 2816950SM

NUT, Hex Hd., 3/8
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1704366SM

CAP, Fuel Gauge

$67.99

$

In Stock, only 1 left!

0

20

Snapper 1708054SM

TANK, Fuel

$132.99

$

Usually ships in 2-12 days

0

21

Simplicity 1704108SM

ELBOW & TUBE ASSY.

$35.99

$

Usually ships in 2-12 days

0

22

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

23

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

24

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

25

Simplicity 1686785SM

SEAT DECK

$264.99

$

Usually ships in 2-12 days

0

26

Simplicity 1701229SM

BUSHING, Snap

$1.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

28

Simplicity 1930591SM

BOLT, Hex, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

29

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

30

Simplicity 1704159

BRACKET, Seat Slide

$

$

Not available

31

Simplicity 1704723SM

HANDLE, Grip

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1704317

LEVER, Seat Release

$

$

Not available

33

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0
