1613 H (1691817) - AGCO Lawn Tractor, 12.5hp Transmission Group - Hydrostatic Diagram 2 Parts Diagram

Lawn Tractor, 12.5hp

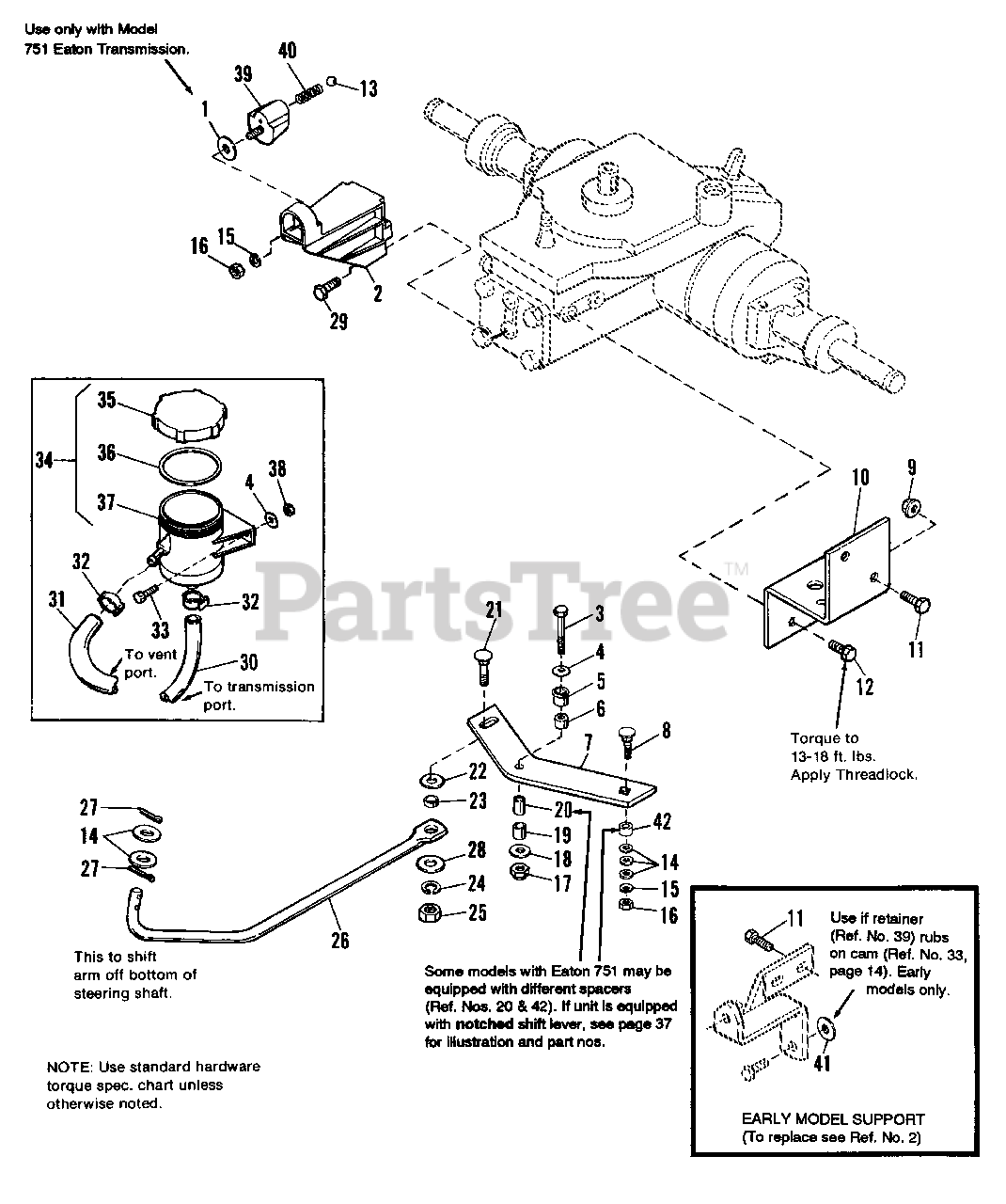

Transmission Group - Hydrostatic Diagram 2 Parts Diagram

  • Title

1

Simplicity 1960452SM

WASHER

$1.99

$

Usually ships in 2-12 days

0

2

Simplicity 1705400

SUPPORT, Detent

$

$

Not available

3

Simplicity 1921963SM

CAPSCREW, Hex Hd., 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1704428SM

BUSHING, Plastic, 1/2 dia.

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1708317SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707188

LEVER, Speed Control

$

$

Not available

8

Simplicity 1931320SM

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1927557SM

NUT, Flange Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704432

BRACKET, Transmission, Mounting

$

$

Not available

11

Simplicity 1930591SM

SCREW, Hex, Flange Whizlock, 5/16-18 x 3/4 (Qty. 4 on Early Models.)
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

12

Simplicity 1930591SM

SCREW, Hex, Flange Whizlock, 5/16-18 x 5/8
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

13

Simplicity 2817579SM

BALL

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 1916622SM

NUT, Hex Fu11, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1920397SM

NUT, Hex Lock, Esna, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1960151SM

WASHER
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 1704847SM

BUSHING

$

$

Not available

20

Simplicity 1708318SM

SPACER, Cam, Control

$

$

Not available

21

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1917372SM

NUT, Hex, Full
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1704435

ROD, Shift

$

$

Not available

27

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 5

0

29

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1706492SM

HOSE, Hydro to Reservoir, 66" Hose (12.5 HP Only)

$29.99

$

Usually ships in 2-12 days

0

30

Simplicity 1706491SM

HOSE, Hydro to Reservoir, 58" Hose (16 HP Only)

$33.99

$

Usually ships in 2-12 days

0

31

Simplicity 1706491SM

HOSE, Reservoir to Hydro, Vent, 52" Hose (12.5 HP Only)

$33.99

$

Usually ships in 2-12 days

0

31

Simplicity 1706490SM

HOSE, Reservoir to Hydro, Vent, 46" Hose (16 HP Only)

$21.99

$

Usually ships in 2-12 days

0

32

Simplicity 1706430SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 1921959SM

CAPSCREW, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

34

Simplicity 1702488SM

RESERVOIR ASSY. (Incl. Ref. Nos. 35, 36, 37)

$59.99

$

In Stock, only 1 left!

0

35

Simplicity 1700443

CAP

$

$

Not available

36

Simplicity 1700442SM

GASKET

$11.99

$

Usually ships in 2-12 days

0

37

Simplicity 1702488SM

RESERVOIR

$59.99

$

In Stock, only 1 left!

0

38

Simplicity 1920397SM

NUT, Hex Lock, Nylon, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1707053SM

RETAINER, Ball

$6.99

$

Usually ships in 2-12 days

0

40

Simplicity 1704665

SPRING

$

$

Not available

41

Simplicity 2860210SM

WASHER, Special, Nylon (Used on early models)

$4.49

$

In Stock, only 2 left!

0

42

Simplicity 1708317SM

SPACER

$13.99

$

Usually ships in 2-12 days

0
