1613 G (1691893) - AGCO Lawn Tractor, 12.5hp Transmission Group - Gear Parts Diagram

Lawn Tractor, 12.5hp

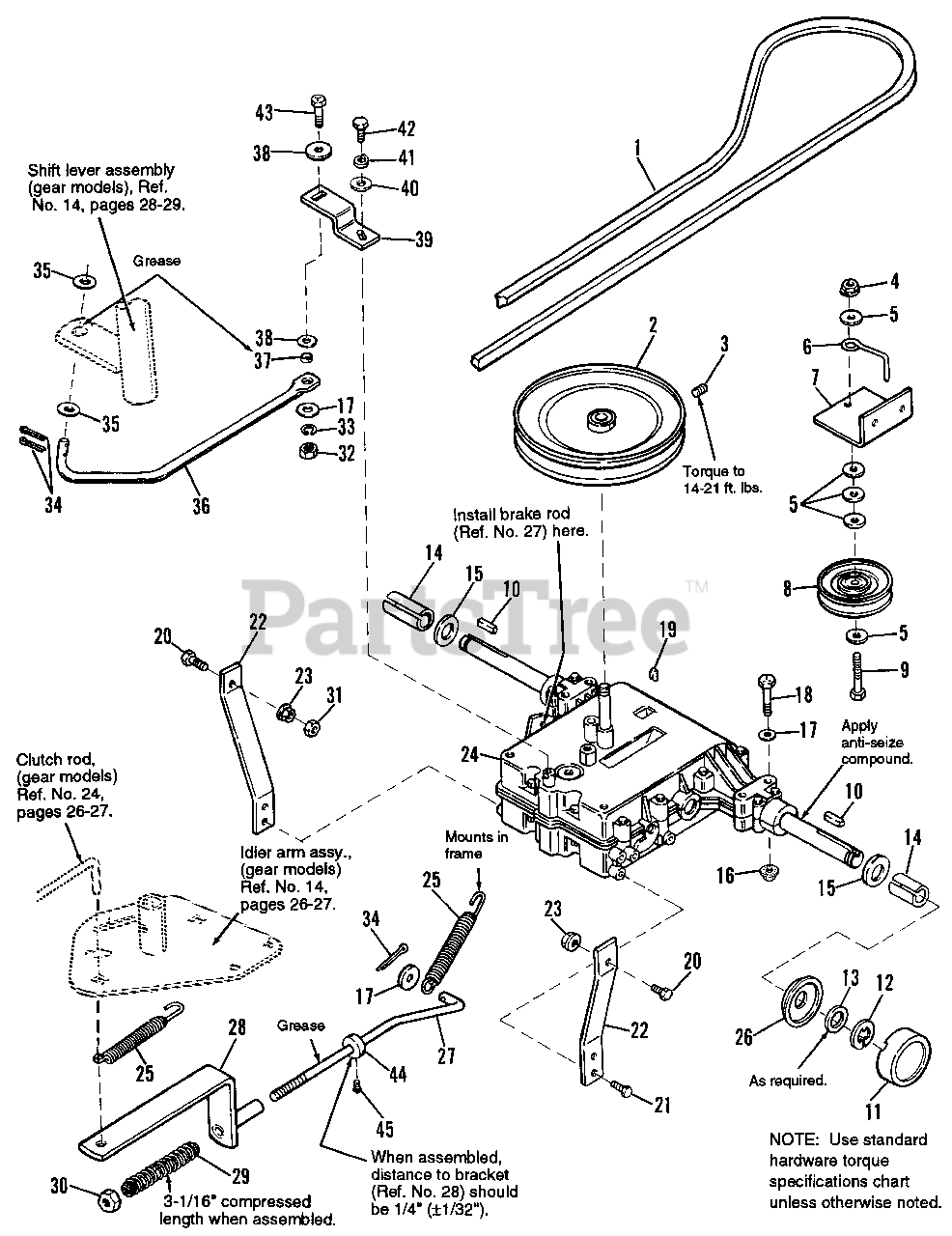

Transmission Group - Gear Parts Diagram

  • Title

1

Simplicity 1703836SM

"V" BELT

$45.99

$

In Stock, Qty 20+

0

2

Simplicity 1705482SM

PULLEY ASSY., Driven

$62.99

$

Usually ships in 2-12 days

0

3

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

4

Simplicity 1928352SM

NUT, Flange Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1678924

BELT STOP

$

$

Not available

7

Simplicity 1705463

BRACKET, Pulley

$

$

Not available

8

Simplicity 2174561SM

PULLEY, Idler ("V")

$53.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

10

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 1676519SM

HUBCAP

$8.49

$

In Stock, Qty 20+

0

12

Simplicity 2827794SM

"E" RING

$3.49

$

In Stock, Qty 16

0

13

Simplicity 1960114SM

WASHER (Rear Axle)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1667191SM

SPACER, Axle

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 1960160SM

WASHER

$4.99

$

In Stock, Qty 9

0

16

Simplicity 1935048SM

NUT, Lock, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

18

Simplicity 1921719SM

CAPSCREW, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

19

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

20

Simplicity 1930595SM

SCREW, Hex, Whiz, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

21

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

22

Simplicity 1705462

SUPPORT, Transmission

$

$

Not available

23

Simplicity 1927557SM

NUT, Hex, Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

24

TRANSMISSION, 5 Speed

$

$

Not available

25

Simplicity 1706553SM

SPRING, Ext.

$9.99

$

Usually ships in 2-12 days

0

26

Simplicity 1701435SM

RETAINER, Hubcap

$13.99

$

In Stock, only 1 left!

0

27

Simplicity 1714012SM

ROD, Brake

$10.99

$

Usually ships in 2-12 days

0

28

Simplicity 1705457

BRAKE ARM ASSY.

$

$

Not available

29

Simplicity 1663136SM

SPRING, Compression

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 1919438SM

NUT, Nylon, Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1928698SM

NUT, Hex, Jam Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1709198

ROD, Shift

$

$

Not available

37

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

38

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

39

Simplicity 1705500

LEVER, Shift

$

$

Not available

40

Simplicity 1960151SM

WASHER, Plain, 1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

41

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

42

Simplicity 1922234SM

CAPSCREW, Hex Hd., 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

43

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

44

Simplicity 1729276SM

SET COLLAR

$

$

Not available

45

Simplicity 1928804SM

SETSCREW, 1/4-20 x 3/8

$4.49

$

Usually ships in 2-12 days

0
