16106 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY MODEL 16264 Parts Diagram

Walk-Behind Mower

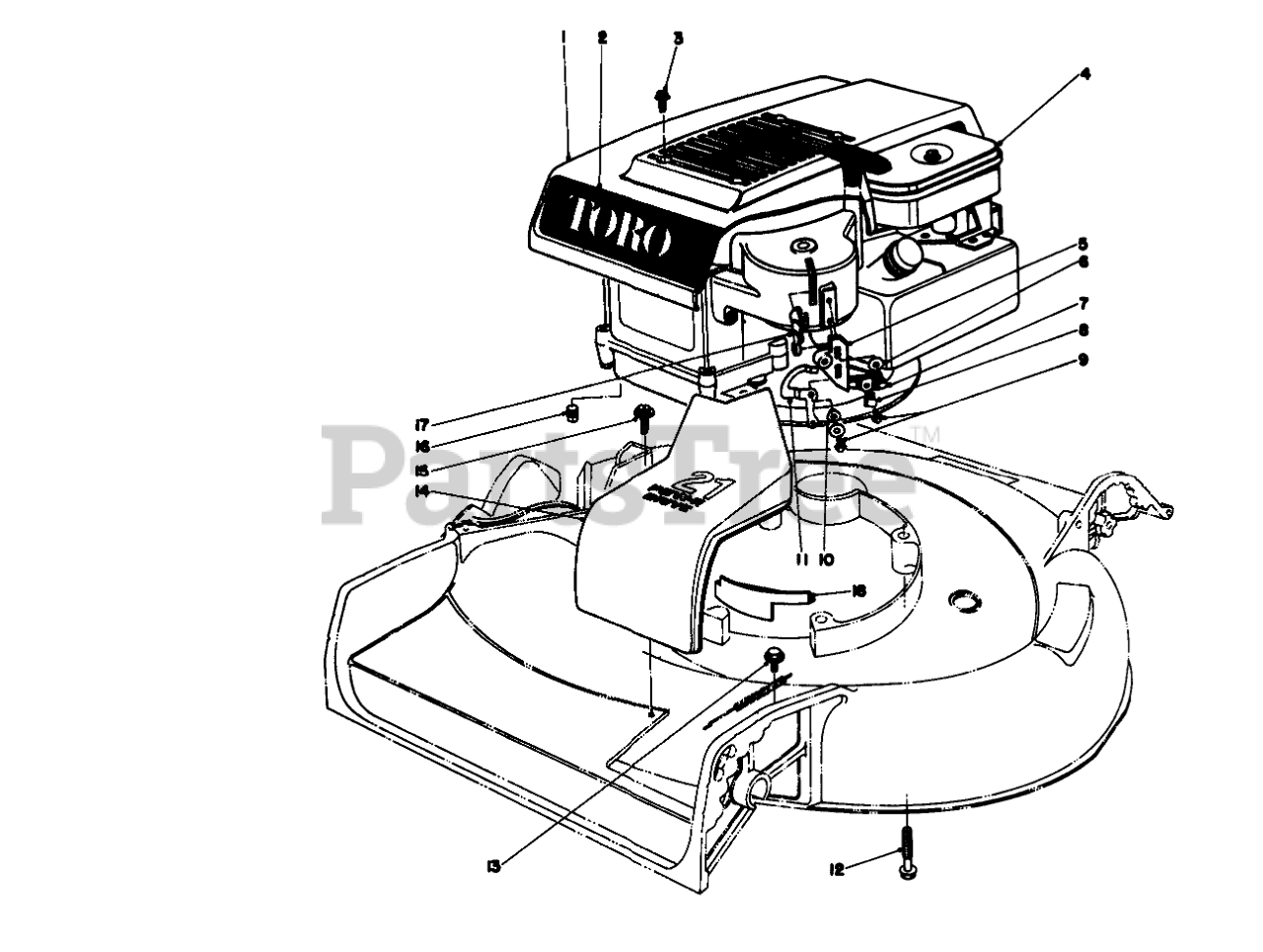

ENGINE ASSEMBLY MODEL 16264 Parts Diagram

  • Title

1

Toro 28-4720

SHROUD

$90.99

$

Usually ships in 3-6 days

0

2

Toro 28-4740

Decal-Toro

$

$

Not available

3

Toro 32104-84

Screw

$

$

Currently unavailable

4

Toro 221-545

Engine

$

$

Currently unavailable

5

Toro 27-6280

Block Cable & Pivot

$

$

Currently unavailable

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 2412-63

CLAMP

$

$

Not available

9

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

10

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

11

Toro 25-8150

CAM INTERLOCK

$

$

Not available

12

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

13

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

14

Toro 28-4730

BELT DRIVE COVER

$65.99

$

Usually ships in 3-6 days

0

15

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

16

Toro 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

17

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

18

Toro 27-7470

HOUSING CAP

$

$

Not available
