161-VH - Cub Cadet Engine Engine Assembly 161-VH Parts Diagram

Engine

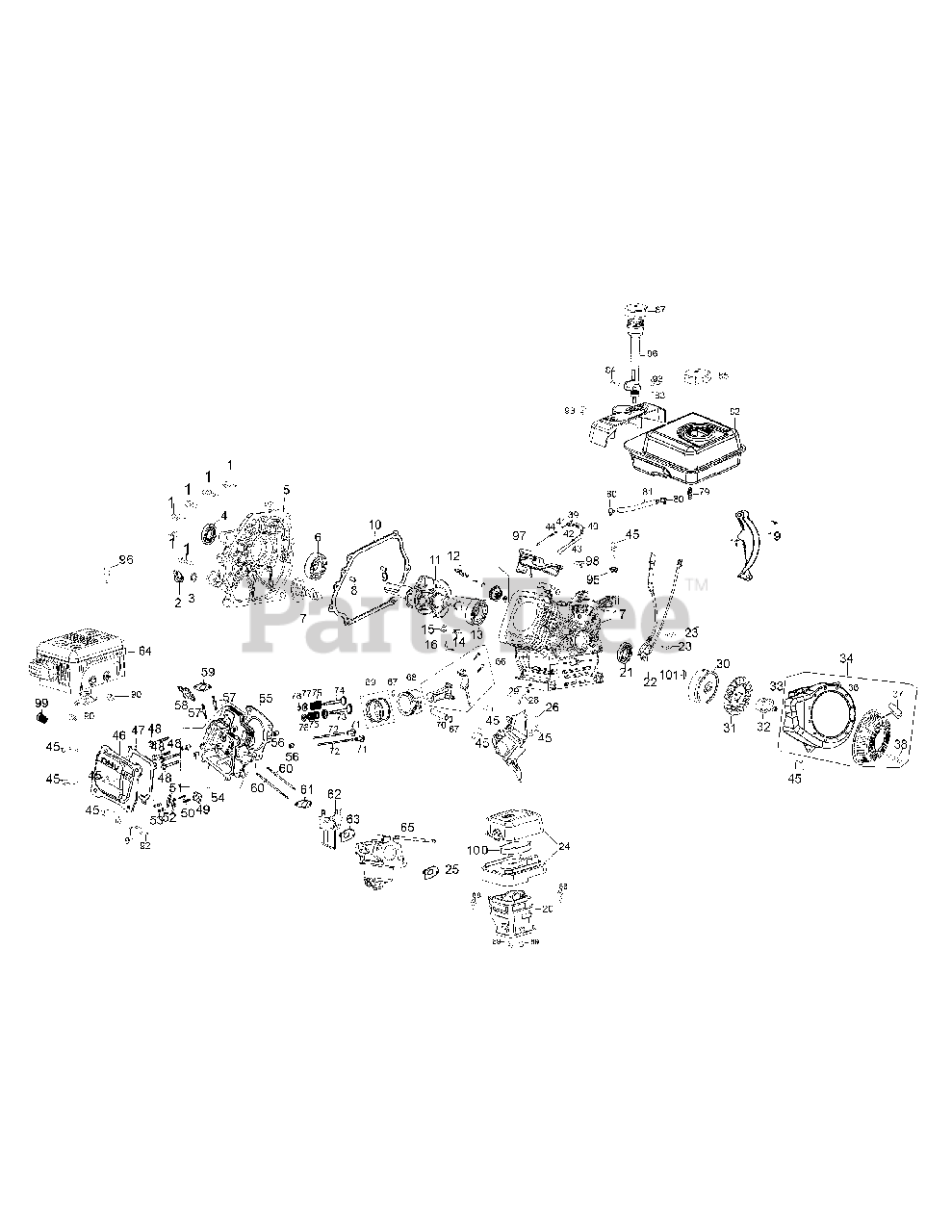

Engine Assembly 161-VH Parts Diagram

  • Title

1

Cub Cadet 710-04920

Bolt Flange ×28
(Superseded to 710-04931)

Note: Furnish 951-10902 Short Block

$6.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04920

Bolt Flange ×28
(Superseded to 710-04931)

Note: Furnish 951-11155 Crankcase Cover Kit

$6.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04920

Bolt Flange ×28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

2

Dipstick Comp

Note: Furnish 951-10902 Short Block

$

$

Not available

2

Dipstick Comp

Note: Furnish 951-11158 Oil Plug Assembly

$

$

Not available

2

Dipstick Comp

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

3

O-Ring

Note: Furnish 951-10902 Short Block

$

$

Not available

3

O-Ring

Note: Furnish 951-10922 Gasket Kit - Enternal

$

$

Not available

3

O-Ring

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

3

O-Ring

Note: Furnish 951-11158 Oil Plug Assembly

$

$

Not available

3

O-Ring

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

4

Oil Seal 25×41.25×6

Note: Furnish 951-10902 Short Block

$

$

Not available

4

Oil Seal 25×41.25×6

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

4

Oil Seal 25×41.25×6

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

4

Oil Seal 25×41.25×6

Note: Furnish 951-11156 Crankshaft Kit

$

$

Not available

5

Cover Comp Left Crankcase

Note: Furnish 951-10902 Short Block

$

$

Not available

5

Cover Comp Left Crankcase

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

6

Bearing 6205

Note: Furnish 951-10902 Short Block

$

$

Not available

6

Bearing 6205

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

6

Bearing 6205

Note: Furnish 951-11156 Crankshaft Kit

$

$

Not available

7

Camshaft Assy.

Note: Furnish 951-10902 Short Block

$

$

Not available

8

Cub Cadet 710-04092

Pin Dowel 7×14

Note: Furnish 951-10902 Short Block

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04092

Pin Dowel 7×14

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 715-04089

Pin Dowel 9×14

Note: Furnish 951-10902 Short Block

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 715-04089

Pin Dowel 9×14

$3.99

$

Usually ships in 3-6 days

0

10

Gasket Case Cover

Note: Furnish 951-10902 Short Block

$

$

Not available

10

Gasket Case Cover

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

10

Gasket Case Cover

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

11

Crankshaft Comp

Note: Furnish 951-10902 Short Block

$

$

Not available

11

Crankshaft Comp

Note: Furnish 951-11156 Crankshaft Kit

$

$

Not available

12

Governor Gear Kit

Note: Furnish 951-10902 Short Block

$

$

Not available

13

Radial Ball Bearing(6205)

Note: Furnish 951-10902 Short Block

$

$

Not available

13

Radial Ball Bearing(6205)

Note: Furnish 951-11157 Crankcase Kit

$

$

Not available

13

Radial Ball Bearing(6205)

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

13

Radial Ball Bearing(6205)

Note: Furnish 951-11156 Crankshaft Kit

$

$

Not available

14

Cub Cadet 714-04074

Pin Lock
(Superseded to 714-04078)

Note: Furnish 951-10902 Short Block

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 714-04074

Locking Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

15

O-Ring

Note: Furnish 951-10902 Short Block

$

$

Not available

15

O-Ring

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

15

O-Ring

Note: Furnish 951-11157 Crankcase Kit

$

$

Not available

16

Governor Arm

Note: Furnish 951-10902 Short Block

$

$

Not available

17

Crankcase Comp.

Note: Furnish 951-10902 Short Block

$

$

Not available

17

Crankcase Comp.

Note: Furnish 951-11157 Crankcase Kit

$

$

Not available

18

Cub Cadet 951-11102

Flywheel Baffle

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04918

Flange Bolt

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-10806

Intake Heatening Pipe Seat

$22.99

$

In Stock, Qty 7

0

21

Oil Seal 22×35×7

Note: Furnish 951-10902 Short Block

$

$

Not available

21

Oil Seal 22×35×7

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

21

Oil Seal 22×35×7

Note: Furnish 951-11157 Crankcase Kit

$

$

Not available

21

Oil Seal 22×35×7

Note: Furnish 951-11155 Crankcase Cover Kit

$

$

Not available

21

Oil Seal 22×35×7

Note: Furnish 951-11156 Crankshaft Kit

$

$

Not available

22

Cub Cadet 951-10916

Ignition Coil

$91.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-04919

Flange Bolt

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-10818

Air Cleaner Housing Assembly

$38.99

$

In Stock, only 1 left!

0

25

Packing

Note: Furnish 951-10902 Short Block

$

$

Not available

25

Packing

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

26

Cub Cadet 951-11151

Air Baffle

$

$

Not available

28

Bolt Drain Plug

Note: Furnish 951-10902 Short Block

$

$

Not available

28

Cub Cadet 710-04906

Drain Plug

$6.99

$

In Stock, Qty 12

0

29

Cub Cadet 736-04440

Washer.10×16×1.5
(Superseded to 736-04440A)

Note: Furnish 951-10902 Short Block

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 736-04440

Washer.10×16×1.5
(Superseded to 736-04440A)

Note: Furnish 951-10923 Gasket Kit Complete

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 736-04440

Washer.10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

30

Cub Cadet 951-10908

Flywheel

$112.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 951-10910

Cooling Fan

$50.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-04209

Flywheel Nut
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

36

Cub Cadet 951-11107

Fan Housing Cover

$29.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 951-10914

Recoil Starter Assembly

$75.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-04914

Bolt

$4.49

$

In Stock, only 3 left!

0

39

Cub Cadet 712-04211

Nut
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

40

Cub Cadet 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-04908

Bolt

$6.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-10954

Throttle Return Spring

$6.49

$

In Stock, only 2 left!

0

43

Cub Cadet 951-11152

Governor Rod

$6.99

$

In Stock, Qty 5

0

44

Cub Cadet 951-10915

Governor Return Spring

$6.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-04916

Bolt Flange 6×14

Note: Furnish 951-10922 Gasket Kit - Enternal

$4.49

$

In Stock, Qty 12

0

45

Cub Cadet 710-04916

Bolt Flange 6×14

$4.49

$

In Stock, Qty 12

0

46

Cover Comp Head

Note: Furnish 951-10922 Gasket Kit - Enternal

$

$

Not available

47

Gasket Cover Head

Note: Furnish 951-10902 Short Block

$

$

Not available

47

Gasket Cover Head

Note: Furnish 951-10922 Gasket Kit - Enternal

$

$

Not available

47

Gasket Cover Head

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

47

Gasket, Cover Head

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

47

Gasket, Cover Head

$

$

Not available

48

Cub Cadet 710-04922

Bolt Flange 8×50

Note: Furnish 951-10922 Gasket Kit - Enternal

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-04922

Bolt Flange 8×50

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-04922

Bolt Flange 8×50

$4.49

$

Usually ships in 3-6 days

0

49

Plate Push Rod Guide

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

50

Cub Cadet 710-04902

Bolt Pivot

Note: Furnish 951-10903 Cylinder Head Assembly

$6.99

$

In Stock, only 4 left!

0

50

Cub Cadet 710-04902

Pivot Bolt

$6.99

$

In Stock, only 4 left!

0

51

Arm Valve Rocker

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

52

Cub Cadet 751-11123

Adjusting Nut ,Valve

Note: Furnish 951-10903 Cylinder Head Assembly

$10.99

$

In Stock, only 4 left!

0

52

Cub Cadet 751-11123

Valve Adjusting Nut

$10.99

$

In Stock, only 4 left!

0

53

Cub Cadet 751-11124

Nutt Pivot Locking

Note: Furnish 951-10903 Cylinder Head Assembly

$9.49

$

In Stock, only 2 left!

0

53

Cub Cadet 751-11124

Pivot Locking Nut

$9.49

$

In Stock, only 2 left!

0

55

Gasket, Cylinder Head

Note: Furnish 951-10902 Short Block

$

$

Not available

55

Gasket Cylinder Head

Note: Furnish 951-10922 Gasket Kit - Enternal

$

$

Not available

55

Gasket Cylinder Head

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

55

Gasket Cylinder Head

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

55

Gasket, Cylinder Head

$

$

Not available

56

Cub Cadet 715-04090

Dowel Pin
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

57

Cub Cadet 951-10657

Muffler Stud Assembly

$10.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

59

Packing

Note: Furnish 951-10902 Short Block

$

$

Not available

59

Packing

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

59

Packing

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

60

Cub Cadet 710-04909

Stud Bolt

$4.49

$

Usually ships in 3-6 days

0

61

Packing,Insulator

Note: Furnish 951-10902 Short Block

$

$

Not available

61

Packing,Insulator

Note: Furnish 951-10922 Gasket Kit - Enternal

$

$

Not available

61

Packing,Insulator

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

61

Packing,Insulator

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

62

Packing,Insulator

Note: Furnish 951-10902 Short Block

$

$

Not available

62

Packing,Insulator

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

62

Packing,Insulator

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

63

Packing

Note: Furnish 951-10922 Gasket Kit - Enternal

$

$

Not available

63

Packing

Note: Furnish 951-10923 Gasket Kit Complete

$

$

Not available

63

Packing

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

64

Cub Cadet 951-10901

Muffler Complete

$70.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-10921

Carburetor Assembly
(Superseded to 951-05519)

$98.99

$

Usually ships in 3-6 days

0

66

Connecting Rod Comp

Note: Furnish 951-10902 Short Block

$

$

Not available

67

Clip Piston Pin 18mm

Note: Furnish 951-10902 Short Block

$

$

Not available

68

Piston

Note: Furnish 951-10902 Short Block

$

$

Not available

69

Ring Set Comp,Piston

Note: Furnish 951-10902 Short Block

$

$

Not available

70

Pin Piston

Note: Furnish 951-10902 Short Block

$

$

Not available

71

Lifter Valve

Note: Furnish 951-10902 Short Block

$

$

Not available

72

Cub Cadet 951-10913

Push Rod Kit
(Superseded to 951-12614)

$15.99

$

Usually ships in 3-6 days

0

73

Valve Inlet

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

73

Valve Inlet

Note: Furnish 951-10912 Valve Kit

$

$

Not available

74

Valve Exhaust

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

74

Valve Exhaust

Note: Furnish 951-10912 Valve Kit

$

$

Not available

75

Spring Valve

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

76

Intake Valve Spring Seat

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

77

Exhaust Valve Spring Seat

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

78

Adjuster Ex. Valve

Note: Furnish 951-10903 Cylinder Head Assembly

$

$

Not available

79

Cub Cadet 951-10651

Fuel Tank Filter

$15.99

$

In Stock, Qty 16

0

80

Clip,Tube

Note: Furnish 951-10918 Fuel Line Kit

$

$

Not available

81

Tube,Fuel

Note: Furnish 951-10918 Fuel Line Kit

$

$

Not available

82

Cub Cadet 951-10920

Fuel Tank

$

$

Not available

83

Cub Cadet 951-11128

Engine Cover

$10.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 710-04928

Bolt
(Superseded to 710-04915)

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 951-10917

Cap Comp, Fuel
(Superseded to 951-10917B)

$16.99

$

In Stock, only 1 left!

0

86

Cub Cadet 951-10656

Dipstick Tube
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-10655

Dipstick Assembly
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 710-04948

Bolt

$

$

Not available

89

Cub Cadet 710-04949

Bolt
(Superseded to 712-04213)

$6.99

$

In Stock, only 4 left!

0

90

Cub Cadet 712-04214

Flange Nut

$4.49

$

In Stock, Qty 5

0

91

Cub Cadet 726-04101

Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 731-07059

Breather Hose

$6.49

$

In Stock, only 1 left!

0

93

Cub Cadet 710-04950

Panel Bolt

$

$

Not available

95

Cub Cadet 712-04212

Nut
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

96

Cub Cadet 710-04927

Bolt

$

$

Not available

97

Cub Cadet 951-11071

Throttle Control Assembly

$

$

Not available

98

Cub Cadet 951-11067

Throttle Control Knob

$3.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-10829

Spark Arrestor

$

$

Not available

100

Cub Cadet 951-10794

Air Cleaner

$14.99

$

In Stock, Qty 20+

0

101

Cub Cadet 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

Cub Cadet 951-10902

Short Block

Note: Not Shown

$

$

Not available

Cub Cadet 951-10922

Gasket Kit External

Note: Not Shown

$

$

Not available

Cub Cadet 951-10923

Gasket Kit Complete

Note: Not Shown

$

$

Not available

Cub Cadet 951-10903

Cylinder Head Assembly
(Superseded to 951-10949A)

Note: Not Shown

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10918

Fuel Line Kit

Note: Not Shown

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10912

Valve Kit

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11157

Crankcase Kit

Note: Not Shown

$

$

Not available

Cub Cadet 951-11158

Oil Plug Assembly

Note: Not Shown

$

$

Not available

Cub Cadet 951-11155

Crankcase Cover Kit

Note: Not Shown

$

$

Not available

Cub Cadet 951-11156

Crankshaft Kit

Note: Not Shown

$

$

Not available

Cub Cadet 951-10925

Cylinder Head Kit

Note: Not Shown

$

$

Not available

Cub Cadet 951-11048

Carburetor Kit

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10826

Recoil Spring and Pulley

Note: Not Shown

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11177

Choke Lever
(Superseded to 951-12515)

Note: Not Shown

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 952Z161-VH

Complete Engine

Note: Not Shown

$500.99

$

Usually ships in 3-6 days

0
