16077 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY MODEL 16297 Parts Diagram

Walk-Behind Mower

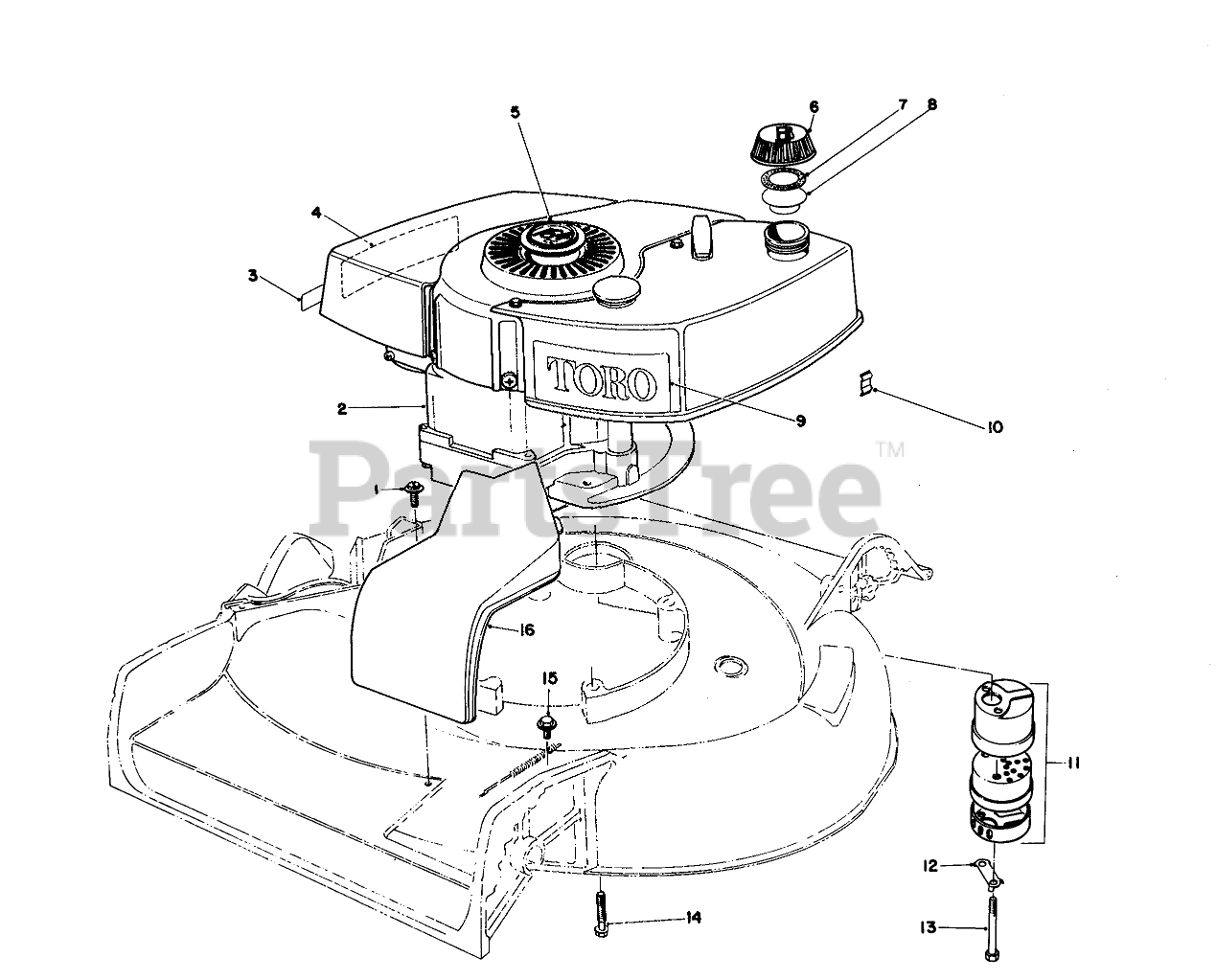

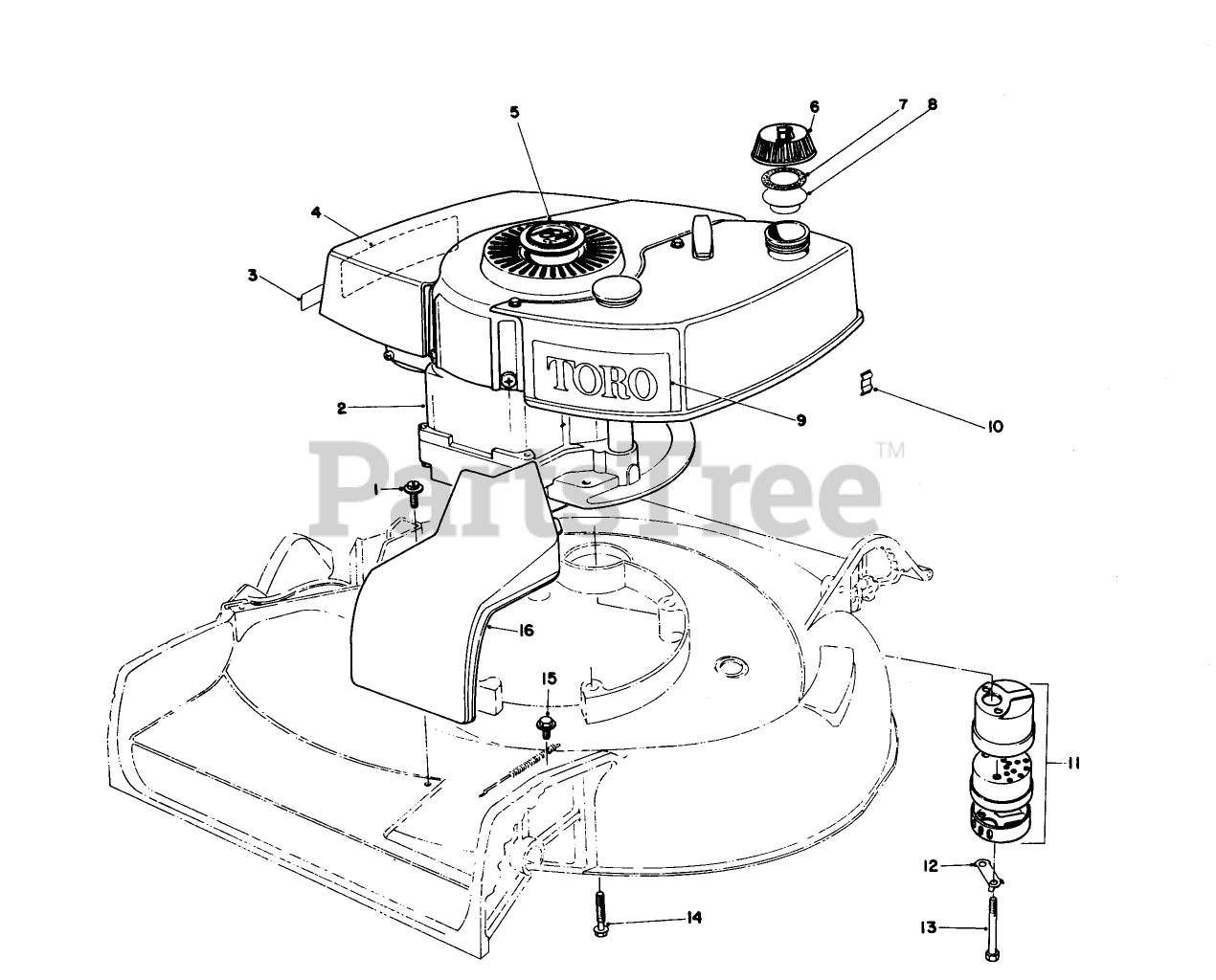

ENGINE ASSEMBLY MODEL 16297 Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

2

Toro 221-721

Engine

$

$

Currently unavailable

3

Toro 40-2960

Decal-Primer Bulb

$

$

Not available

4

Toro 40-2950

Decal Maintenance

$

$

Not available

5

Toro 38-1482

Plug Button

$

$

Not available

6

Toro 27-7872

Gas Cap Assembly (Incl.Ref. #7 & 8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 40-5460

Decal Toro

$

$

Not available

10

Toro 2210-247

Clip Conduit

$

$

Not available

11

Toro 5-4769

Muffler (Incl. Ref. #12 & 13)

$62.99

$

Usually ships in 3-6 days

0

Toro 39-5930

Spark Arrester Muffler-Optional (Incl.Ref. #12 & 13)

Note: Not illustrated

$

$

Not available

12

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

13

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

14

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 284731

Cover-Belt Drive

$

$

Currently unavailable
