16077 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY MODEL 16297 Parts Diagram

Walk-Behind Mower

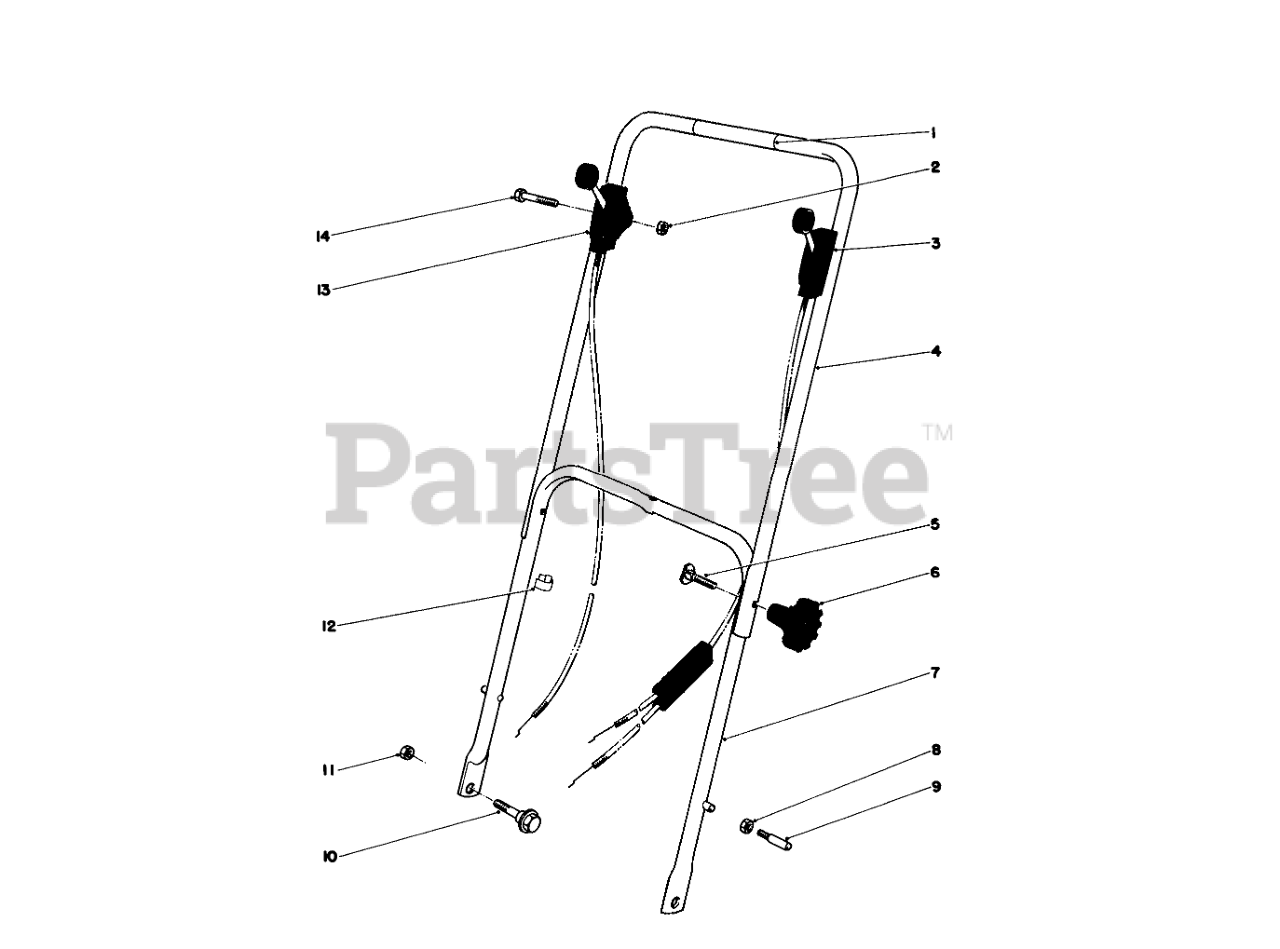

HANDLE ASSEMBLY MODEL 16297 Parts Diagram

  • Title
1

Toro 40-2940

Danger-Decal

$

$

Not available

2

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

3

Toro 40-5530

Traction Control
(Superseded to 46-6030)

$

$

Not available

4

Toro 38-1271

Upper Handle

$

$

Not available

5

Toro 6-6330

HANDLE SCREW

$

$

Not available

6

$17.99

$

In Stock, only 2 left!

0

7

Toro 38-1260

LOWER HANDLE ASM SP

$230.99

$

Usually ships in 3-6 days

0

8

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts.

$1.49

$

Usually ships in 3-6 days

0

9

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts.

$

$

Not available

10

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

11

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

12

$

$

Not available

13

Toro 40-5520

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

14

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
