16077 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HOUSING ASSEMBLY MODEL 16077 AND 16165 Parts Diagram

Walk-Behind Mower

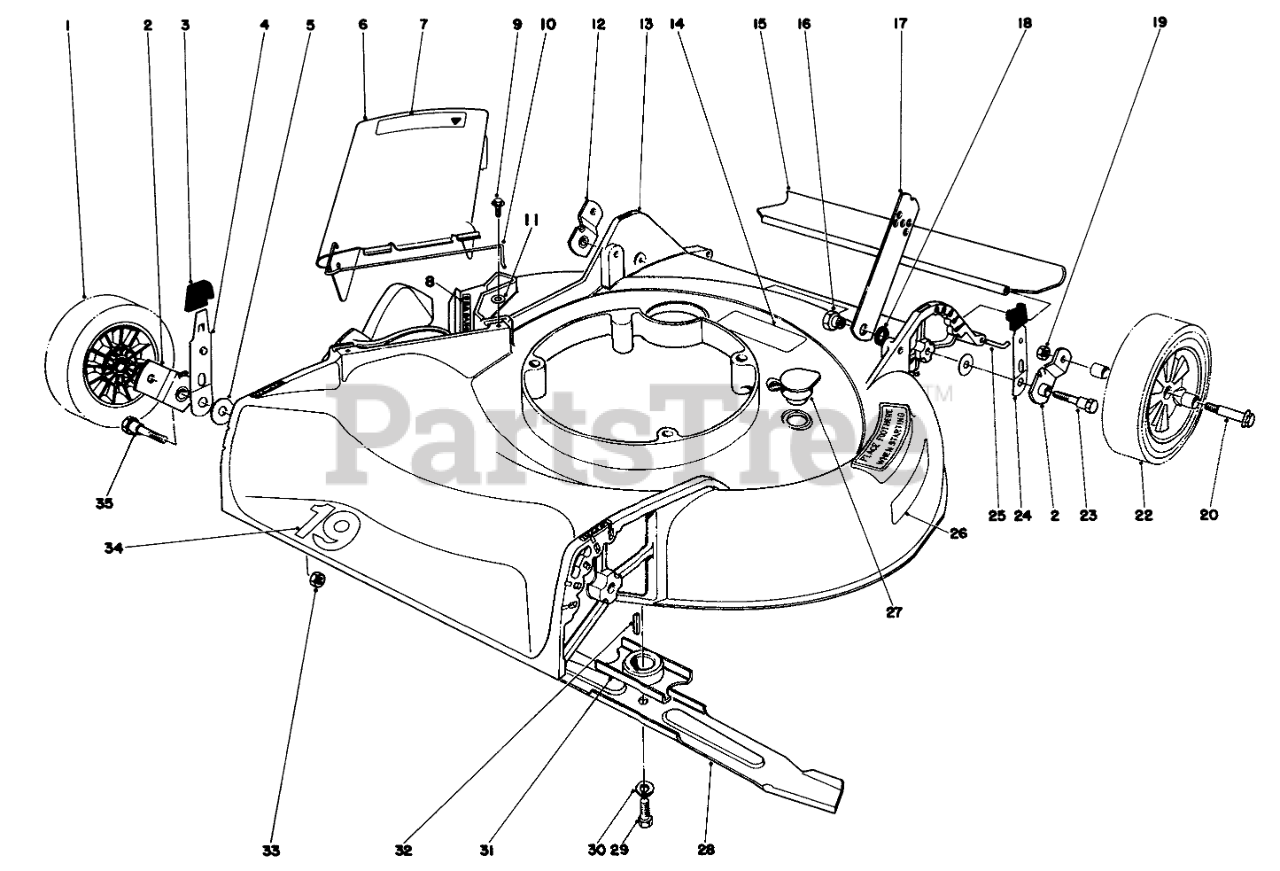

HOUSING ASSEMBLY MODEL 16077 AND 16165 Parts Diagram

  • Title

1

Toro 27-6210

WHEEL TIRE ASM 7 IN

$

$

Not available

Toro 27-6200

WHEEL TIRE ASM 8 IN

Note: Not illustrated

$

$

Not available

2

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 25-8000

SPRING ARM ASM

$

$

Not available

5

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

6

Toro 27-7814

Deflector-Cover Assembly (Incl. Ref. #7 & 10)
(Superseded to 13-5909)

$129.99

$

Usually ships in 3-6 days

0

7

Toro 40-2780

Decal-Caution

$

$

Not available

8

Toro 40-2760

Decal-Danger

$

$

Not available

9

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

10

Toro 20-2640

SPRING HINGE

$

$

Not available

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

13

Toro 20-2623

Housing (Model 16077)

$

$

Currently unavailable

Toro 20-2613

Housing (Model 16165)

Note: Not illustrated

$

$

Not available

14

Toro 40-3040

Decal-Warning
(Superseded to 47-7410)

$

$

Not available

15

Toro 22-4960

SHIELD - TRAILING

$91.99

$

Usually ships in 3-6 days

0

Toro 22-4950

REAR SAFETY SHIELD 21

Note: Not illustrated

$

$

Not available

16

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

17

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

Toro 27-7080

HANDLE LATCH

Note: Not illustrated

$

$

Not available

18

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

22

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

23

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

24

Toro 27-7240

SPRING ARM ASM

$

$

Not available

Toro 25-8000

SPRING ARM ASM

Note: Not illustrated

$

$

Not available

25

Toro 33-3200

SHIELD ROD

$

$

Not available

Toro 33-3201

SHIELD ROD

Note: Not illustrated

$

$

Not available

26

Toro 40-2730

Decal-Step

$

$

Not available

27

Toro 6-4500

WASHOUT PLUG

$

$

Not available

28

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

Note: Not illustrated

$41.99

$

In Stock, only 2 left!

0

29

Toro 3-5246

SPECIAL SCREW

$

$

Not available

30

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

31

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

32

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

33

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

34

Toro 40-5550

Decal-19" (Model 16077)

$

$

Not available

Toro 36-1030

Decal 21"

Note: Not illustrated

$

$

Not available

35

Toro 25-3440

PIVOT SCREW

$

$

Not available

Toro 8-6429

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
