16073 - Toro Whirlwind Walk-Behind Mower (SN: 005000001 - 005999999) (1975) GEAR BOX ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

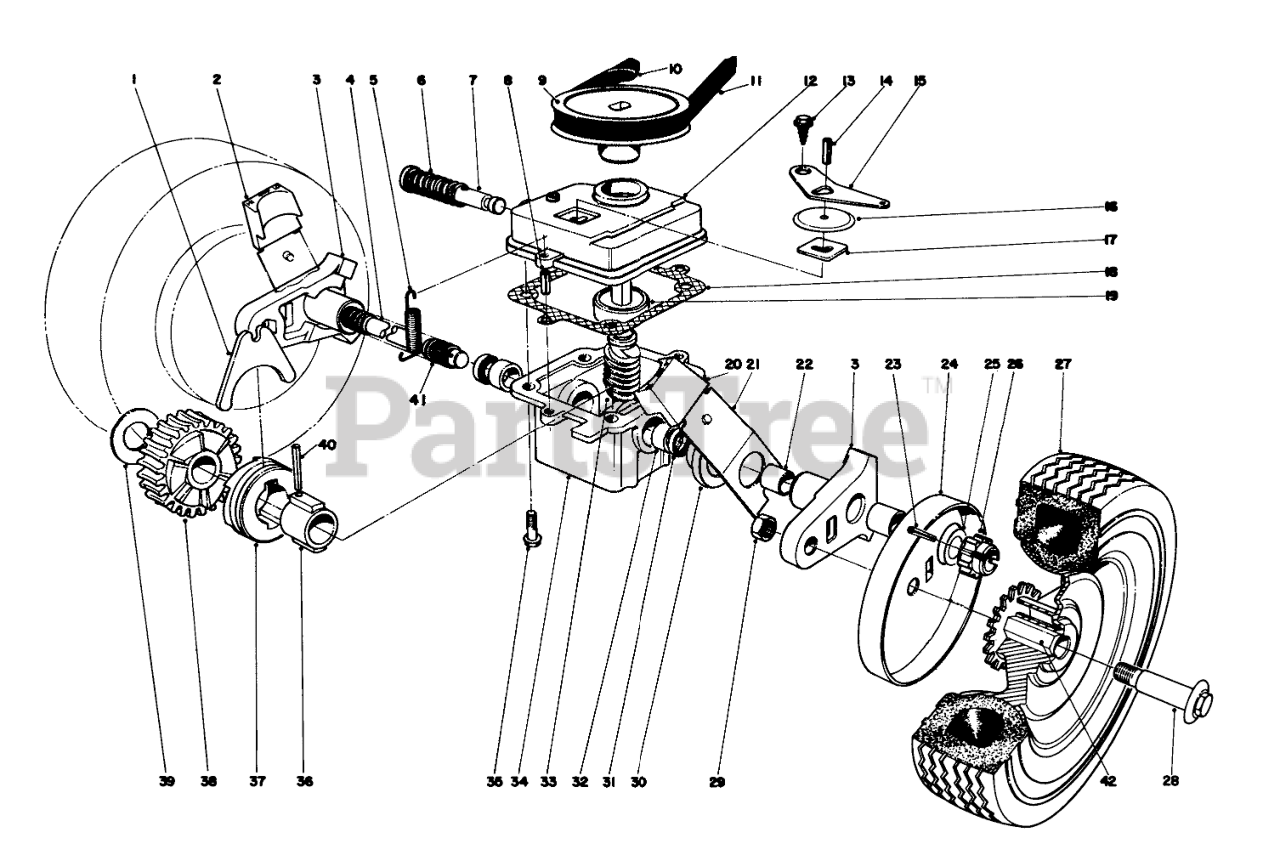

GEAR BOX ASSEMBLY Parts Diagram

  • Title
1

Toro 5-3247

SHIFTER FORK

$17.99

$

Usually ships in 3-6 days

0

2

Toro 6-6220

Arm Knob

$

$

Currently unavailable

3

Toro 18-9710

Pivot Arm (Incl. Ref. No. 22)

$

$

Not available

4

Toro 18-9730

Drive Shaft
(Superseded to 37-9440)

$155.99

$

Usually ships in 3-6 days

0

5

Toro 17-4490

TENSION SPRING

$18.99

$

In Stock, only 1 left!

0

6

Toro 3-0731

SPRING

$9.99

$

Usually ships in 3-6 days

0

7

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$40.99

$

Usually ships in 3-6 days

0

8

Toro 32121-1

3/16 X 1/2 ROLL PIN

$3.99

$

In Stock, Qty 5

0

9

Toro 18-9760

PULLEY

$66.99

$

Usually ships in 3-6 days

0

10

Toro 3290-346

PUSH-ON 93-3236

$7.99

$

Usually ships in 3-6 days

0

11

Toro 5-4505

V BELT

$

$

Not available

12

Toro 5-3283

GEAR CASE COVER

$

$

Not available

13

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-23

PIN-ROLL

$

$

Not available

15

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

16

Toro 3-2615

TRANS DUST COVER

$

$

Not available

17

Toro 34681

Latch Plate

$

$

Currently unavailable

18

Toro 3-0734

GASKET

$8.99

$

Usually ships in 3-6 days

0

19

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

20

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 8

0

21

Toro 3-2640

Spring Arm

$

$

Not available

22

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

23

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

24

Toro 18-9820

WHEEL COVER

$37.99

$

Usually ships in 3-6 days

0

25

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

26

Toro 18-9690

Pinion
(Superseded to 99-2532)

$13.99

$

Usually ships in 3-6 days

0

27

Toro 11-9470

Bushing
(Superseded to 11-1279)

$

$

Not available

28

$

$

Not available

29

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

30

Toro 3-2646

End Cap

$

$

Currently unavailable

31

Toro 253-86

Seal
(Superseded to 47-7260)

$8.49

$

In Stock, only 2 left!

0

32

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

33

Toro 18-9700

WORM SHAFT

$407.99

$

Usually ships in 3-6 days

0

34

Toro 5-4459

Gear Case (Incl. Ref. 31-32)

$

$

Not available

35

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

36

Toro 3-0721

SLEEVE

$

$

Not available

37

Toro 19-5660

CLUTCH JAW

$39.99

$

Usually ships in 3-6 days

0

38

$

$

Not available

39

Toro 3-0724

THRUST WASHER

$

$

Not available

40

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

41

Toro 24-7920

COVER-SHAFT, DRIVE

$9.99

$

Usually ships in 3-6 days

0

42

Toro 11-9530

WHEEL BUSHING

$

$

Not available

Toro 18-9780

Gear Case Complete

Note: Not illustrated

$

$

Not available
