16073 - Toro Whirlwind Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HOUSING AND ENGINE ASSEMBLY - MODEL 16273 Parts Diagram

Whirlwind Walk-Behind Mower

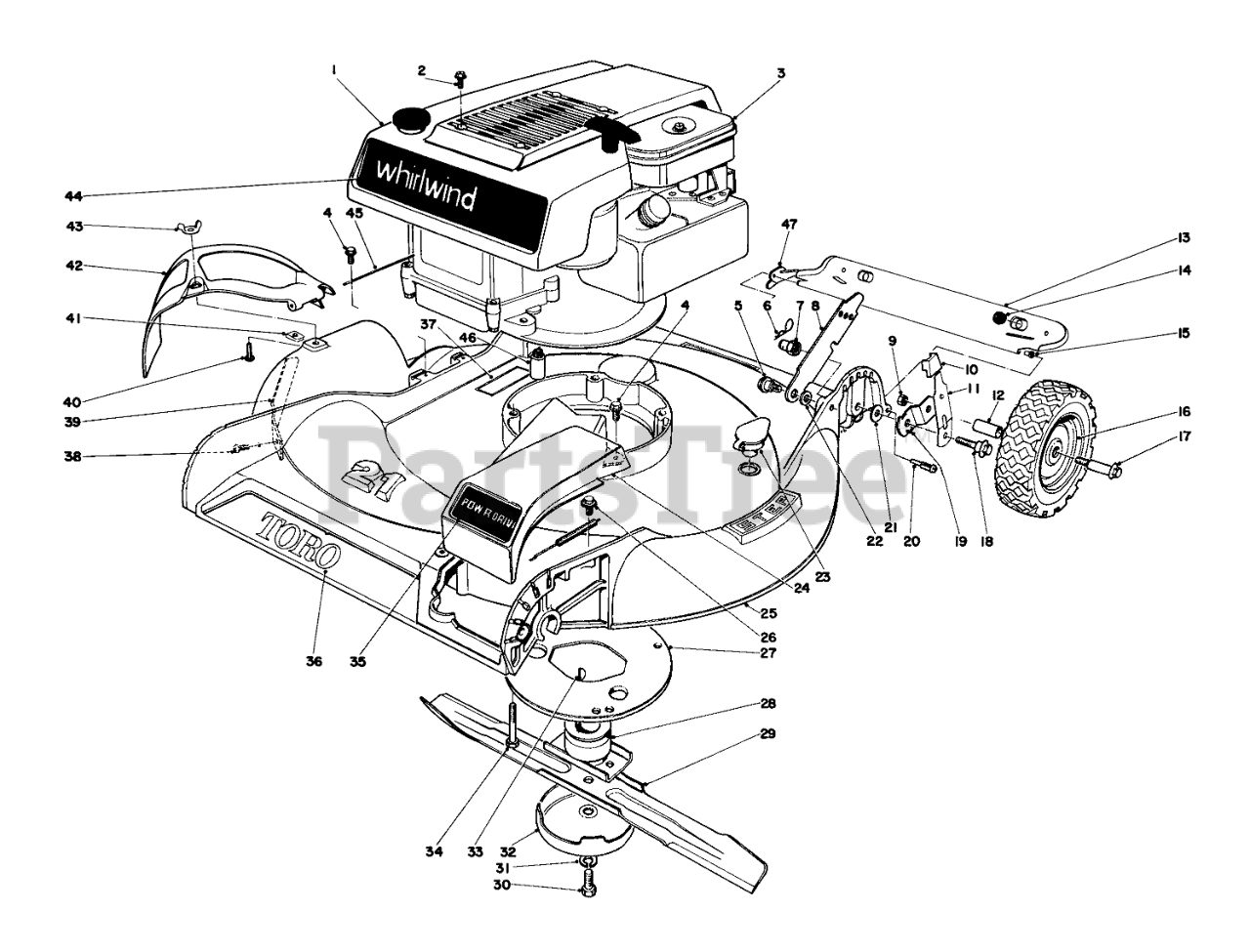

HOUSING AND ENGINE ASSEMBLY - MODEL 16273 Parts Diagram

  • Title

1

Toro 12-2350

Shroud

$

$

Currently unavailable

2

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

3

Toro 221-383

Engine

$

$

Currently unavailable

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

6

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

7

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

10

Toro 6-6220

Arm Knob

$

$

Currently unavailable

Toro 6-6230

Arm Knob
(Superseded to 25-7740)

Note: Not illustrated

$4.99

$

In Stock, Qty 20+

0

11

Toro 18-9590

Spring Arm

$

$

Not available

12

Toro 3-2664

Bushing

$

$

Not available

13

Toro 19-5780

Rear Safety Shield (Incl. Ref. #14 & 15)
(Superseded to 28-3780)

$

$

Not available

14

Toro 5-6450

SKID BUTTON

$

$

Not available

15

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

16

Toro 12-2620

Rear Wheel w/Tire (Incl. Ref. #12)
(Superseded to 99-5256)

$

$

Not available

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 12-2440

PIVOT SCREW

$21.99

$

In Stock, only 1 left!

0

19

Toro 18-9600

Pivot Arm

$

$

Currently unavailable

20

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

23

Toro 6-4500

WASHOUT PLUG

$

$

Not available

24

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

25

Toro 5-5289

Housing

$

$

Currently unavailable

26

Toro 32140-69

Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 6

0

27

Toro 19-4040

Grass Guard

$

$

Not available

28

Toro 8-5370

BLADE RETAINER WA

$111.99

$

Usually ships in 3-6 days

0

29

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

30

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

32

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

33

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

34

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

35

Toro 12-2430

Decal Power Drive

$

$

Not available

36

Toro 18-8960

Decal Toro

$

$

Currently unavailable

37

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

38

Toro 32140-90

Screw

$

$

Currently unavailable

39

Toro 12-2990

Bar Safety

$

$

Not available

40

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

41

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

42

Toro 12-2270

Deflector
(Superseded to 71-8640)

$

$

Not available

43

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

44

Toro 18-8970

Decal Whirlwind

$

$

Currently unavailable

45

Toro 3-2644

HINGE PIN

$

$

Not available

46

Toro 19-4030

OIL DRAIN EXTENSION

$

$

Not available

47

Toro 19-5680

Restraint R.H.

$

$

Not available

Toro 19-5740

Restraint L.H.

Note: Not illustrated

$

$

Not available

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available
