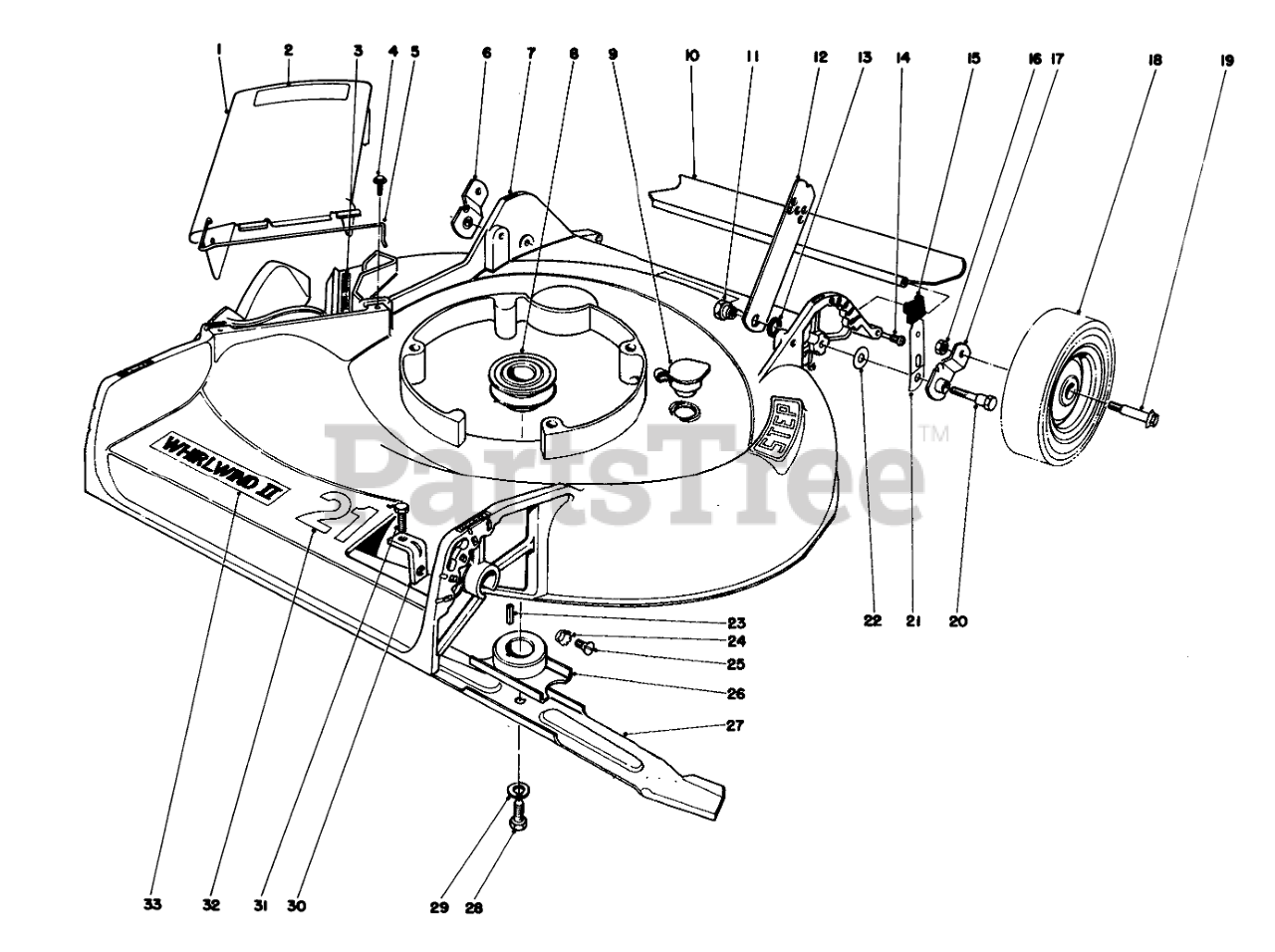

16067 - Toro Whirlwind II Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY MODEL 16287 Parts Diagram

Whirlwind II Walk-Behind Mower

HOUSING ASSEMBLY MODEL 16287 Parts Diagram

  • Title
1

Toro 27-7810

Deflector Assembly (Incl. Ref. 2 & 5)
(Superseded to 13-4049)

$

$

Not available

2

Toro 20-4330

Caution Decal

$

$

Not available

3

Toro 22-7350

Decal

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 6-7409

Housing

$

$

Not available

8

Toro 21-5580

DRIVER PULLEY

$

$

Not available

9

Toro 6-4500

WASHOUT PLUG

$

$

Not available

10

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

11

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

12

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

13

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

14

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

15

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

16

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

17

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

18

Toro 174120

Wheel & Tire Assembly

$

$

Currently unavailable

19

$

$

Not available

20

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

21

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

23

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

24

Toro 3255-12

Lockwasher

$

$

Not available

25

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

26

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

27

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 2 left!

0

28

Toro 3-5246

SPECIAL SCREW

$

$

Not available

29

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

30

Toro 25-7560

Bracket-Gear Box

$

$

Not available

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 284750

Decal 21"

$

$

Currently unavailable

33

Toro 27-6270

Decal Whirlwind

$

$

Not available
