1606 - Cub Cadet Garden Tractor Flywheel & Cranking Motor Parts Diagram

Garden Tractor

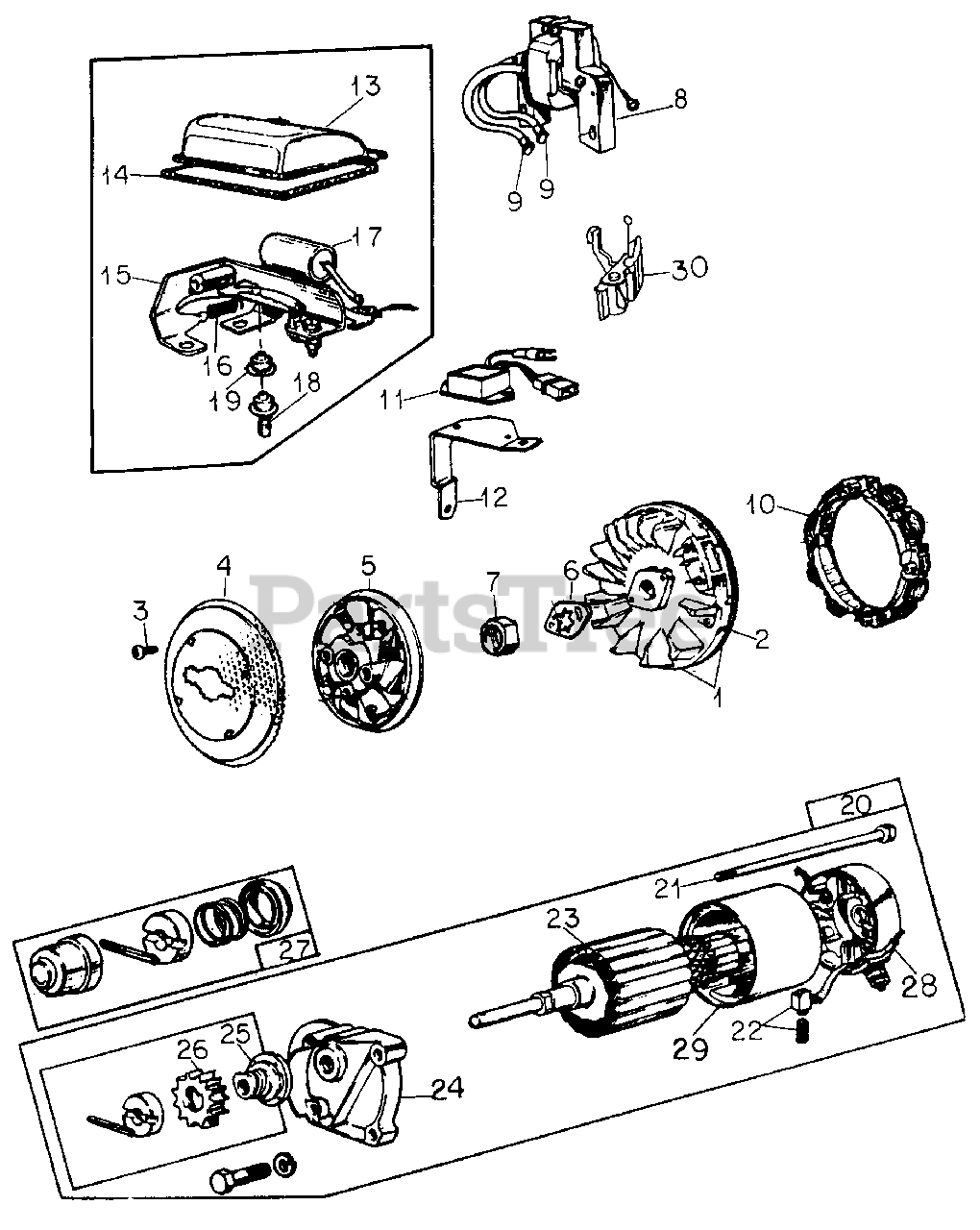

Flywheel & Cranking Motor Parts Diagram

  • Title

1

Cub Cadet IH-78223-C1

Flywheel w/Ring Gear Assy

$

$

Not available

2

Cub Cadet BS-391362

Gear, Flywheel Ring

$

$

Not available

3

Cub Cadet BS-93808

Screw, Flywheel Screen
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-223008

Screw, Flywheel

$

$

Not available

5

Cub Cadet BS-212418

Fan, Booster

Note: (Use with original engine)

$45.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-213472

Fan Booster

Note: (Use with replacement engine)

$

$

Not available

Cub Cadet IH-78227-C1

Bolt, Booster Mtg

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-78228-C1

Lock, Flywheel

$

$

Not available

7

Cub Cadet BS-231247

Nut, Flywheel

Note: (582 w/Serial No. 700,000 and Below)

$3.49

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-231247

Nut, Flywheel

Note: (582 w/Serial No. 700,001 and Above)

$3.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-392329

Armature Assy
(Superseded to BS-590781)

Note: (582 w/Serial No. 700,000 and Below)

$75.99

$

In Stock, Qty 10

0

8

Cub Cadet BS-394988

Armature Assy, Magnetron Ignition
(Superseded to BS-590781)

Note: (582 w/Serial No. 700,001 and Above)

$75.99

$

In Stock, Qty 10

0

Cub Cadet BS-93381

Screw, Armature Mtg

$

$

Not available

9

Cub Cadet BS-221798

Terminal, Mag. Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-393295

Stator, Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

Cub Cadet BS-93621

Screw, Stator Mtg
(Superseded to BS-691183)

$

$

Not available

11

Cub Cadet BS-394890

Regulator, Alternator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

Cub Cadet BS-93343

Screw, Mtg
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

12

Cub Cadet IH-78236-C1

Bracket, Regulator Mounting

$

$

Not available

13

Cub Cadet IH-78237-C1

Cover, Breaker Points

Note: (582 w/Serial No. 700,001 and Below)

$

$

Currently unavailable

14

Cub Cadet BS-271039

Gasket, Cover

Note: (582 w/Serial No. 700,000 and Below)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet IH-78239-C1

Screw, Cover Mtg

$

$

Currently unavailable

~NLA

Washer, Cover Mtg Screws

$

$

Not available

15

Cub Cadet BS-393403

Breaker Assy, Ignition Points

Note: (582 w/Serial No. 700,000 and Below)

$

$

Not available

16

Cub Cadet BS-26018

Spring, Ignition Points

Note: (582 w/Serial No. 700,000 and Below)

$7.49

$

In Stock, only 1 left!

0

17

Cub Cadet BS-392912

Condenser

Note: (582 w/Serial No. 700,000 and Below)

$24.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-93171

Screw, Condenser Mtg

$

$

Currently unavailable

18

Cub Cadet BS-393598

Plunger, Breaker Points

Note: (582 w/Serial No. 700,000 and Below)

$18.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-280222

Seal, Plunger

Note: (582 w/Serial No. 700,000 and Below)

$4.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-394808

Motor, Starter
(Superseded to BS-497596)

$122.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-93887

Bolt, Thru

$

$

Currently unavailable

22

Cub Cadet BS-391705

Set, Brush

$59.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-390837

Armature Assy

Note: (Replaces IH-78234-C1)

$159.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-394866

Cap Assy, Drive End

$67.99

$

Usually ships in 2-12 days

0

Cub Cadet 710-0805

Bolt, 5/16 X 1-1/2 Type 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-398003

Clutch Assy, Starter
(Superseded to BS-692024)

$21.99

$

In Stock, only 3 left!

0

26

Cub Cadet BS-280104

Gear, Starter
(Superseded to BS-695708)

$6.99

$

In Stock, only 4 left!

0

27

Cub Cadet BS-490467

Kit, Pinion Spring
(Superseded to BS-696540)

$29.99

$

In Stock, Qty 18

0

28

Cub Cadet BS-394674

Cap Assy, Commutator End
(Superseded to BS-497596)

$122.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-394805

Housing, Starter
(Superseded to BS-497595)

$110.99

$

In Stock, Qty 20+

0

30

Cub Cadet BS-394970

Coil Assy, Trigger

$

$

Not available

Cub Cadet BS-394891

Armature, Magneto
(Superseded to BS-590781)

$75.99

$

In Stock, Qty 10

0
