1606 (1694018) - AGCO Lawn Tractor, 16hp Kohler Engine Group - Electric Clutch - 16HP Kohler Parts Diagram

Lawn Tractor, 16hp Kohler

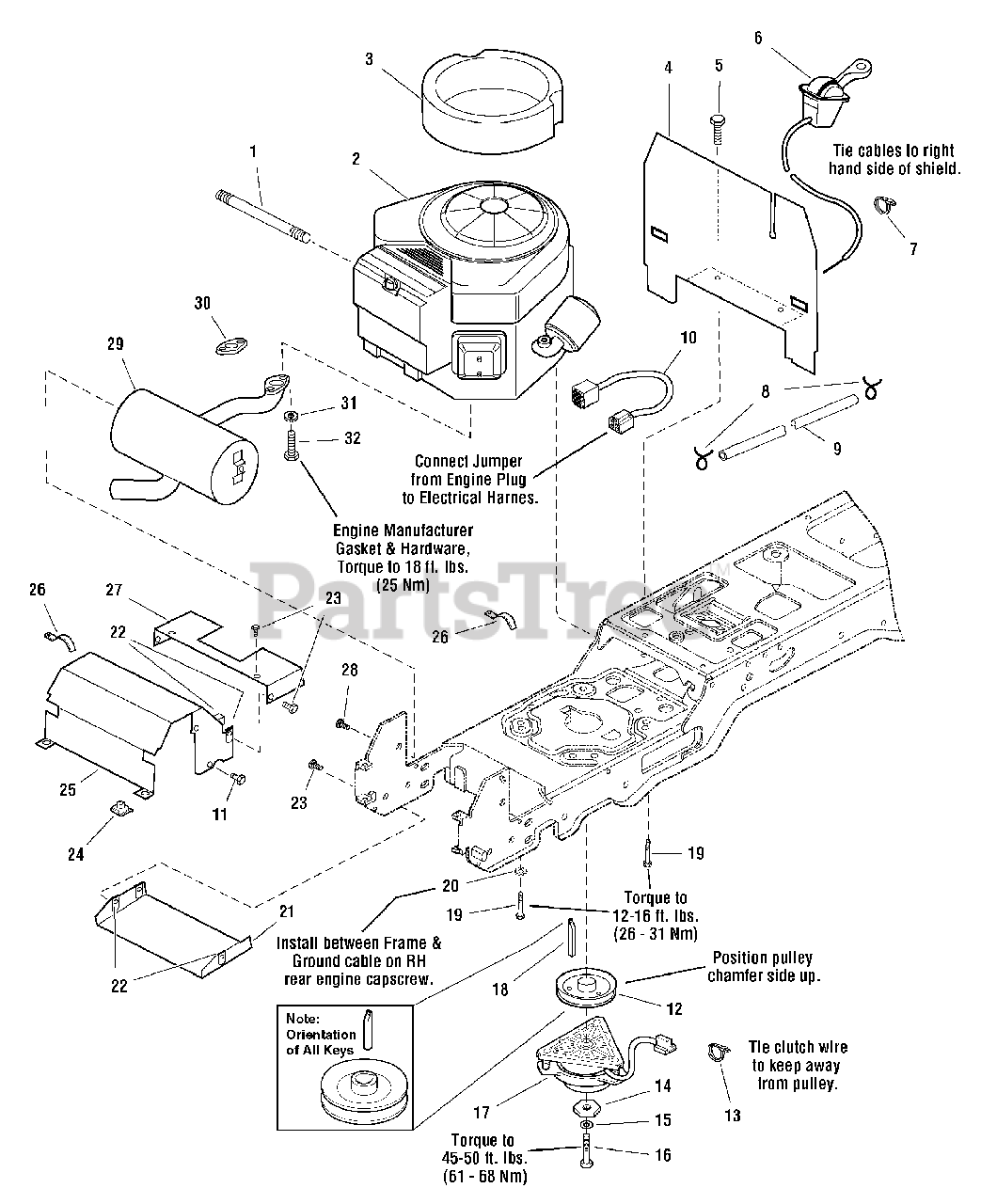

Engine Group - Electric Clutch - 16HP Kohler Parts Diagram

  • Title

1

Simplicity 1723165SM

HOSE, Oil Drain, 10 1/2 Long, 3/8-18 Fittings

$20.99

$

In Stock, Qty 8

0

2

ENGINE, 16HP Kohler, Single, Model CV460S, Type PA-26507

$

$

Not available

3

Simplicity 1722950SM

SEAL, Circle

$54.99

$

In Stock, only 2 left!

0

4

Simplicity 1722388ASM

BULKHEAD

$39.99

$

Usually ships in 2-12 days

0

5

Simplicity 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

6

Simplicity 1721949SM

CONTROL, Throttle Single 25-3/4" Long w/Knobs
(Superseded to 1734509SM)

$76.99

$

In Stock, only 4 left!

0

7

Simplicity 1701011SM

TIE, Wire, 7-5/16" Long

$5.49

$

In Stock, only 2 left!

0

8

Simplicity 2860112SM

CLAMP, Hose Type E

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1718678SM

HOSE, Fuel, 59" Long

$

$

Not available

10

Simplicity 1723661SM

HARNESS, Wire, Jumper

$15.99

$

Usually ships in 2-12 days

0

11

Simplicity 1929000SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1722288SM

PULLEY & HUB ASSEMBLY
(Superseded to 1739847YP)

$42.99

$

In Stock, only 1 left!

0

13

Simplicity 2832747SM

TIE, Self Locking, 3-5/8 Long

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708264SM

WASHER, Hex, 7/16, Black

$8.99

$

In Stock, Qty 5

0

15

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1960648SM

CAPSCREW, Hex Head, 7/16-20 x 3-3/4

$6.49

$

Usually ships in 2-12 days

0

17

Simplicity 1686880SM

CLUTCH, Electric
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

18

Simplicity 1720463SM

KEY, HI PRO, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

19

Simplicity 1927187SM

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

20

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1722414ASM

SHIELD, Muffler Bottom

$20.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960368SM

NUT, Speed, 1/4-20, Lug
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1960295SM

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1935255SM

NUT, Speed, 5/16-18, Lug, Black

$3.49

$

In Stock, only 2 left!

0

25

Simplicity 1722389ASM

DUCT, Muffler Top

$80.99

$

Usually ships in 2-12 days

0

26

Simplicity 2834683SM

CLIP, Wire 1/8
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1722487ASM

DUCT, Muffler Extension

$

$

Not available

28

Simplicity 1924856SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 Black
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1721704SM

MUFFLER, Kohler, Single

$115.99

$

Usually ships in 2-12 days

0

30

GASKET, Kohler, Single

$

$

Not available

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

CAPSCREW, Hex Head, 5/16-18 x 7/8

$

$

Not available
