1605 (135-392-399) - Cub Cadet Garden Tractor Front Axle & Connections Parts Diagram

Garden Tractor

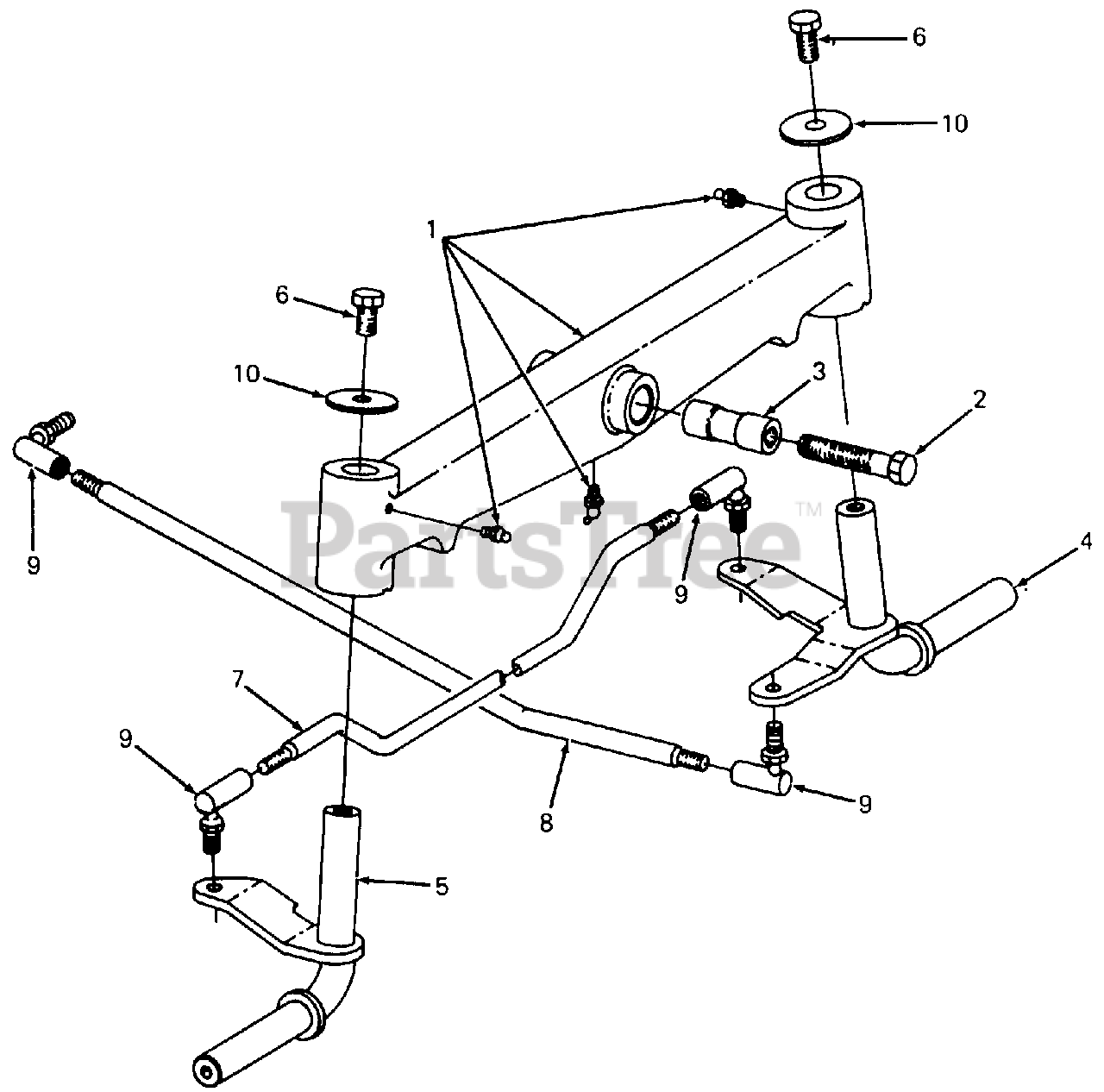

Front Axle & Connections Parts Diagram

  • Title

1

Cub Cadet 719-3019

Axle, Front

Note: (Pivot ID .842)

$

$

Not available

Cub Cadet 737-3000

Fitting, Lube 3/16 Drive Type
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3161

Bolt, 1/2-20 X 4.0 Long GR 5

$

$

Not available

Cub Cadet 712-3021

Nut, 1/2-20 Castle
(Superseded to 912-3021)

$

$

Not available

Cub Cadet 714-0470

Pin, 1/8 X 1-1/4 Cotter

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 711-3063

Bushing, Axle Pivot
(Superseded to 911-3063)

Note: (Pivot OD .840)

$

$

Not available

4

Cub Cadet 703-1252

Knuckle Assy, LH
(Superseded to 703-1252-0637)

Variations

Cub Cadet 703-1252-0637

KNUCKLE ASSY-LH - POWDER BLACK (0637)

$112.99

$

In Stock, only 1 left!

0

$112.99

$

In Stock, only 1 left!

0

5

Cub Cadet 703-1253

Knuckle Assy, RH
(Superseded to 703-1253-0637)

Variations

Cub Cadet 703-1253-0637

KNUCKLE ASSY-RH - POWDER BLACK (0637)

$148.99

$

Usually ships in 3-6 days

0

$148.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3000

Bolt, 3/8-16 X 3/4 Long GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 711-3205

Link,Drag

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Jam GR 5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

8

Cub Cadet 711-3153

Link, Drag

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Jam GR 5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

9

Cub Cadet 723-3018

Joint, 3/8-24 Ball Type G
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3001

Nut, 3/8-24 Jam GR 5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

10

Cub Cadet 736-3039

Washer, .406 X 1.50 X 11 ga.

$5.49

$

In Stock, Qty 5

0
