1605 (135-392-399) - Cub Cadet Garden Tractor Engine Electrical Parts Diagram

Garden Tractor

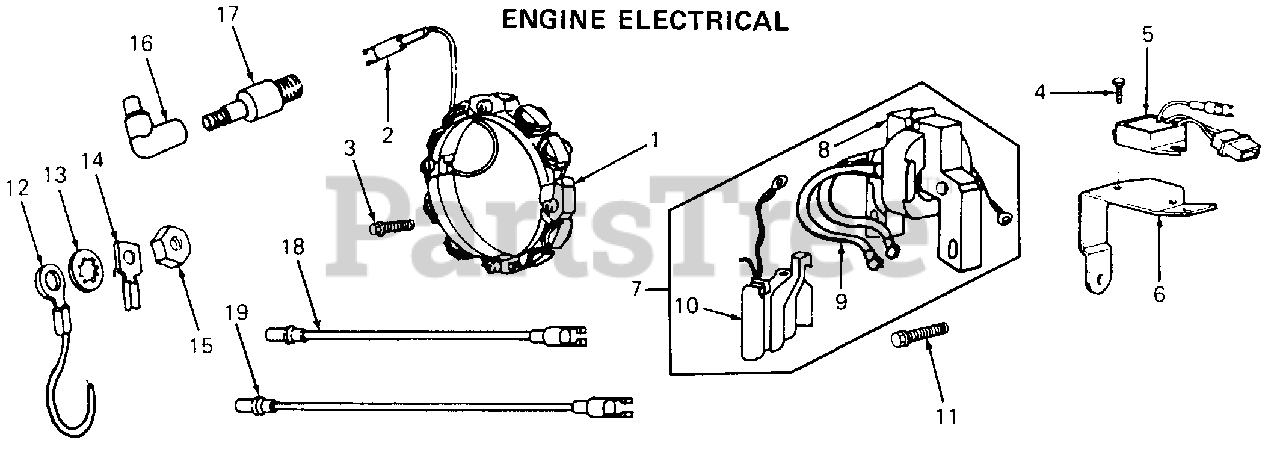

Engine Electrical Parts Diagram

  • Title
1

Cub Cadet BS-392595

Stator, Alternator (Tri-Circuit System)
(Superseded to BS-592829)

$102.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-393295

Stator, Alternator (Regulated System)
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-393537

Connector Assembly (Tri-Circuit System)

$

$

Not available

3

Cub Cadet BS-93621

Screw, Sem
(Superseded to BS-691183)

$

$

Not available

4

Cub Cadet BS-93343

Screw, Regulator Mtg
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

5

Cub Cadet BS-394890

Regulator, Alternator (Regulated System)
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

6

Cub Cadet BS-222959

Bracket, Regulator

$

$

Not available

7

Armature Magnetron

$

$

Not available

8

Cub Cadet BS-394988

Armature Assy
(Superseded to BS-590781)

$75.99

$

In Stock, Qty 10

0

9

Cub Cadet BS-221798

Terminal, Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-394970

Trigger Coil Assy, Magnetron Ignition

$

$

Not available

11

Cub Cadet BS-93381

Screw, Armature Mtg Sem

$

$

Not available

12

Cub Cadet BS-398808

Wire, Ground

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-92791

Washer, Lock, Shakeproof
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet BS-93722

Terminal, Spade
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

15

Cub Cadet BS-90576

Nut, Hex 8-32
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

16

Cub Cadet BS-66538

Elbow, Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

17

Cub Cadet 759-3332

Spark Plug, Resistor

$5.49

$

In Stock, only 3 left!

0

18

Cub Cadet 725-3113

Cable, Alternator Extension (Tri-Circuit System)

$

$

Not available

19

Cub Cadet 725-3114

Cable, Magneto Extension (Tri-Circuit System)

$

$

Currently unavailable

Cub Cadet BS-394891

Armature Magnetron
(Superseded to BS-590781)

$75.99

$

In Stock, Qty 10

0

Cub Cadet 759-3277

Regulator Service Kit (To update the charging system to a fully regulated system)

$

$

Not available

Cub Cadet BS-222959

Bracket, Regulator Mtg

$

$

Not available

Cub Cadet BS-393295

Stator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

$294.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394890

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

Cub Cadet BS-93343

Screw, Regulator Mtg
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

Cub Cadet 726-0215

Cable Tie

$

$

Not available

Cub Cadet 729-0124

Fuse Holder

$

$

Not available

Cub Cadet 725-3120

Fuse
(Superseded to 925-3120)

$

$

Not available

Cub Cadet 759-3281

Diode Assy Replacement Harness

$

$

Not available

Cub Cadet 759-3282

PTO ON Indicator Light Diode Assy

$

$

Not available

Cub Cadet 779-3340

Always Mow at Full Throttle Label

$

$

Currently unavailable

Cub Cadet 772-3721

Instruction Sheet

$

$

Currently unavailable
