1605 (135-392-100) - Cub Cadet Garden Tractor Starter Motor Parts Diagram

Garden Tractor

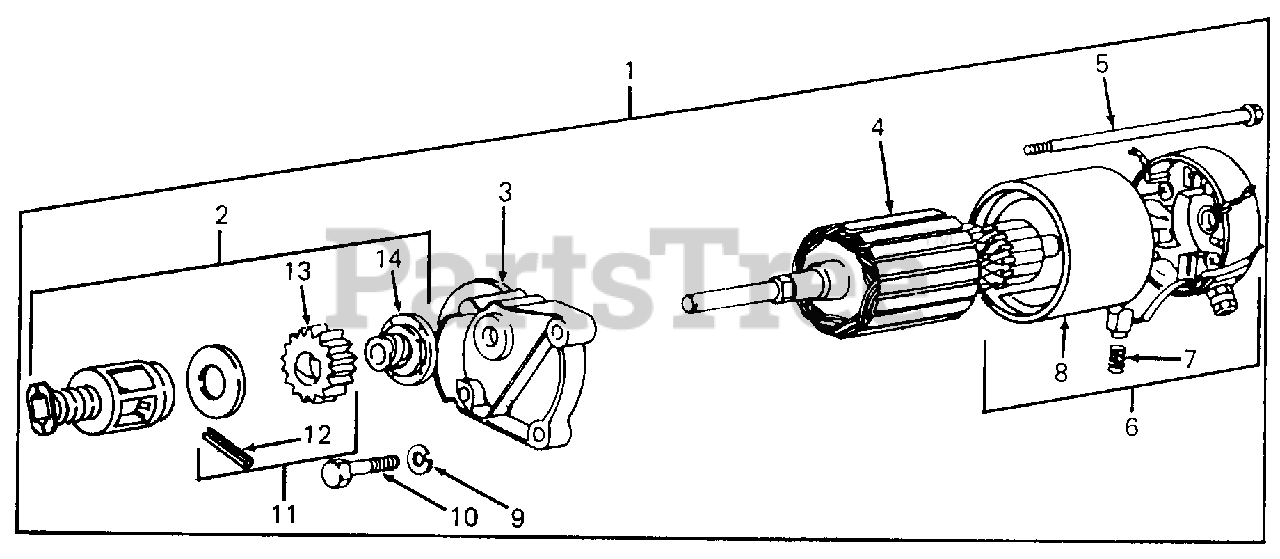

Starter Motor Parts Diagram

  • Title
1

Cub Cadet BS-394808

Motor and Drive Assembly
(Superseded to BS-497596)

$122.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-396865

Starter Drive Group
(Superseded to BS-696540)

Note: (Includes Ref No. 11 thru 14)

$29.99

$

In Stock, Qty 18

0

3

Cub Cadet BS-394860

End Cap Assy, Drive

$

$

Currently unavailable

4

Cub Cadet BS-390837

Armature Assy

$159.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-94003

Thru Bolt

$

$

Currently unavailable

6

Cub Cadet BS-395537

End Cap Assy, Commutator

Note: (Includes Ref No. 7 & 8)

$54.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-395538

Brush Assy

$24.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-393825

Housing Assy

$

$

Not available

9

Cub Cadet BS-90366

Lockwasher
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-91162

Screw, Hex Hd 5/16-18 X 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-393254

Pinion Spring Kit
(Superseded to BS-696540)

Note: (Includes Ref No. 12 & 13)

$29.99

$

In Stock, Qty 18

0

12

Cub Cadet BS-93754

Pin, Roll

$

$

Currently unavailable

13

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, only 2 left!

0

14

Cub Cadet BS-391135

Clutch Assy
(Superseded to BS-692024)

$21.99

$

In Stock, only 2 left!
