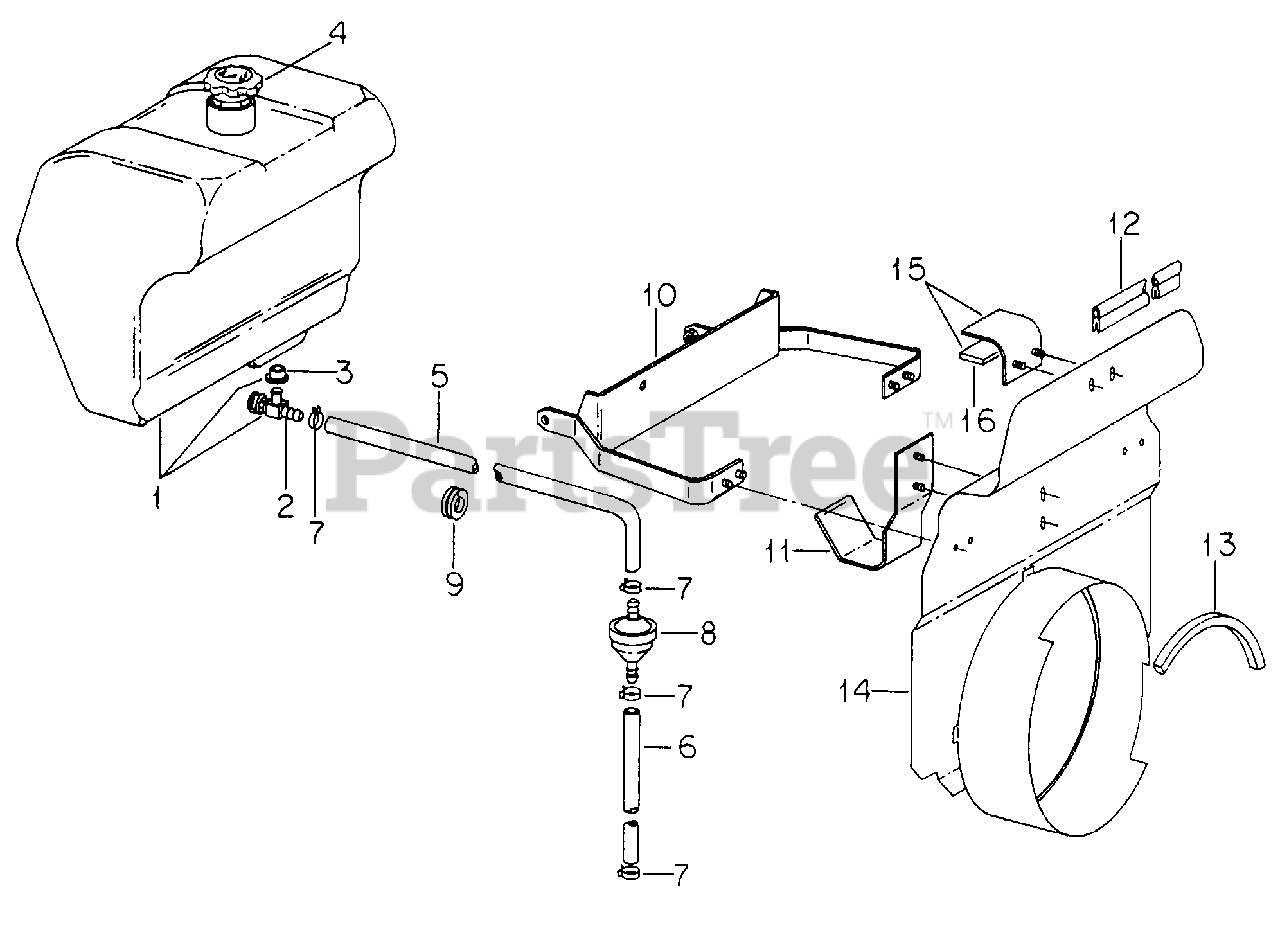

1604 (205-0582) - Cub Cadet Garden Tractor Fuel Tank & Support Parts Diagram

Garden Tractor

Fuel Tank & Support Parts Diagram

  • Title

1

Cub Cadet 751-3006

Tank Assy, Fuel

$

$

Not available

2

Cub Cadet 751-0171

Valve, Shut-Off
(Superseded to 951-0171)

$20.99

$

In Stock, only 1 left!

0

3

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet 751-0226A

Cap w/Gauge Assy
(Superseded to 951-0226A)

Note: (Replaces IH-135348-C1 by also ordering Gasket 723-3003)

$57.99

$

In Stock, Qty 11

0

Cub Cadet 723-3003

Gasket, Fuel Cap

$

$

Not available

5

Line, Fuel

Note: (Tractors w/Fuel Filter, Furnish 318 MM 1/2 OD Hose from Bulk Hose marked 759-3330)

$

$

Not available

Line, Fuel

Note: (Tractors w/o Fuel Filter, Furnish 165 MM 1/2 OD Hose from Bulk Hose marked 759-3330)

$

$

Not available

6

Line, Fuel

Note: (Tractors w/Fuel Filter, Furnish 165 MM 1/2 OD Hose from Bulk Hose marked 759-3330)

$

$

Not available

7

Cub Cadet IH-223330-C1

Clamp, Hose
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 18

0

8

Cub Cadet 751-3013

Filter, Fuel
(Superseded to 951-3013)

Note: (Serial Number 700499 and Below)

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 735-3003

Grommet

$

$

Not available

10

Cub Cadet 703-0049

Support Assy, Fuel Tank

$

$

Currently unavailable

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 19

0

Cub Cadet 710-3013

Bolt, 1/4 X 1/2 Type 5

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 736-0463

Washer, .281 X .625 X .051

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 703-0052

Support Assy, Fuel Tank Bottom

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-124824

Nut, 5/16 Jam Type 5

$

$

Not available

12

Cub Cadet 723-3004

Seal, Heat Baffle

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0376

Bolt, 5/16 X 1 Type 5

$3.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

13

Not used in this application

$

$

Not available

14

Cub Cadet 703-0209

Deflector Assy, Heat

$

$

Not available

15

Cub Cadet 703-0057

Clamp Assy, Fuel Tank

$

$

Not available

16

Cub Cadet 735-3004

Strip, Fuel Tank Pad

$

$

Not available

Cub Cadet 736-0463

Washer, .281 X .625 X .051

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 19

0
