1604 (142-580-100) - Cub Cadet Garden Tractor Engine Mounting Parts Diagram

Garden Tractor

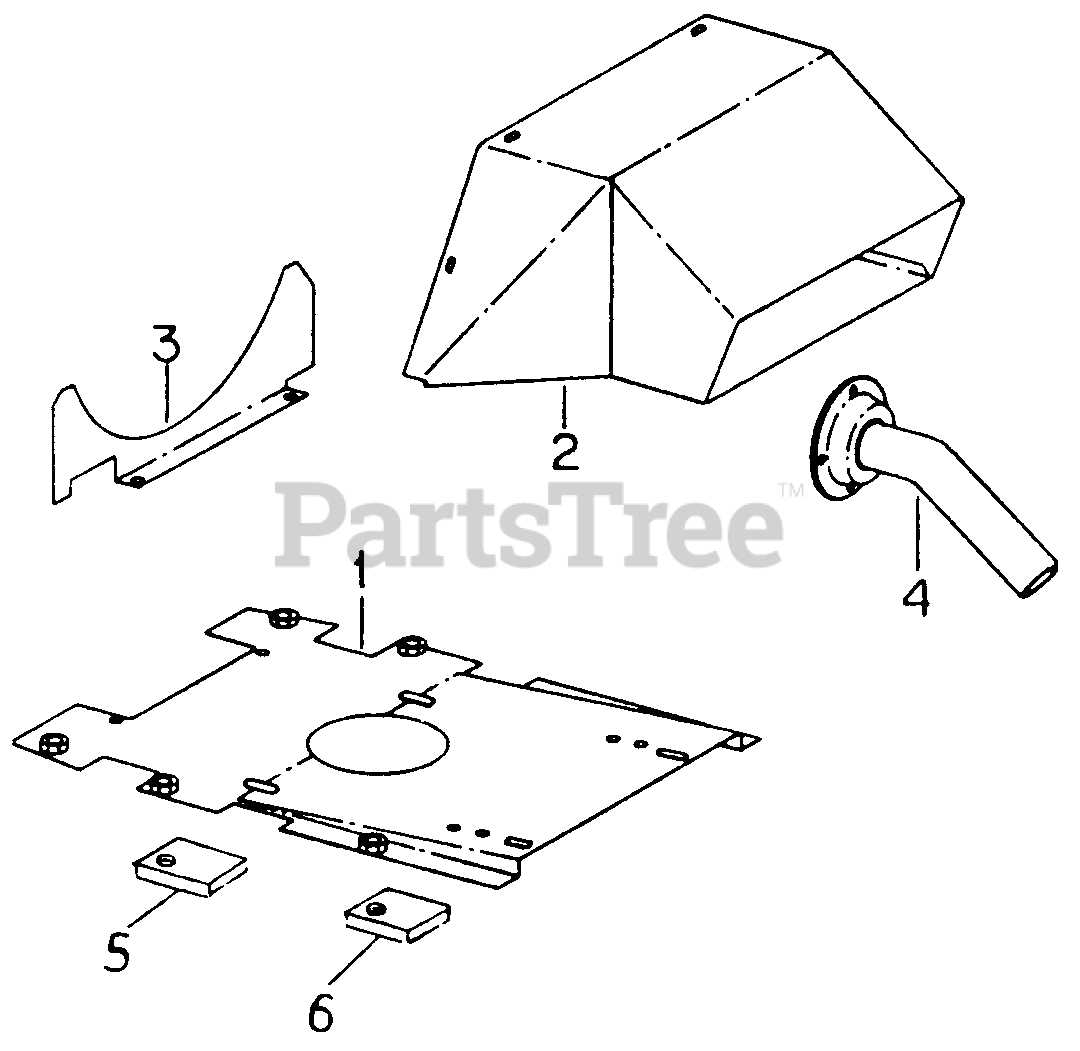

Engine Mounting Parts Diagram

  • Title

1

Cub Cadet 703-0178

Plate Assy, Eng Mtg

$

$

Not available

Cub Cadet 710-0514

Bolt, 3/8 X 1 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

Cub Cadet 736-3006

Washer, 1/4 Ext-Int Tooth Lock

Note: (Use on Starter Motor Terminal)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

Note: (Use on Starter Motor Terminal)

$4.99

$

In Stock, Qty 19

0

2

Cub Cadet 703-0205

Shroud Assy, Engine

$

$

Not available

Cub Cadet 710-0776A

Screw, 1/4-20 X 1/2 H/Whd Tap
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 703-0208

Shroud, Lower

$

$

Currently unavailable

Cub Cadet 710-3013

Bolt, 1/4 X 1/2 Type 5

$4.99

$

In Stock, Qty 11

0

Cub Cadet IH-938016-R1

Nut, 1/4 Flange Lock

$

$

Currently unavailable

4

Cub Cadet 751-3016

Tube Assy, Exhaust

$

$

Not available

~NLA

Screw, No. 8 X 1/4 P/Hdcr Tap

Note: Purchase Locally

$

$

Not available

5

Cub Cadet 703-0891

Spacer, Engine Mounting, .060 Thk

Note: (For Model 582 Only)

$

$

Not available

6

Cub Cadet 703-0890

Spacer, Engine Mounting, .170 Thk

Note: (For Model 582 Only)

$

$

Not available
