16035 - Toro Whirlwind II Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HANDLE ASSEMBLY MODELS 16035, 16106, 16264 Parts Diagram

Whirlwind II Walk-Behind Mower

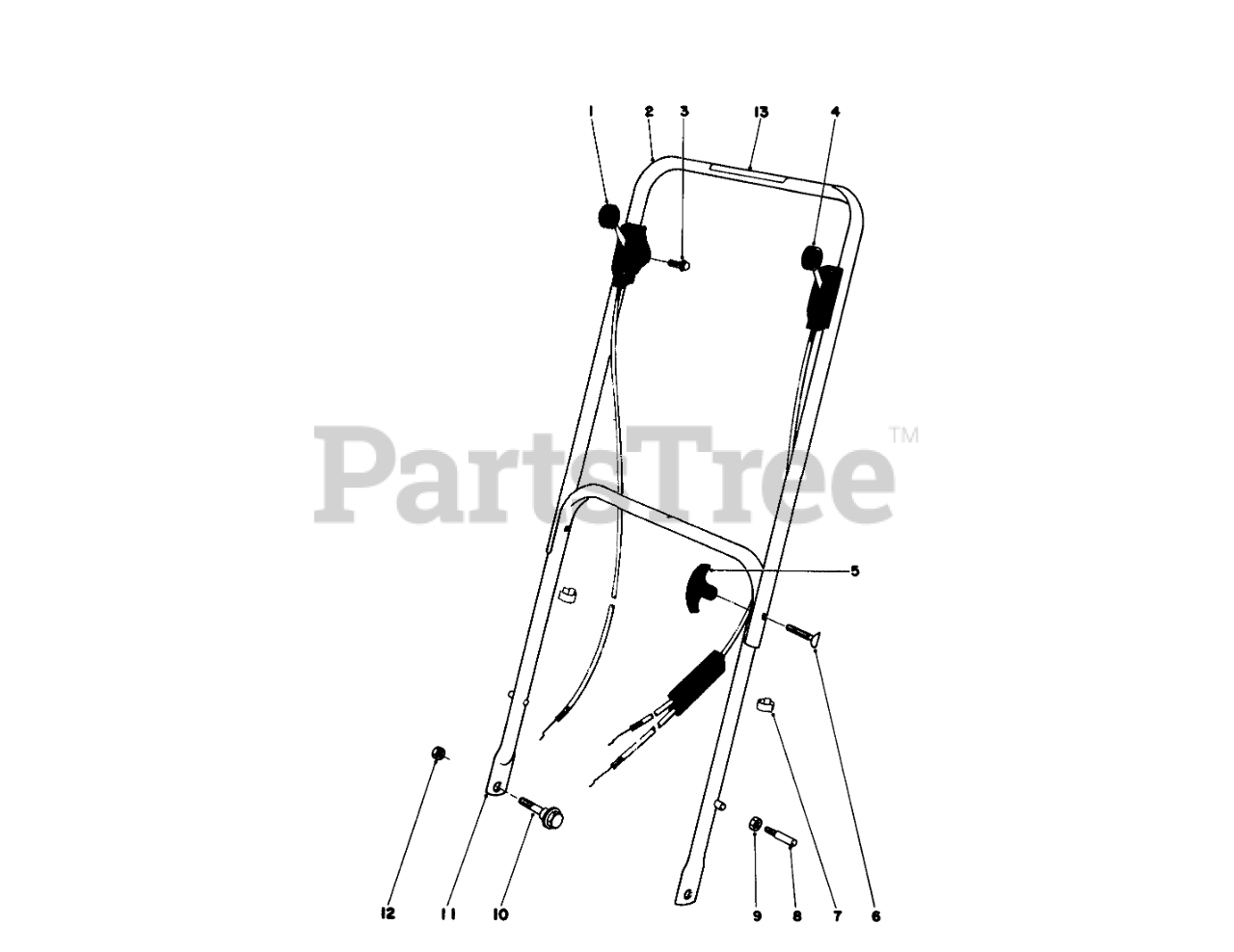

HANDLE ASSEMBLY MODELS 16035, 16106, 16264 Parts Diagram

  • Title

1

Toro 27-6500

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

2

Toro 27-7030

UPPER HANDLE

$

$

Not available

3

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

Toro 32144-22

SCREW

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

4

Toro 27-6490

Traction Control
(Superseded to 46-6030)

$

$

Not available

5

Toro 233-41

KNOB

$

$

Not available

6

Toro 6-6330

HANDLE SCREW

$

$

Not available

7

Toro 218-465

BOWDEN CLIP

$

$

Not available

Toro 218-465

BOWDEN CLIP

$

$

Not available

8

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

9

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts

$1.49

$

Usually ships in 3-6 days

0

10

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

11

Toro 27-7040

Lower Handle
(Superseded to 38-1290)

$

$

Not available

Toro 27-7050

Lower Handle
(Superseded to 38-1260)

$230.99

$

Usually ships in 3-6 days

0

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 29-6290

Decal

$

$

Not available

Toro 6-8229

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
