16009 - Toro Whirlwind II Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY MODEL 16009 AND 16113 Parts Diagram

Whirlwind II Walk-Behind Mower

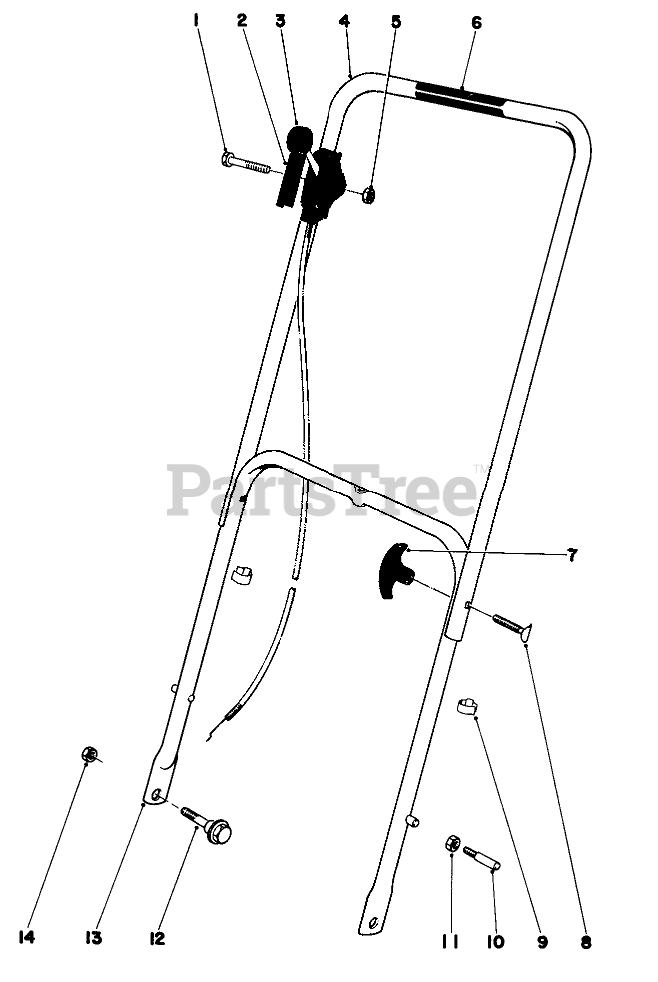

HANDLE ASSEMBLY MODEL 16009 AND 16113 Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 36-5290

Decal-Throttle

$

$

Not available

3

Toro 33-2531

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

4

Toro 38-1270

Upper Handle
(Superseded to 38-1271)

$

$

Not available

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 36-5210

Decal

$

$

Not available

7

Toro 233-41

KNOB

$

$

Not available

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

Toro 218-465

BOWDEN CLIP

$

$

Not available

10

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts.

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts.

$1.49

$

Usually ships in 3-6 days

0

12

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

13

Toro 38-1290

19 LOWER HANDLE ASM

$

$

Not available

Toro 38-1260

LOWER HANDLE ASM SP

Note: Not illustrated

$230.99

$

Usually ships in 3-6 days

0

14

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0
