16009 - Toro Whirlwind II Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY MODEL 16277 Parts Diagram

Whirlwind II Walk-Behind Mower

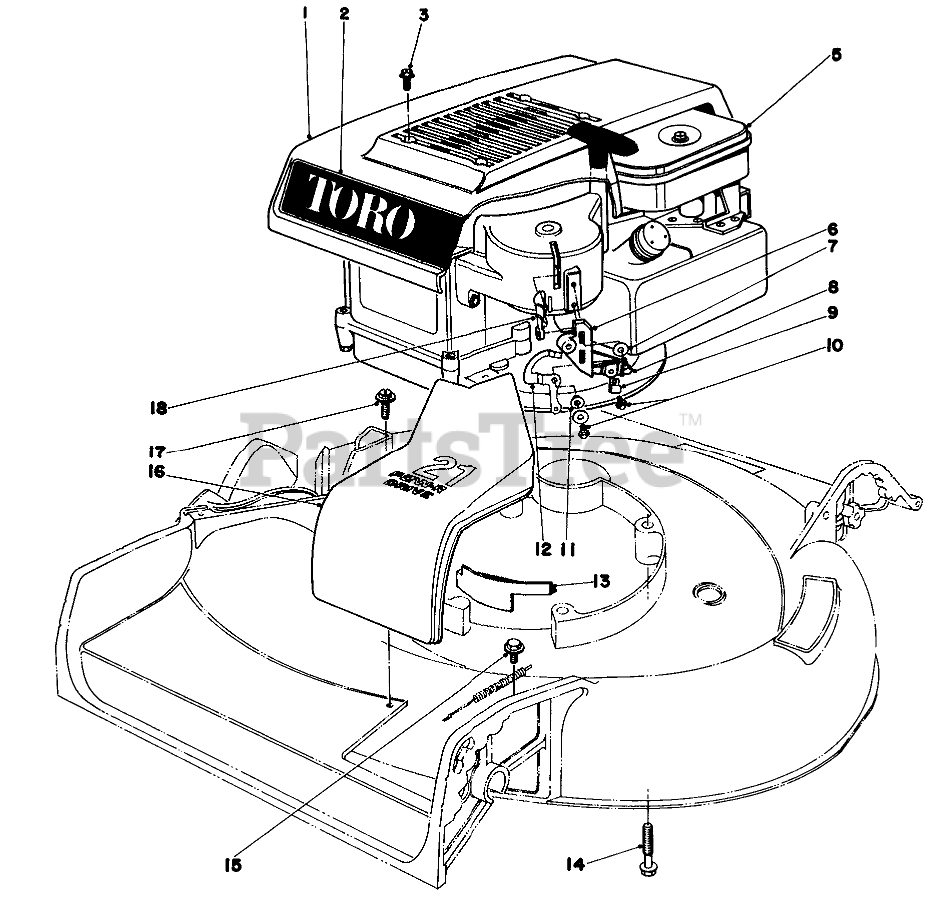

ENGINE ASSEMBLY MODEL 16277 Parts Diagram

  • Title

1

Toro 28-4720

SHROUD

$79.99

$

Usually ships in 3-6 days

0

2

Toro 28-4740

Decal-Toro

$

$

Not available

3

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

5

Toro 221-524

Engine

$

$

Currently unavailable

6

Toro 27-9280

CABLE & PIVOT BLOCK

$

$

Not available

7

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 32144-19

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 2412-63

CLAMP

$

$

Not available

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

12

Toro 25-8150

CAM INTERLOCK

$

$

Not available

13

Toro 27-7470

HOUSING CAP

$

$

Not available

14

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 28-4730

BELT DRIVE COVER

$58.99

$

Usually ships in 3-6 days

0

17

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

18

Toro 25-0350

INTERLOCK LEVER

$

$

Not available
