1600343 - Simplicity 30" Tiller Attachment 30" Tiller Housing & Drive (5008, 5010) Parts Diagram

30" Tiller Attachment

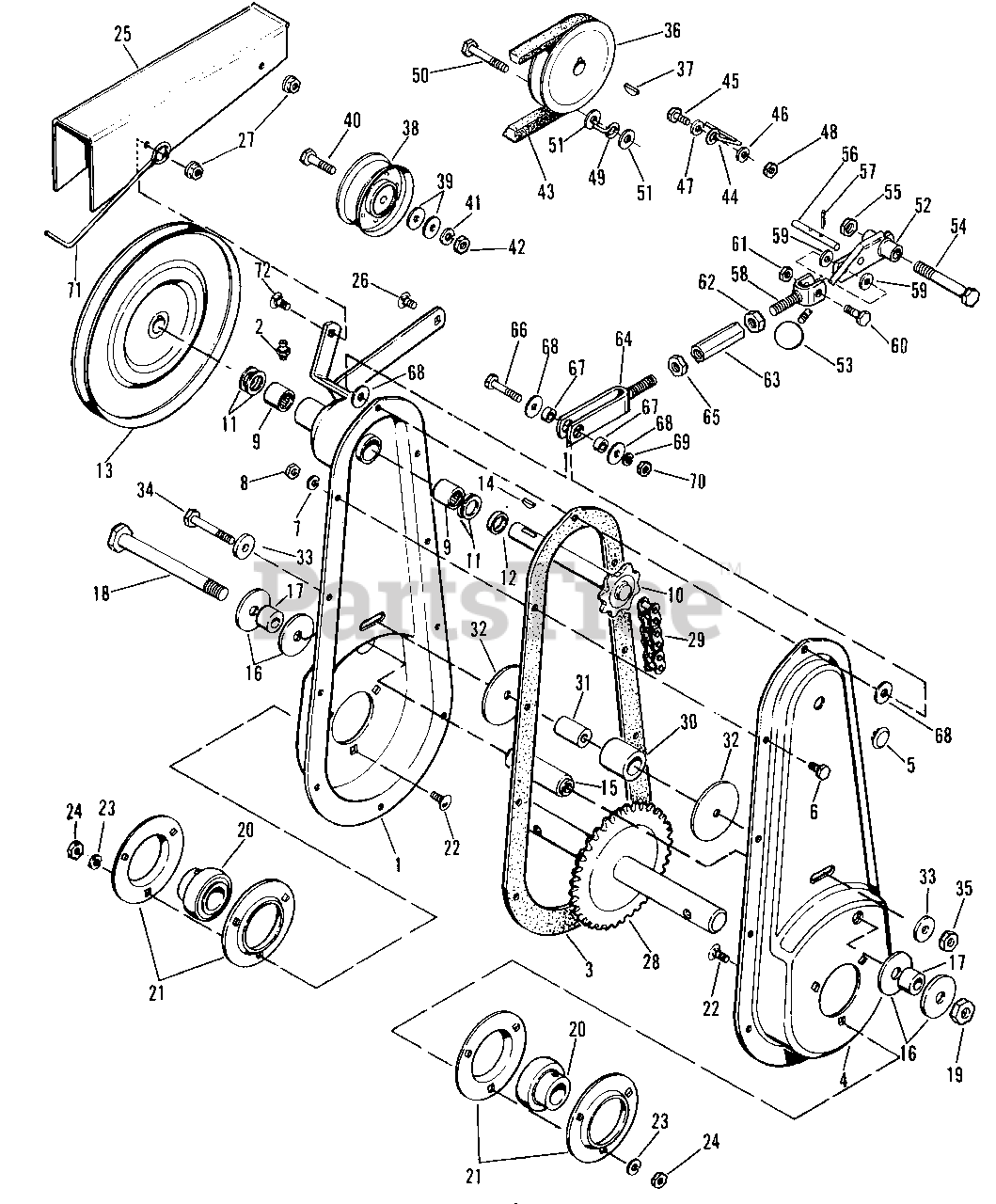

30" Tiller Housing & Drive (5008, 5010) Parts Diagram

  • Title

1

Simplicity 170323

CASE ASSY., L.H.

$

$

Not available

2

Simplicity 2812808SM

FITTING, Grease, 1/4-28

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 2170022

GASKET, Case

$

$

Not available

4

Simplicity 170367

CASE ASSY., R.H.

$

$

Not available

5

Simplicity 2164191

BUTTON, Plug

$

$

Not available

6

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8"

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2108054

BEARING, Needle

$

$

Not available

10

Simplicity 170023

DRIVE SHAFT ASSY.

$

$

Not available

11

Simplicity 2153079

WASHER

$

$

Not available

12

Simplicity 170329

SPACER

$

$

Not available

13

Simplicity 170121

PULLEY (Driven)

$

$

Not available

14

Simplicity 2805123SM

KEY, Woodruff 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 170029

SPACER, Case

$

$

Not available

16

Simplicity 2105010

WASHER

$

$

Not available

17

Simplicity 170179

SPACER

$

$

Not available

18

Simplicity 928865

CAPSCREW, Hex, 1/2-13 x 5-1/2"

$

$

Not available

19

Simplicity 2822134

LOCKNUT, 1/2-13

$

$

Not available

20

Simplicity 2170419

BEARING

$

$

Not available

21

Simplicity 2161069

FLANGE, Bearing

$

$

Not available

22

Simplicity 2823346

BOLT, Carriage, 5/16-18 x 3/4"

$

$

Not available

23

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1917372SM

NUT, hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2105326A

GUARD, Belt

$

$

Not available

26

Simplicity 923700

BOLT, Carriage, 5/16 18 x 1/2

$

$

Not available

27

Simplicity 2827557

NUT, Special, 5/16-18

$

$

Not available

28

Simplicity 170030

TlNE SHAFT ASSY.

$

$

Not available

29

Simplicity 170053

CHAIN

$

$

Not available

30

Simplicity 2170177SM

ROLLER

$9.49

$

Usually ships in 2-12 days

0

31

Simplicity 2170369SM

SPACER

$

$

Not available

32

Simplicity 2170368

WASHER

$

$

Not available

33

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

34

Simplicity 2822130

CAPSCREW, Hex, 3/8-16 x 2-1/4"

$

$

Not available

35

Simplicity 2823428

LOCKNUT, hex, 3/8-16

$

$

Not available

36

Simplicity 170395

PULLEY (Driver)

$

$

Not available

37

Simplicity 2805123SM

KEY, Woodruff, 3/16-3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 2156124SM

PULLEY, Idler

$

$

Not available

39

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

40

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4" lg.

$

$

Not available

41

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

42

Simplicity 2816950SM

NUT, hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

43

Simplicity 2108505

BELT, "V"
(Superseded to 1727773SM)

$34.99

$

In Stock, only 3 left!

0

44

Simplicity 170396

STOP, Belt

$

$

Not available

45

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4"

$

$

Not available

46

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

48

Simplicity 1917372SM

NUT, hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 2170397SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

50

Simplicity 2819361

CAPSCREW, Hex, 3/8-16 x 1-3/4"

$

$

Not available

51

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

52

Simplicity 170310

CLUTCH LEVER ASSY.

$

$

Not available

53

Simplicity 2122005SM

KNOB

$14.99

$

Usually ships in 2-12 days

0

54

Simplicity 923298

CAPSCREW, Hex, 7/16-14 x 2-3/4

$

$

Not available

55

Simplicity 2824058

LOCKNUT, hex, 7/16-14

$

$

Not available

56

Simplicity 170248

PIN, Stop

$

$

Not available

57

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

58

Simplicity 170241

CLEVIS ASSY., L.H.

$

$

Not available

59

Simplicity 166161

WASHER, Nylon

$

$

Not available

60

Simplicity 2816431

CAPSCREW, Hex, 5/16-18 x 1"

$

$

Not available

61

Simplicity 2823362

LOCKNUT, hex, 5/16-18

$

$

Not available

62

Simplicity 925476

NUT, Hex, 7/16-14 L.H. Thread

$

$

Not available

63

Simplicity 166088

TURNBUCKLE

$

$

Not available

64

Simplicity 170244

YOKE ASSY., R.H.

$

$

Not available

65

Simplicity 2818213

NUT, Hex, 7/16"-14

$

$

Not available

66

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2"

$

$

Not available

67

Simplicity 2156150SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

68

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

69

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

70

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

71

Simplicity 8161158

STOP, Belt

$

$

Not available

72

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4"

$

$

Not available
