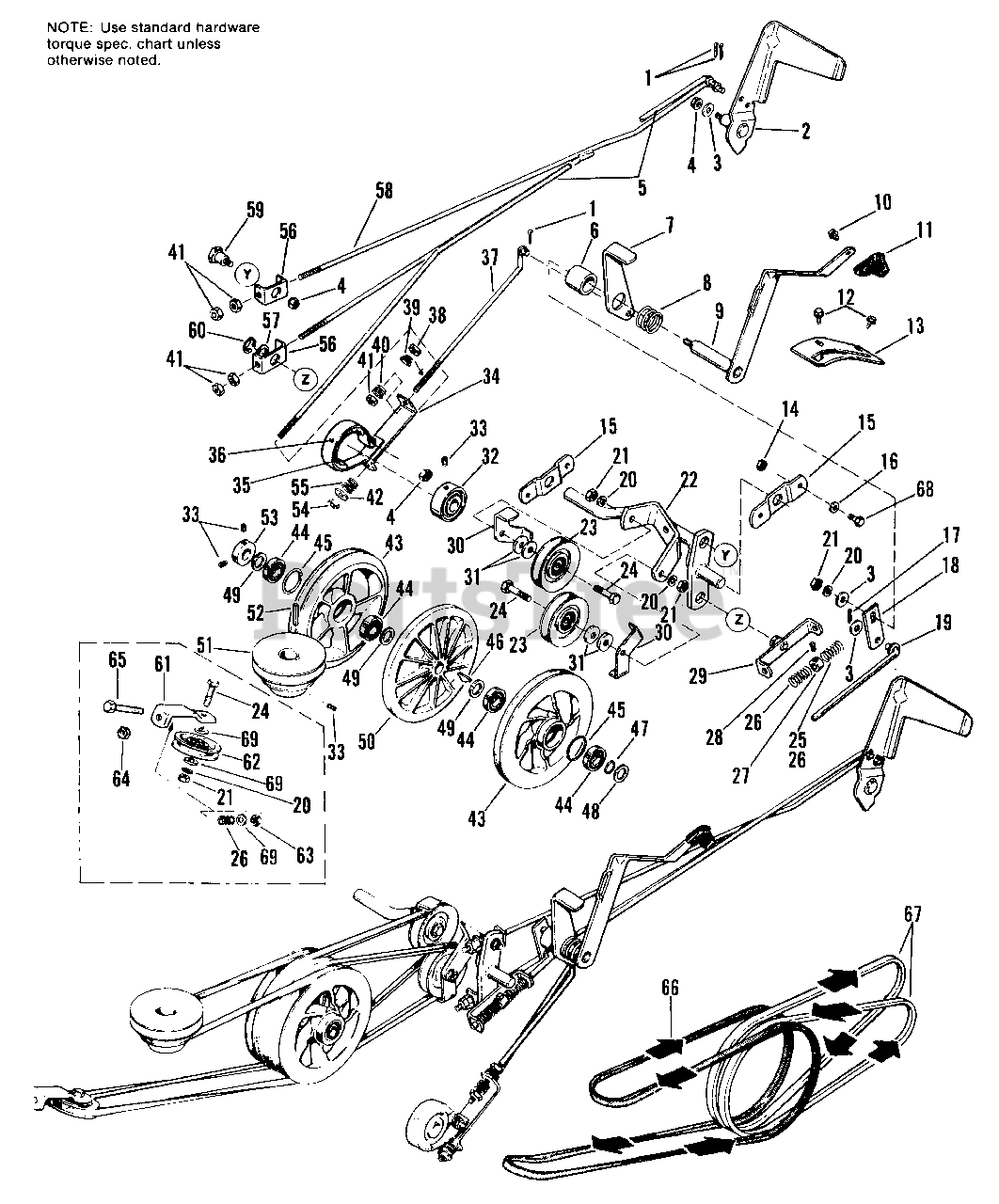

1600318 - AGCO Scamp Rear-Engine Riding Mower, 8hp Belts & Pulleys Group Parts Diagram

Scamp Rear-Engine Riding Mower, 8hp

Belts & Pulleys Group Parts Diagram

  • Title

1

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

2

Simplicity 176663

PEDAL ASSY., Foot

$

$

Not available

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2830645

LOCKNUT, Flange, 3/8-16

$

$

Not available

5

Simplicity 176669

ROD, Brake

$

$

Not available

6

Simplicity 176865

HUB

$

$

Not available

7

Simplicity 176866

LEVER

$

$

Not available

8

Simplicity 153093

SPRING

$

$

Not available

9

Simplicity 175945

LEVER ASSY., Control

$

$

Not available

10

Simplicity 2822125

SCREW. Thd. Forming, 1/4-20 x 7/8

$

$

Not available

11

Simplicity 2171165

KNOB

$

$

Not available

12

Simplicity 2824856

SCREW, Swage Form, 5/16-18 x 1/2

$

$

Not available

13

Simplicity 176014

QUADRANT

$

$

Not available

14

Simplicity 2830642

NUT, Flange, 1/4-20

$

$

Not available

15

Simplicity 176551

SUPPORT, Pivot

$

$

Not available

16

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

17

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

18

Simplicity 176899

LINK

$

$

Not available

19

Simplicity 175947

ROD, Clutch

$

$

Not available

20

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

21

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

22

Simplicity 175950

BRACKET, Pivot

$

$

Not available

23

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

Usually ships in 2-12 days

0

24

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

25

Simplicity 176903

SPRING

Note: Used On Mfg. No. 990963.

$

$

Not available

26

Simplicity 177365

SPRING (Qty. 2 used on 990963)

$

$

Not available

27

Simplicity 105201

COLLAR, Set

$

$

Not available

28

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

29

Simplicity 176796

GUIDE ASSY., Rod

$

$

Not available

30

Simplicity 174402

GUIDE, Belt

$

$

Not available

31

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

32

Simplicity 2165067SM

DRUM, Brake

$27.99

$

Usually ships in 2-12 days

0

33

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

34

Simplicity 176638

BAND ASSY., Brake

$

$

Not available

35

Simplicity 2156134SM

LINING, Brake

$104.99

$

Usually ships in 2-12 days

0

36

Simplicity 2826021SM

RIVET, #7 x 1/4

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 176864

ROD, Parking Brake

$

$

Not available

38

Simplicity 2824433

LOCKNUT, Elastic, 5/16-18

$

$

Not available

39

Simplicity 2153010SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

40

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

41

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 2817642

WASHER, Plain

$

$

Not available

43

Simplicity 176502

PULLEY ASSY., Outer

$

$

Not available

44

Simplicity 2175734

BEARING

$

$

Not available

45

Simplicity 108051

RING, Retaining

$

$

Not available

46

Simplicity 2157332

KEY

$

$

Not available

47

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

48

Simplicity 2175271

WASHER

$

$

Not available

49

Simplicity 2121210SM

WASHER

$1.99

$

Usually ships in 2-12 days

0

50

Simplicity 175739

CLUTCH, Center Disc

$

$

Not available

51

Simplicity 175365

PULLEY, Engine

$

$

Not available

52

Simplicity 2159159SM

KEY

$37.99

$

In Stock, only 1 left!

0

53

Simplicity 108289

COLLAR, Set

$

$

Not available

54

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

55

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 7

0

56

Simplicity 176797

GUIDE, Rod

$

$

Not available

57

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

58

Simplicity 176730

ROD ASSY., Clutch

$

$

Not available

59

Simplicity 2161166

BOLT, Shoulder

$

$

Not available

60

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

61

Simplicity 176493

BRACKET, Idler

$

$

Not available

62

Simplicity 176640

PULLEY, Idler

$

$

Not available

63

Simplicity 2819439

LOCKNUT, Elastic, 3/8-16

$

$

Not available

64

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

65

Simplicity 930622

CAPSCREW, Hex Hd., 3/8-16 x 4

$

$

Not available

66

Simplicity 2177452SM

BELT, V

$22.99

$

Usually ships in 2-12 days

0

67

Simplicity 2175361SM

BELTS, Matched

$19.99

$

Usually ships in 2-12 days

0

68

Simplicity 2827340

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

69

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available
