1600280 - Simplicity 42" Mower Deck PTO Idler Group (3188I01) Parts Diagram

42" Mower Deck

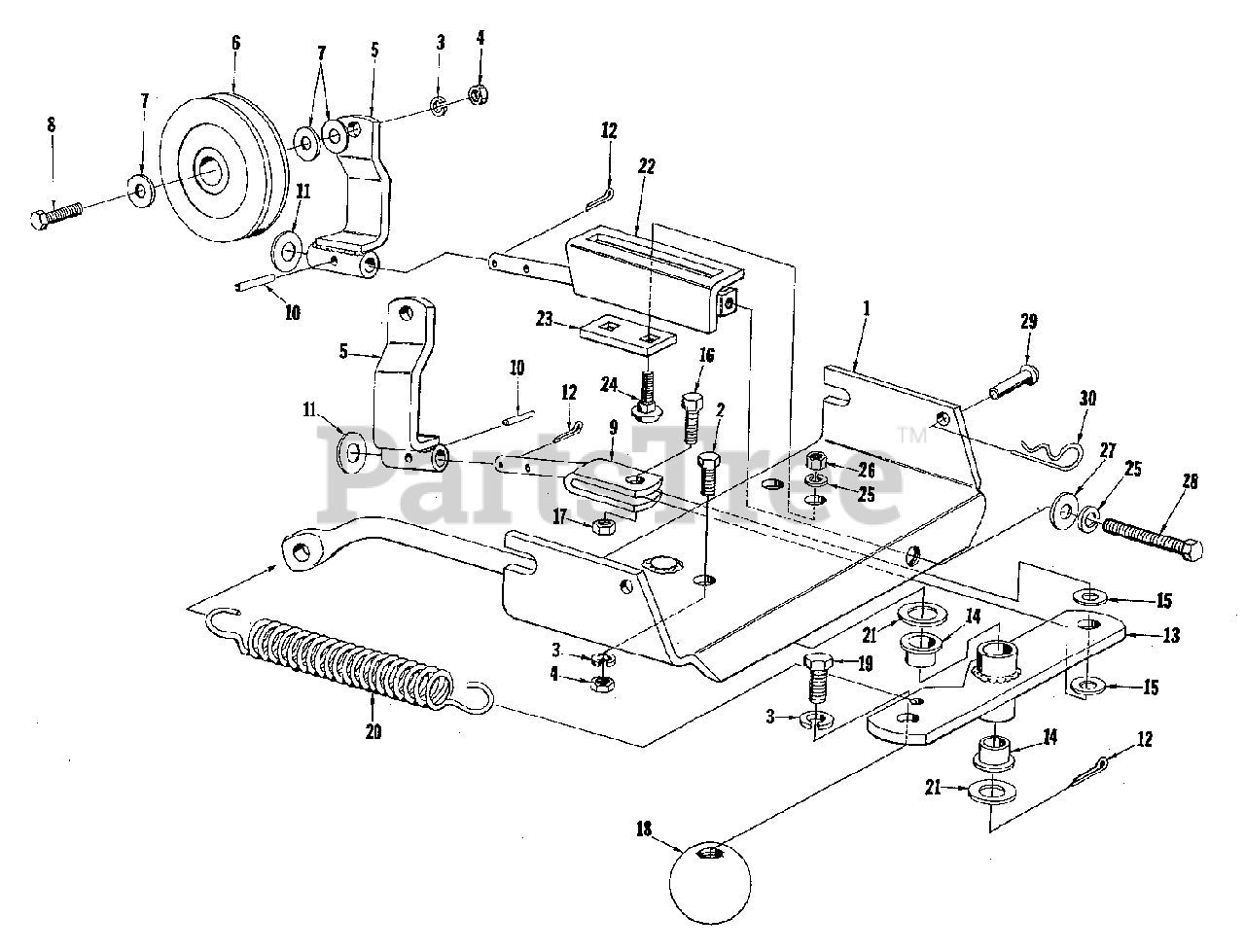

PTO Idler Group (3188I01) Parts Diagram

  • Title

1

Simplicity LM-16070-64

SUPPORT ASSEMBLY

$

$

Not available

2

Simplicity LM-09174-00

SCREW, Hex Head Cap, 3/8-16 x 1-1/4

$

$

Not available

3

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

4

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

5

Simplicity LM-16070-73

BRACKET ASSEMBLY, Idler

$

$

Not available

6

Simplicity LM-01010-96

PULLEY, Idler

$

$

Not available

7

Simplicity LM-09249-40

WASHER, Flat

$

$

Not available

8

Simplicity LM-09193-60

SCREW, Hex Head Cap, 3/8-16 x 1-1/2

$

$

Not available

9

Simplicity LM-16070-56

CLEVIS ASSEMBLY

$

$

Not available

10

Simplicity LM-09160-01

PIN, Spring

$

$

Not available

11

Simplicity LM-09169-60

WASHER, Flat

$

$

Not available

12

Simplicity LM-09184-52

COTTER PIN

$

$

Not available

13

Simplicity LM-16070-66

ARM ASSEMBLY, Pivot

$

$

Not available

14

Simplicity LM-16104-56

BEARING, Nylon

$

$

Not available

15

Simplicity LM-01591-34

WASHER, Nylon

$

$

Not available

16

Simplicity LM-16071-24

SCREW, Special, Cap

$

$

Not available

17

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

18

Simplicity LM-16010-42

KNOB, Ball

$

$

Not available

19

Simplicity LM-09193-87

SCREW, Hex Head Cap, 3/8-16 x 7/8

$

$

Not available

20

Simplicity LM-01737-47

SPRING, Extension

$

$

Not available

21

Simplicity LM-09193-87

WASHER, Flat

$

$

Not available

22

Simplicity LM-16070-60

BRACKET ASSEMBLY

$

$

Not available

23

Simplicity LM-16070-61

PLATE, Reinforcement

$

$

Not available

24

Simplicity LM-09211-58

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

25

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

26

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

27

Simplicity LM-09176-42

WASHER, Flat

$

$

Not available

28

Simplicity LM-09234-23

SCREW, Hex Head Cap, 5/16-18 x 2-1/2

$

$

Not available

29

Simplicity LM-01563-06

PIN, Round Head

$

$

Not available

30

Simplicity LM-09181-96

PIN, Quick

$

$

Not available
