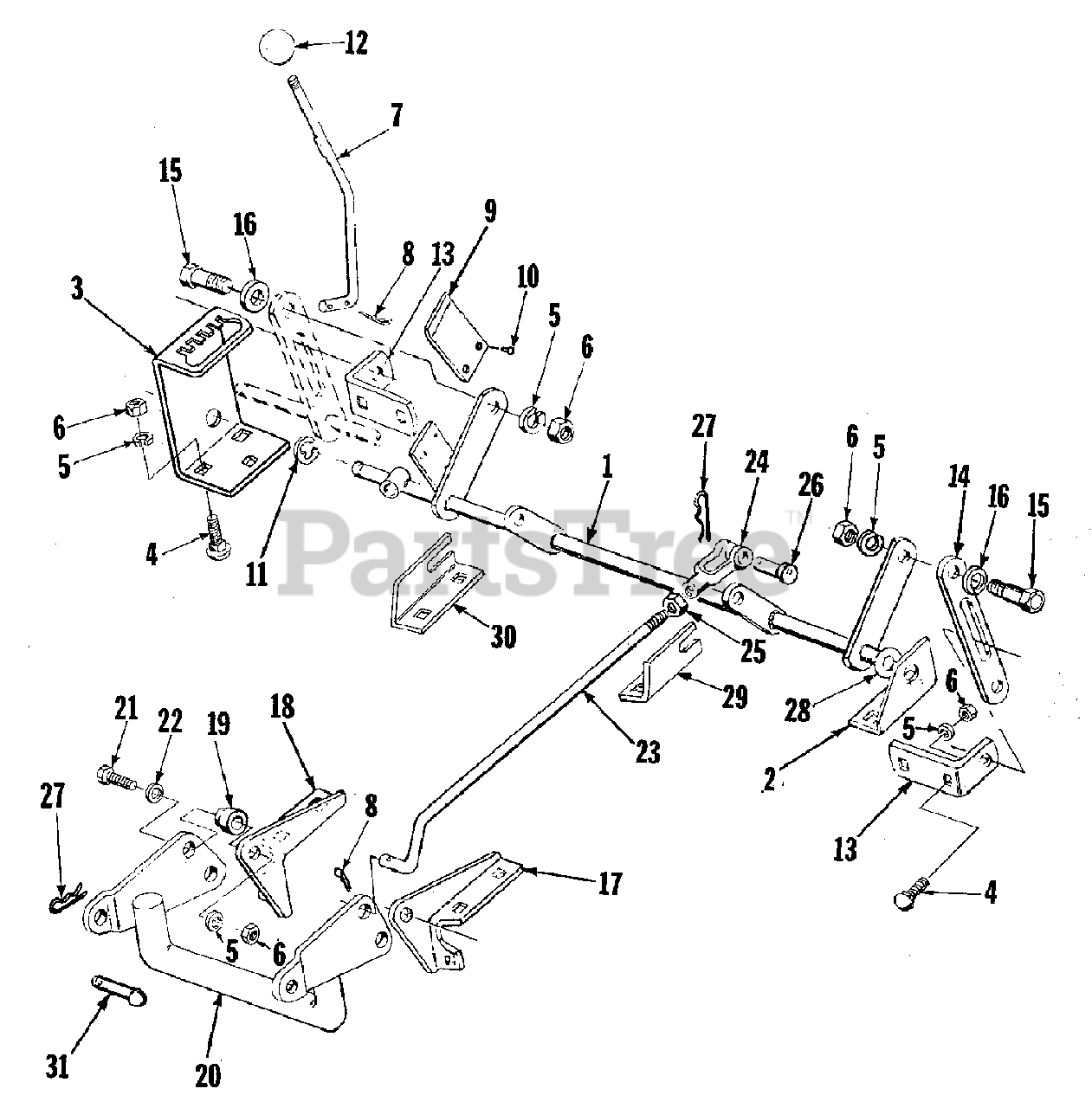

1600280 - Simplicity 42" Mower Deck Hitch Group (3188I05) Parts Diagram

42" Mower Deck

Hitch Group (3188I05) Parts Diagram

  • Title

1

Simplicity LM-16065-32

ARM ASSEMBLY, Mower

$

$

Not available

2

Simplicity LM-16032-59

BRACKET, Pivot (L.H.)

$

$

Not available

3

Simplicity LM-16032-60

QUADRANT, Mower Control

$

$

Not available

4

Simplicity LM-09221-10

BOLT, Round Head, 3/8-16 x 3/4

$

$

Not available

5

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

6

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

7

Simplicity LM-16074-14

LEVER, Control

$

$

Not available

8

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

9

Simplicity LM-16032-62

SPRING, Mower Quadrant

$

$

Not available

10

Simplicity LM-16020-93

RIVET, Pop

$

$

Not available

11

Simplicity LM-09277-94

RING, "E"

$

$

Not available

12

Simplicity LM-16102-52

KNOB

$

$

Not available

13

Simplicity LM-16032-64

BRACKET, Roller Support

$

$

Not available

14

Simplicity LM-16032-62

BAR, Roller

$

$

Not available

15

Simplicity LM-16021-86

BOLT, Shoulder

$

$

Not available

16

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

17

Simplicity LM-16029-42

BRACKET, Front (L.H.)

$

$

Not available

18

Simplicity LM-16029-43

BRACKET, Front (R.H.)

$

$

Not available

19

Simplicity LM-16032-70

SPACER, Pivot

$

$

Not available

20

Simplicity LM-16070-79

LINK ASSEMBLY, Mower

$

$

Not available

21

Simplicity LM-09193-61

SCREW, Hex Head Cap, 3/8-16 x 1-3/4

$

$

Not available

22

Simplicity LM-09227-55

WASHER, Flat

$

$

Not available

23

Simplicity LM-16032-56

ROD, Adjusting (R.H.) 42" Mower

$

$

Not available

23

Simplicity LM-16033-66

ROD, Adjusting (R.H.) 48" Mower

$

$

Not available

23

Simplicity LM-16032-57

ROD, Adjusting (L.H.) 42" Mower

$

$

Not available

23

Simplicity LM-16033-67

ROD, Adjusting (L.H.) 48" Mower

$

$

Not available

24

Simplicity LM-01576-31

YOKE, Rod End Adjusting

$

$

Not available

25

Simplicity LM-09192-62

NUT, Jam Hex, 1/2-20

$

$

Not available

26

Simplicity LM-01543-05

PIN, Yoke, 1/2

$

$

Not available

27

Simplicity LM-09181-96

PIN, Quick

$

$

Not available

28

Simplicity LM-09243-68

WASHER, Flat, 25/32 x 1-1/8

$

$

Not available

29

Simplicity LM-16070-53

SUPPORT, Shaft (L.H.)

$

$

Not available

30

Simplicity LM-16070-52

SUPPORT, Shaft (R.H.)

$

$

Not available

31

Simplicity LM-01563-06

PIN, Round Head

$

$

Not available
