1600278 - Simplicity 32" Mower Deck Housing and Arbors Group (3842I01) Parts Diagram

32" Mower Deck

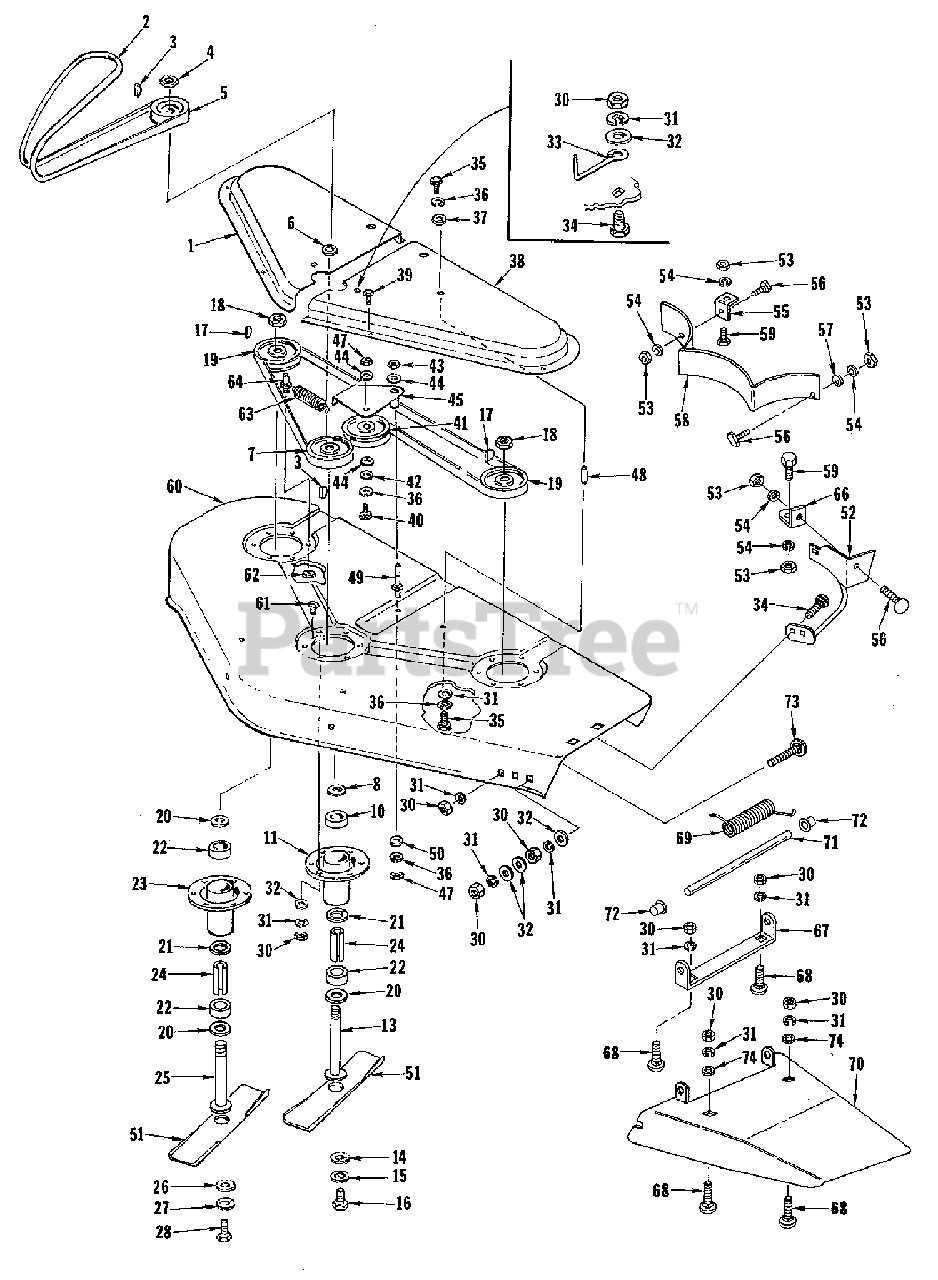

Housing and Arbors Group (3842I01) Parts Diagram

  • Title

1

Simplicity LM-16068-29

SHIELD, Arbor (R.H.)

$

$

Not available

2

Simplicity LM-01764-39

BELT, Front PTO Drive

$

$

Not available

2

Simplicity LM-16015-20

BELT, Front PTO Drive

$

$

Not available

2

Simplicity LM-16075-80

HOUSING ASSEMBLY (Not Shown)

$

$

Not available

3

Simplicity LM-09183-12

KEY, Woodruff, #61

$

$

Not available

4

Simplicity LM-16070-21

NUT, Hex Jam, 3/4-16

$

$

Not available

5

Simplicity LM-01082-46

PULLEY, Corss Drive

$

$

Not available

6

Simplicity LM-01773-55

WASHER, Flat

$

$

Not available

7

Simplicity LM-16028-81

PULLEY, Mower Spindle

$

$

Not available

8

Simplicity LM-01084-72

WASHER, Special

$

$

Not available

8

Simplicity LM-16087-05

TUBE ASSEMBLY, Arbor w/Bearing (Not Shown)

$

$

Not available

9

Simplicity LM-01081-34

RING, Backing

$

$

Not available

10

Simplicity LM-01082-02

BEARING

$

$

Not available

11

Simplicity LM-16086-64

TUBE ASSEMBLY, Arbor

$

$

Not available

12

Simplicity LM-16022-65

SPACER

$

$

Not available

13

Simplicity LM-16075-32

ARBOR ASSEMBLY, Drive

$

$

Not available

14

Simplicity LM-16057-46

WASHER, Belleville

$

$

Not available

15

Simplicity LM-16057-45

WASHER, Shoulder

$

$

Not available

16

Simplicity LM-16059-33

SCREW, Hex Cap (L.H. Thread) 1/2-20 x 1-1/2

$

$

Not available

16

Simplicity LM-16075-81

HOUSING ASSEMBLY (Not Shown)

$

$

Not available

17

Simplicity LM-09183-12

KEY, Woodruff, #61

$

$

Not available

18

Simplicity LM-16070-21

NUT, Hex Jam, 3/4-16

$

$

Not available

19

Simplicity LM-16028-81

PULLEY, Mower Spindle

$

$

Not available

20

Simplicity LM-01084-72

WASHER, Special

$

$

Not available

20

Simplicity LM-16087-05

TUBE ASSEMBLY, Arbor w/Bearing (Not Shown)

$

$

Not available

21

Simplicity LM-01081-34

RING, Backing

$

$

Not available

22

Simplicity LM-01082-02

BEARING

$

$

Not available

23

Simplicity LM-16086-64

TUBE ASSEMBLY, Drive

$

$

Not available

24

Simplicity LM-16022-65

SPACER

$

$

Not available

25

Simplicity LM-16075-33

ARBOR ASSEMBLY, Drive

$

$

Not available

26

Simplicity LM-16057-46

WASHER, Belleville

$

$

Not available

27

Simplicity LM-16057-45

WASHER, Shoulder

$

$

Not available

28

Simplicity LM-16059-33

SCREW, Hex Cap, (L.H. Thread) 1/2-24 x 1-1/2

$

$

Not available

29

Simplicity LM-01082-57

WASHER

$

$

Not available

30

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

31

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

32

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

33

Simplicity LM-16015-21

STOP, Belt

$

$

Not available

34

Simplicity LM-09194-14

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

35

Simplicity LM-09081-27

SCREW, Hex Cap, 3/8-16 x 3/4

$

$

Not available

36

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

37

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

38

Simplicity LM-16068-30

SHIELD, Arbor (L.H.)

$

$

Not available

39

Simplicity LM-09290-00

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

40

Simplicity LM-09193-60

SCREW, Hex Cap, 3/8-16 x 1-1/2

$

$

Not available

41

Simplicity LM-01083-86

PULLEY, Idler

$

$

Not available

42

Simplicity LM-16104-04

SPACER

$

$

Not available

43

Simplicity LM-09234-28

NUT, Hex, 3/8-16

$

$

Not available

44

Simplicity LM-01773-53

WASHER, Flat

$

$

Not available

44

Simplicity LM-01773-53

WASHER, Flat

$

$

Not available

45

Simplicity LM-16069-05

LEVER ASSEMBLY, idler

$

$

Not available

46

Simplicity LM-16015-20

BELT, Arbor Drive

$

$

Not available

46

Simplicity LM-16021-57

BELT, Arbor Drive

$

$

Not available

47

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

48

Simplicity LM-16073-71

SPACER, Threaded

$

$

Not available

49

Simplicity LM-16041-37

STUD

$

$

Not available

50

Simplicity LM-01773-52

WASHER, Flat

$

$

Not available

51

Simplicity LM-16069-79

BLADE, Mower, 32"

$

$

Not available

51

Simplicity LM-16069-71

BLADE, Mower, 36"

$

$

Not available

52

Simplicity LM-16083-30

GUARD DISCHARGE

$

$

Not available

52

Simplicity LM-16083-28

GUARD DISCHARGE

$

$

Not available

53

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

54

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

55

Simplicity LM-16083-31

CLIP, Baffle

$

$

Not available

56

Simplicity LM-07020-31

BOLT, Carriage

$

$

Not available

57

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

58

Simplicity LM-16081-88

BAFFLE, Mower, 32"

$

$

Not available

58

Simplicity LM-16083-12

BAFFLE, Mower, 36"

$

$

Not available

59

Simplicity LM-09077-27

SCREW, Hex, Cap, 1/4-20 x 5/8

$

$

Not available

60

Simplicity LM-16083-63

HOUSING, Mower, 32"

$

$

Not available

60

Simplicity LM-16083-62

HOUSING, Mower, 36"

$

$

Not available

61

Simplicity LM-09173-97

SCREW, Hex Cap, 5/16-18 x 3/4

$

$

Not available

62

Simplicity LM-09233-62

NUT, Hex Jam, 5/16-18

$

$

Not available

63

Simplicity LM-16083-95

SPRING, Idler

$

$

Not available

64

Simplicity LM-16069-69

STUD, Idler Spring

$

$

Not available

65

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

66

Simplicity LM-16015-58

CLIP, Baffle

$

$

Not available

67

Simplicity LM-16082-81

SUPPORT, Hinge

$

$

Not available

68

Simplicity LM-09194-13

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

69

Simplicity LM-16083-48

SPRING, torsion

$

$

Not available

70

Simplicity LM-16083-59

DEFLECTOR

$

$

Not available

71

Simplicity LM-16082-93

PIN, Hinge

$

$

Not available

72

Simplicity LM-01700-15

FASTENER, Pushnut

$

$

Not available

73

Simplicity LM-07020-08

BOLT, Carriage, 5/16-18 x 1-1/4

$

$

Not available

74

Simplicity LM-01576-43

WASHER, Special

$

$

Not available
