1600236 - Simplicity Dump Cart Dump Cart Parts Diagram

Dump Cart

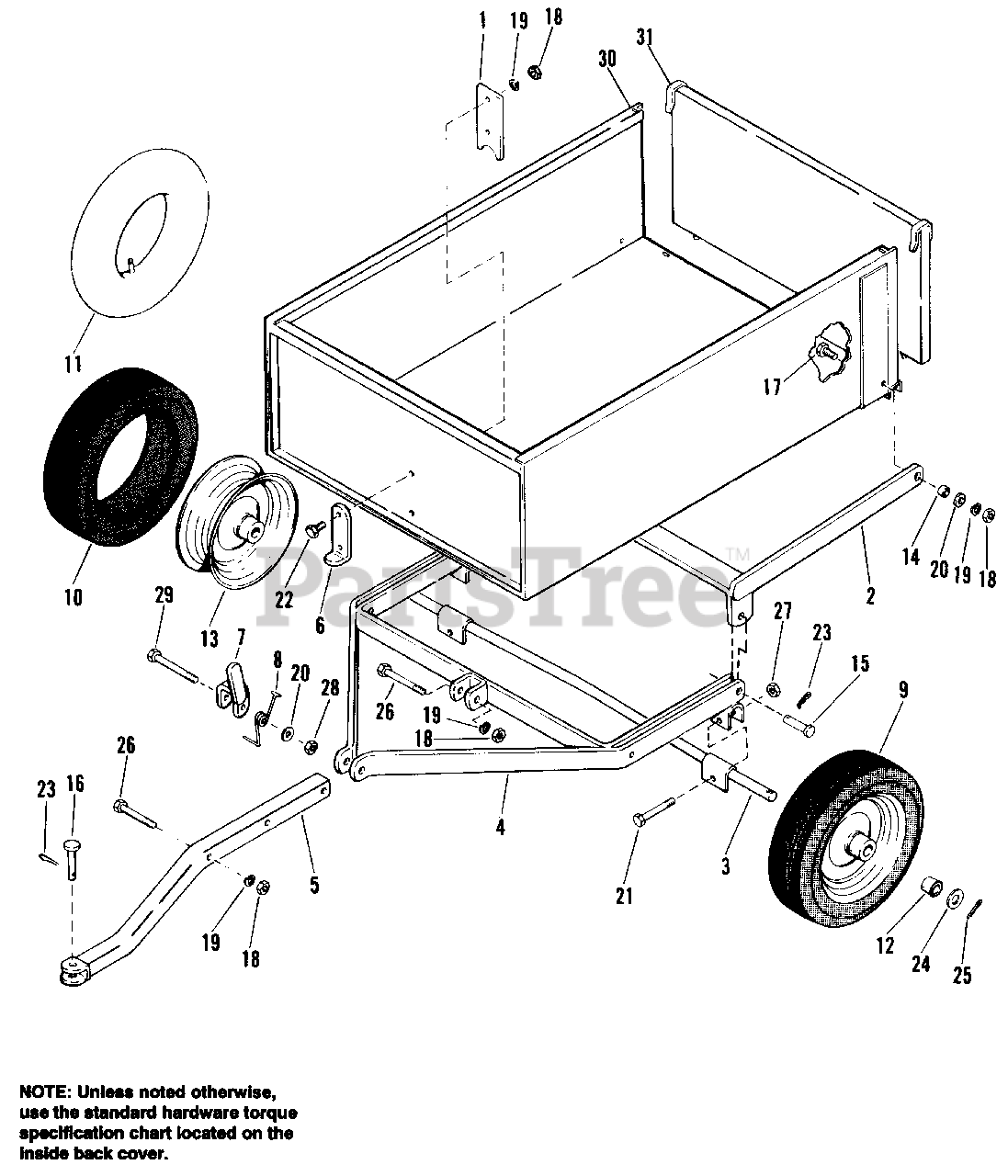

Dump Cart Parts Diagram

  • Title

1

Simplicity 2102005SM

PLATE, Box Guide

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 2102024SM

PIVOT ASSY., Box

$

$

Not available

3

Simplicity 2102027

AXLE ASSY.

$

$

Not available

4

Simplicity 2102035SM

FRAME ASSY.

$

$

Not available

5

Simplicity 2102037SM

TONGUE ASSY.

$

$

Not available

6

Simplicity 2102040SM

PLATE, Box Catch

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 2102051SM

CLEVIS ASSY.

$

$

Not available

8

Simplicity 2102075SM

SPRING, Torsion

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 1713992SM

WHEEL & TIRE ASSY., Dico Tires (Incl. Ref. Nos. 10, 11, 12, 13)

$131.99

$

Usually ships in 2-12 days

0

9

Simplicity 2170320

WHEEL & TIRE ASSY., Carlisle Tires (Incl. Ref. Nos. 10, 11, 12, 13)

$

$

Not available

10

Simplicity 1713994SM

TIRE, Dico

$

$

Not available

10

Simplicity 102052

TIRE, Carlisle

$

$

Not available

11

Simplicity 2153038SM

TUBE, 4.00 x 8

$35.99

$

Usually ships in 2-12 days

0

12

Simplicity 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

13

Simplicity 1713993SM

WHEEL

$88.99

$

Usually ships in 2-12 days

0

14

Simplicity 1729270SM

BUSHING

$

$

Not available

15

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

16

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

18

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

20

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

22

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1918433SM

WASHER, Plain, 3/4

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 1918459SM

PIN, Cotter, 3/16 x 1-1/2
(Superseded to 703983)

$4.49

$

In Stock, Qty 13

0

26

Simplicity 1922130SM

CAPSCREW, Hex, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1923362SM

NUT, Hex, Full, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

28

Simplicity 1930645SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

29

Simplicity 1930596SM

CAPSCREW, Hex, 3/8-16 x 2-3/4

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 1668478

TRAILER & END GATE ASSY.

$

$

Not available

31

Simplicity 1668462

GATE END

$

$

Not available
