1600225 - Simplicity 52" Snow Thrower Attachment 52" Snowthrower - Spout & Deflector Group Parts Diagram

52" Snow Thrower Attachment

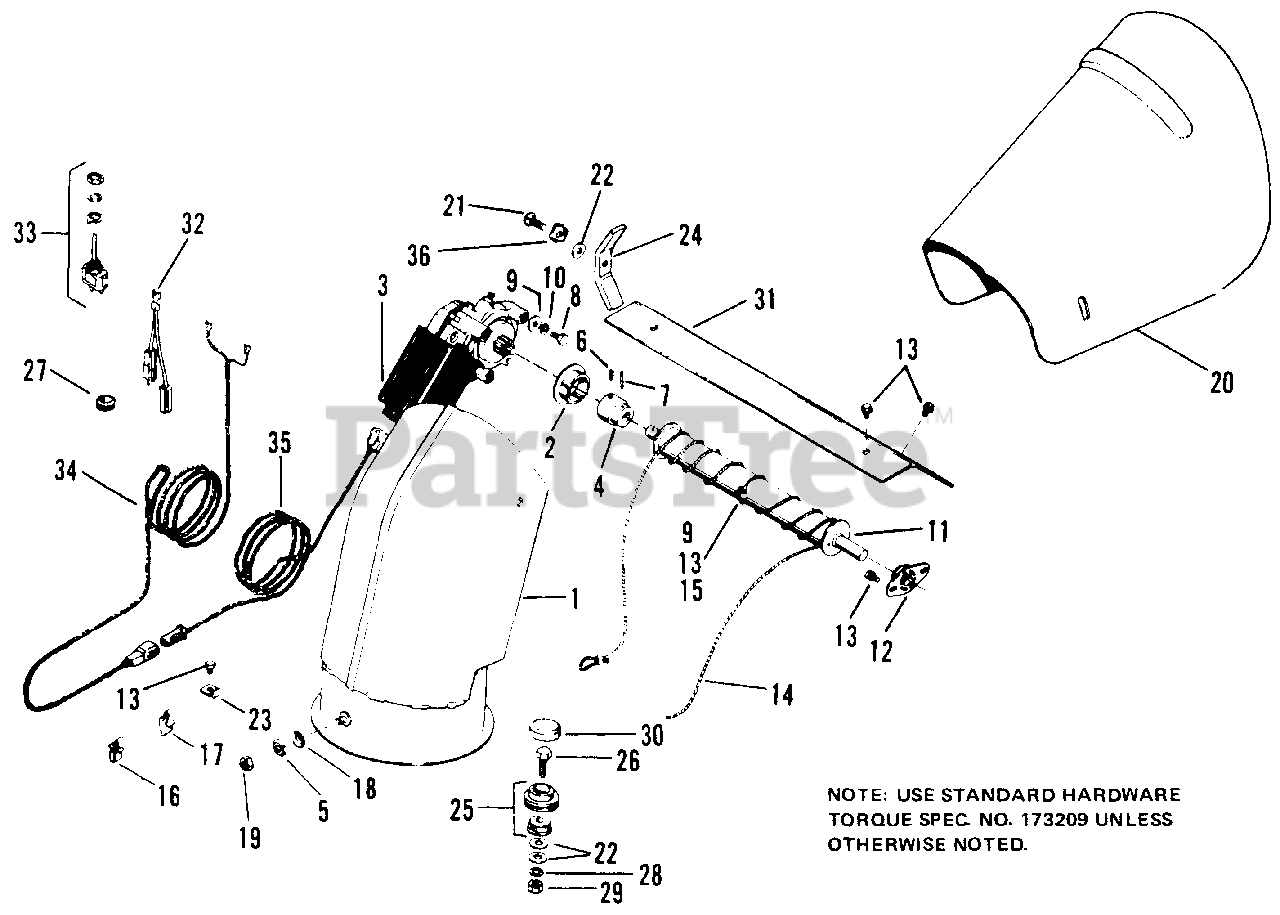

52" Snowthrower - Spout & Deflector Group Parts Diagram

  • Title

1

Simplicity 173305

SPOUT ASSY

$

$

Not available

2

Simplicity 2174072SM

BEARING, Flange

$

$

Not available

3

Simplicity 2173346

MOTOR, Spout Control

$

$

Not available

4

Simplicity 2174078SM

HUB

$56.99

$

Usually ships in 2-12 days

0

5

Simplicity 2106785

WASHER, Cup

$

$

Not available

6

Simplicity 2830547

SCREW, Hex, Skt. Hd., Cup Pt., No. 10-24 x 3/8, Gr. 8

$

$

Not available

7

Simplicity 2821450

PIN, Spring, 5/32 x 1

$

$

Not available

8

Simplicity 2816019

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

9

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

10

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

11

Simplicity 174074

TUBE ASSY, Spout Control

$

$

Not available

12

Simplicity 2171388SM

BEARING

$11.99

$

In Stock, only 1 left!

0

13

Simplicity 2827428

SCREW, Hex, Wshr. Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

14

Simplicity 174470

CABLE ASSY

$

$

Not available

15

Simplicity 2171382SM

CLAMP

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 2172434SM

CLIP, Cable

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172436SM

CLIP, Cable

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

19

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available

20

Simplicity 173331

EXTENSION, Spout

$

$

Not available

21

Simplicity 2822110

BOLT, Rd. Hd., Sh. Sq. Nk., 3/8-16 x 3/4

$

$

Not available

22

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 2106786

CLIP, Cable

$

$

Not available

24

Simplicity 173332

NUT, Wing

$

$

Not available

25

Simplicity 173809

PULLEY & BEARING ASSY

$

$

Not available

26

Simplicity 2817400

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

27

Simplicity 2172176SM

GROMMET, Rubber

$6.49

$

In Stock, only 2 left!

0

28

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

29

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

30

Simplicity 157530

CAP

$

$

Not available

31

Simplicity 174070

COVER, Chute Control

$

$

Not available

32

Simplicity 174505

WIRE, Chute (Control Switch to Ignition Switch)

$

$

Not available

33

Simplicity 2174428SM

SWITCH, Spout Control

$71.99

$

Usually ships in 2-12 days

0

34

Simplicity 174504

HARNESS ASSY, Switch

$

$

Not available

35

Simplicity 174503

HARNESS ASSY, Motor

$

$

Not available

36

Simplicity 2828710

LOCKWASHER, Pyramidal Type, 3/8

$

$

Not available
