1600225 - Simplicity 52" Snow Thrower Attachment 52" Snowthrower - Housing & Drive Group Parts Diagram

52" Snow Thrower Attachment

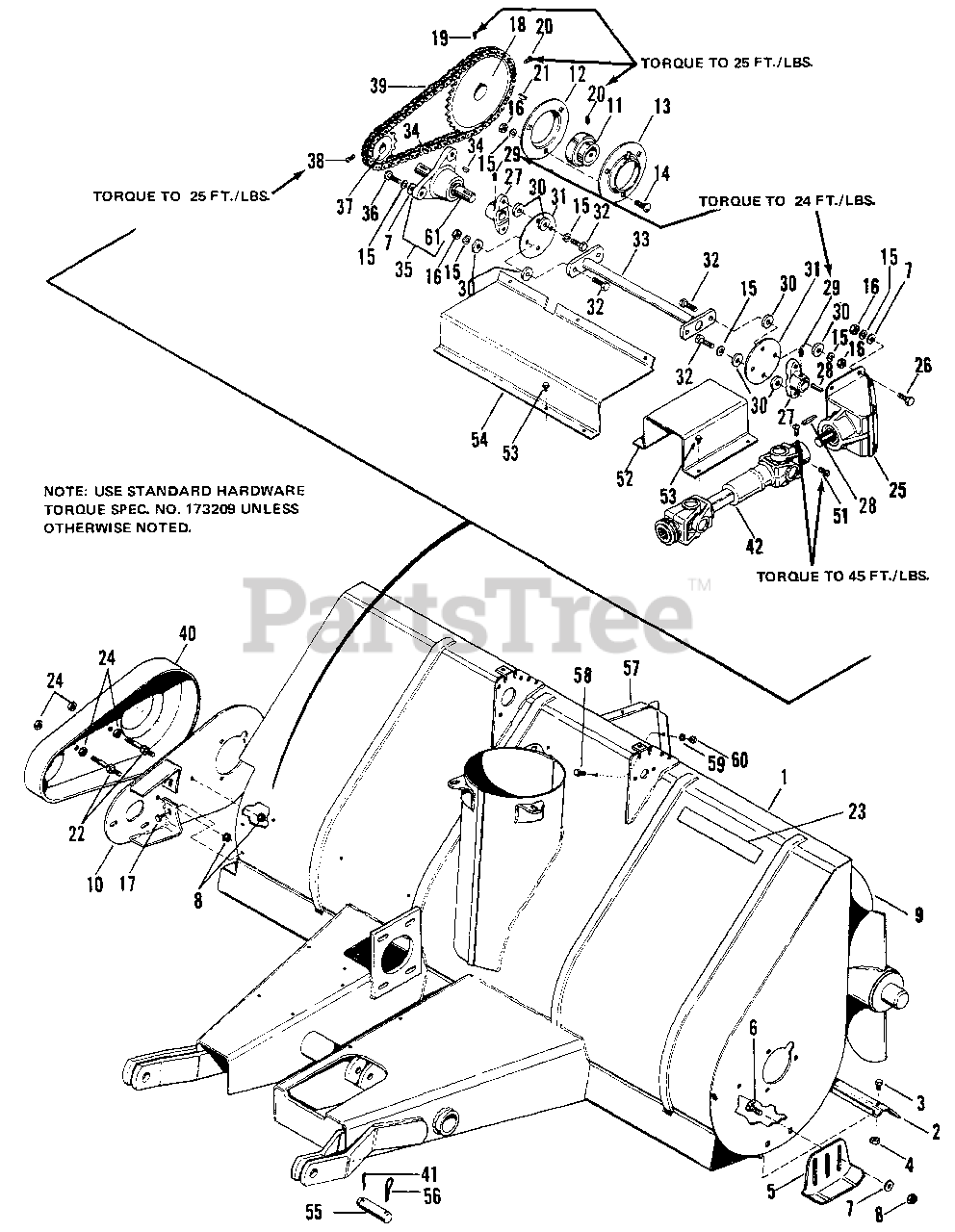

52" Snowthrower - Housing & Drive Group Parts Diagram

  • Title

1

Simplicity 173732

FRAME & BODY ASSY

$

$

Not available

2

Simplicity 177220

SCRAPER, Blade

$

$

Not available

3

Simplicity 2822126

CAPSCREW, Hex Hd., 5/16-18 x 3/4, Gr. 8

$

$

Not available

4

Simplicity 2828698

NUT, Hex, Full Lock, Jam, 5/16-18

$

$

Not available

5

Simplicity 178206

SKID & PLATE ASSY

$

$

Not available

6

Simplicity 2823490

CAPSCREW, Hex Hd., 3/8-16 x 1, Gr. 8

$

$

Not available

7

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 2828352

NUT, Flange, Hex, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 173640

ROTOR ASSY

$

$

Not available

10

Simplicity 174832

SIDE PLATE & BRACKET ASSY

$

$

Not available

11

Simplicity 174483

BEARING

$

$

Not available

12

Simplicity 174484

FLANGE

$

$

Not available

13

Simplicity 174485

FLANGE

$

$

Not available

14

Simplicity 2823232

BOLT, Rd. Hd., Sq. Nk,. 3/8-16 x 1

$

$

Not available

15

Simplicity 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

16

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

17

Simplicity 2824856

SCREW, Tapping, 5/16-18 x 1/2

$

$

Not available

18

Simplicity 173915

SPROCKET, 34 T

$

$

Not available

19

Simplicity 2830540

SCREW, Set, Sq. Hd., Cup Pt., 5/16-18 x 5/8, Gr. 8

$

$

Not available

20

Simplicity 2828721

SCREW, Set, Sq. Hd., Cup Pt., 5/16-18 x 1/2, Gr. 8
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

21

Simplicity 930673

KEY, Hi-Pro, 5/16 x 1

$

$

Not available

22

Simplicity 106711

STUD

$

$

Not available

23

Simplicity 2161247

DECAL, Safety

$

$

Not available

24

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

25

Simplicity 174403

BOX, Gear, 90 Degree

$

$

Not available

26

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

27

Simplicity 2154198ASM

FLANGE, Drive Shaft

$

$

Not available

28

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

29

Simplicity 2824624

SCREW, Set, Hex, Skt., 3/8-24 x 3/8

$

$

Not available

30

Simplicity 2157424SM

WASHER

$7.49

$

In Stock, Qty 5

0
