1600199 - Simplicity 48" Rotary Tiller Attachment 48" Rotary Tiller-Drive Group Parts Diagram

48" Rotary Tiller Attachment

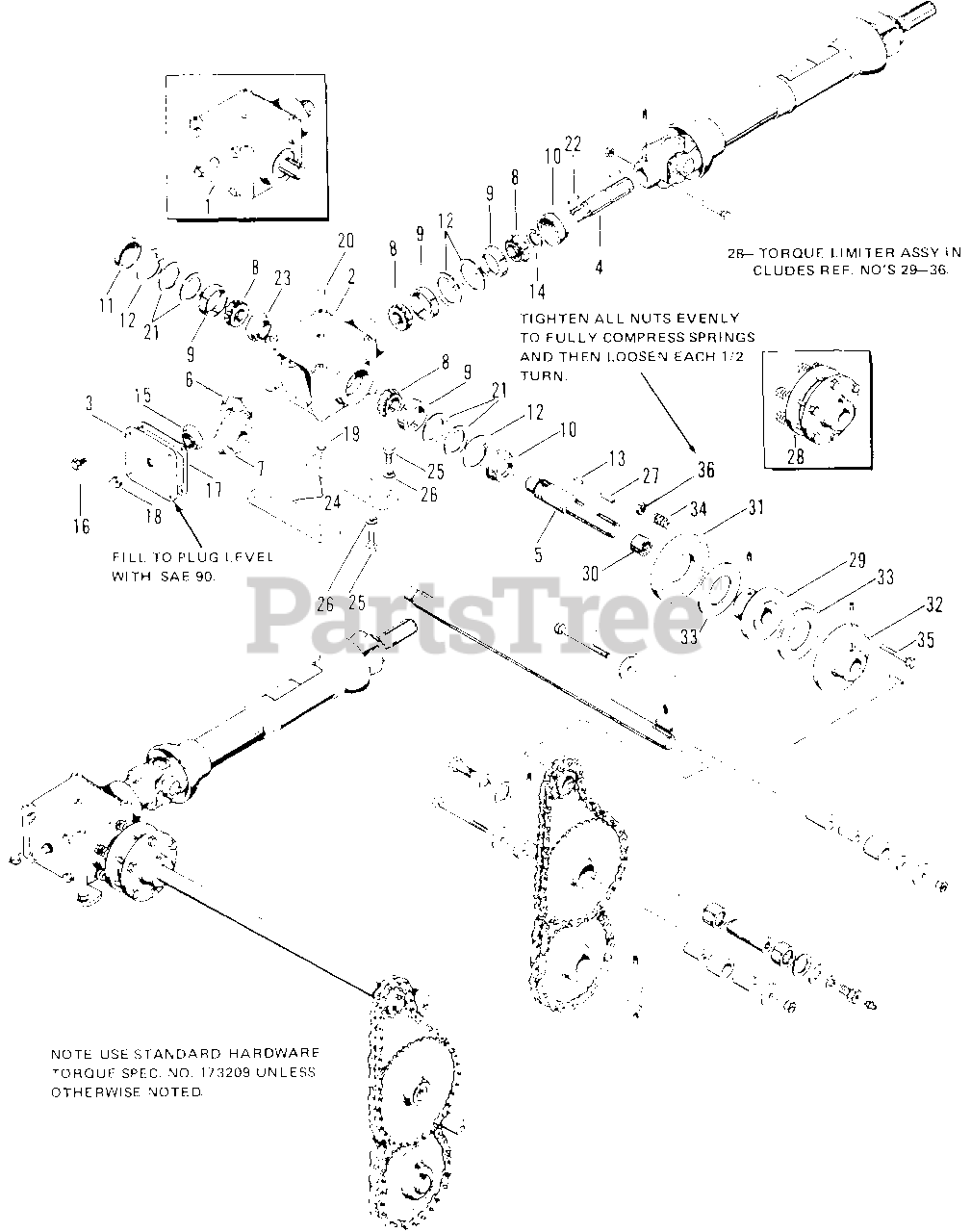

48" Rotary Tiller-Drive Group Parts Diagram

  • Title

1

Simplicity 172534

BOX, Gear

$

$

Not available

2

Simplicity 2173586SM

HOUSING

$512.99

$

Usually ships in 2-12 days

0

3

Simplicity 173587

COVER

$

$

Not available

4

Simplicity 173588

SHAFT, Input

$

$

Not available

5

Simplicity 173589

SHAFT, Output

$

$

Not available

6

Simplicity 173590

GEAR, 16 T

$

$

Not available

7

Simplicity 173591

GEAR, 24 T

$

$

Not available

8

Simplicity 2170835SM

CONE, Bearing

$

$

Not available

9

Simplicity 2170836SM

CUP, Bearing
(Superseded to 5020883SM)

$9.49

$

In Stock, Qty 9

0

10

Simplicity 2173592SM

SEAL

$59.99

$

Usually ships in 2-12 days

0

11

Simplicity 2173593SM

CAP

$54.99

$

Usually ships in 2-12 days

0

12

Simplicity 927700

RING, Retaining, 2" Internal

$

$

Not available

13

Simplicity 2805845

KEY, Woodruff, 1/4 x 7/8

$

$

Not available

14

Simplicity 2105194

RING, Retaining

$

$

Not available

15

Simplicity 173595

NUT, Stake

$

$

Not available

16

Simplicity 2817397

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

17

Simplicity 2173596SM

GASKET

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 901651

PIPE, Plug, Sq. Hd., Solid, 1/8

$

$

Not available

19

Simplicity 930674

PIPE, Plug, Cntrsk, Sq. Hd., 3/8

$

$

Not available

20

Simplicity 173597

PLUG, Vent

$

$

Not available

21

Simplicity 2173598SM

SHIM

$18.99

$

Usually ships in 2-12 days

0

22

Simplicity 173599

KEY

$

$

Not available

23

Simplicity 173600

NUT, Stake

$

$

Not available

24

Simplicity 172439

PLATE

$

$

Not available

25

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

26

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

27

Simplicity 177304

KEY

$

$

Not available

28

Simplicity 173412

LIMITER ASSY, Torque, (Includes Ref. No's 29-36)

$

$

Not available

29

Simplicity 173404

HUB ASSY, Clutch

$

$

Not available

30

Simplicity 158363

BUSHING

$

$

Not available

31

Simplicity 2173327SM

PLATE, Clutch

$59.99

$

Usually ships in 2-12 days

0

32

Simplicity 173328

FLANGE, Clutch

$

$

Not available

33

Simplicity 2173329SM

DISK, Clutch

$14.99

$

Usually ships in 2-12 days

0

34

Simplicity 2173575SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

35

Simplicity 2819355

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2

$

$

Not available

36

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available
