1600197 - Simplicity 57" Sickle Bar 57" Sickle Bar-Hitch Group Parts Diagram

57" Sickle Bar

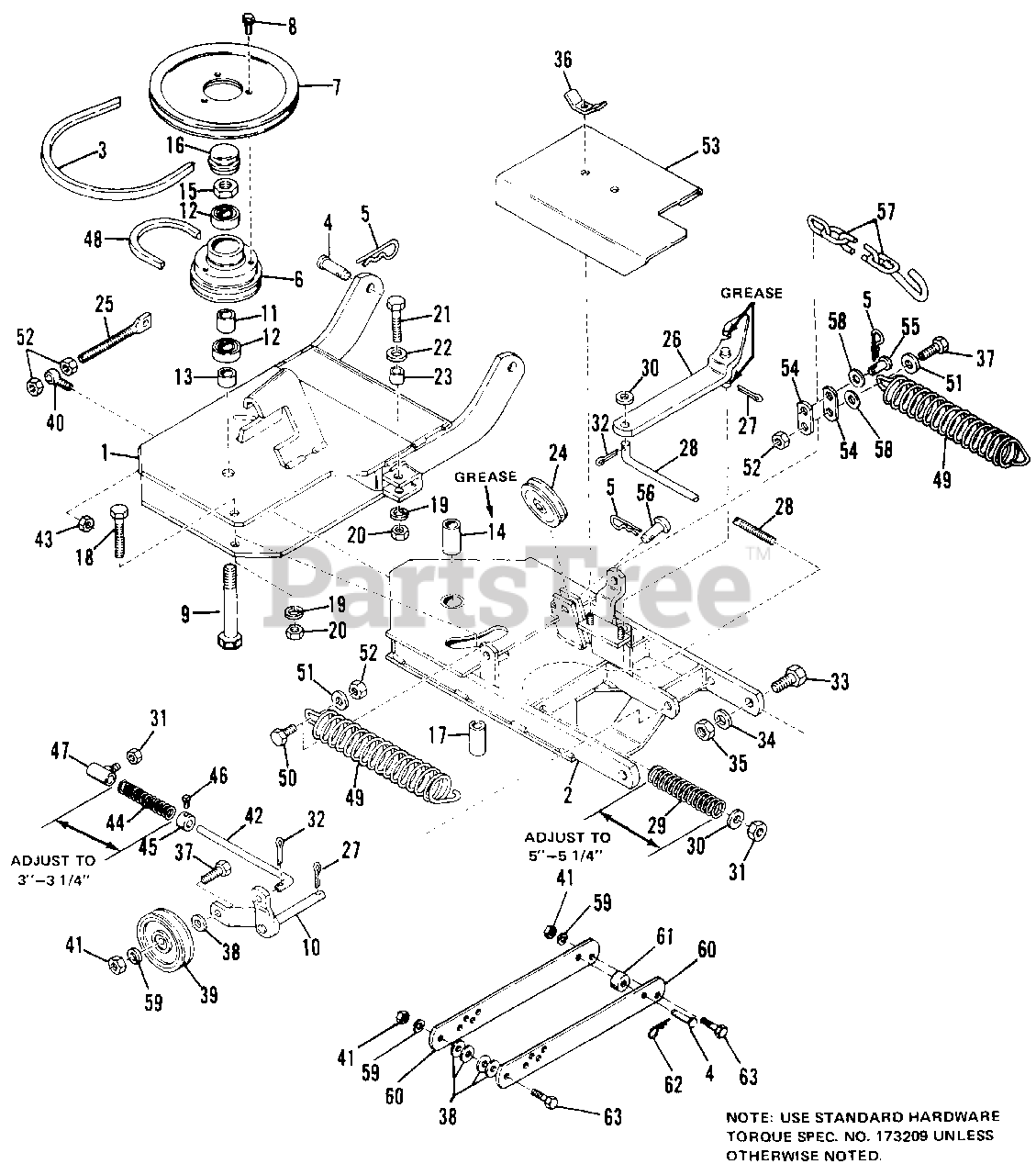

57" Sickle Bar-Hitch Group Parts Diagram

  • Title

1

Simplicity 173470

SUPPORT ASSY

$

$

Not available

2

Simplicity 173650

FRAME ASSY, R.H.

$

$

Not available

3

Simplicity 173461

BELT, "V"

$

$

Not available

4

Simplicity 153606

PIN

$

$

Not available

5

Simplicity 2106788

CLIP, Spring

$

$

Not available

6

Simplicity 173525

PULLEY

$

$

Not available

7

Simplicity 173607

PULLEY

$

$

Not available

8

Simplicity 2830601

SCREW, Hex, Wshr Hd., Taptite, 5/16-18 x 5/8

$

$

Not available

9

Simplicity 174741

BOLT ASSY

$

$

Not available

10

Simplicity 174187

LEVER ASSY

$

$

Not available

11

Simplicity 173101

SPACER

$

$

Not available

12

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

13

Simplicity 173100

SPACER

$

$

Not available

14

Simplicity 173019

SPACER

$

$

Not available

15

Simplicity 2826662

NUT, Hex, Full Lock, 3/4-10

$

$

Not available

16

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

17

Simplicity 173097

SPACER

$

$

Not available

18

Simplicity 920207

CAPSCREW, Hex Hd., 1/2-13 x 3

$

$

Not available

19

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

20

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

21

Simplicity 919369

CAPSCREW, Hex Hd., 1/2-13 x 2-1/4

$

$

Not available

22

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

23

Simplicity 173099

SPACER

$

$

Not available

24

Simplicity 101115

PULLEY

$

$

Not available

25

Simplicity 174743

BOLT ASSY

$

$

Not available

26

Simplicity 173580

LATCH ASSY

$

$

Not available

27

Simplicity 2818452

PIN, Cotter

$

$

Not available

28

Simplicity 173657

ROD

$

$

Not available

29

Simplicity 173658

SPRING

$

$

Not available

30

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

31

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available

32

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

33

Simplicity 924744

CAPSCREW, Hex Hd., 5/8-11 x 1-1/2

$

$

Not available

34

Simplicity 119018

WASHER

$

$

Not available

35

Simplicity 1930631SM

NUT, Hex, Full Lock, Jam

$

$

Not available

36

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

37

Simplicity 2817400

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

38

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 2106716

PULLEY, Idler

$

$

Not available

40

Simplicity 174211

BOLT, Eye

$

$

Not available

41

Simplicity 2816950SM

NUT, Hex, 3/16-18
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

42

Simplicity 174207

ROD

$

$

Not available

43

Simplicity 2830628

NUT, Hex, Lock, 3/8-24

$

$

Not available

44

Simplicity 1729277SM

SPRING

$6.99

$

In Stock, only 1 left!

0

45

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

46

Simplicity 2828804

SCREW, Set, Sq. Hd., Cup Pt., 1/4-20 x 3/8, Gr. 8

$

$

Not available

47

Simplicity 2164094SM

GUIDE ASSY, Rod

$45.99

$

Usually ships in 2-12 days

0

48

Simplicity 2173948

BELT, "V"

$

$

Not available

49

Simplicity 2101126SM

SPRING, Tension

$46.99

$

In Stock, only 1 left!

0

50

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

51

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

52

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

53

Simplicity 174316

COVER

$

$

Not available

54

Simplicity 108199

LINK, Mower Lift

$

$

Not available

55

Simplicity 1708298SM

PIN

$

$

Not available

56

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

57

Simplicity 174209

CHAIN ASSY

$

$

Not available

58

Simplicity 2153081

SPACER

$

$

Not available

59

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

60

Simplicity 174243

BAR, Lift

$

$

Not available

61

Simplicity 2174242SM

SPACER

$14.99

$

Usually ships in 2-12 days

0

62

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

63

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available
