1600173 - Homelite Vacuum Collector Roving Nozzle Group (3844I04) Parts Diagram

Vacuum Collector

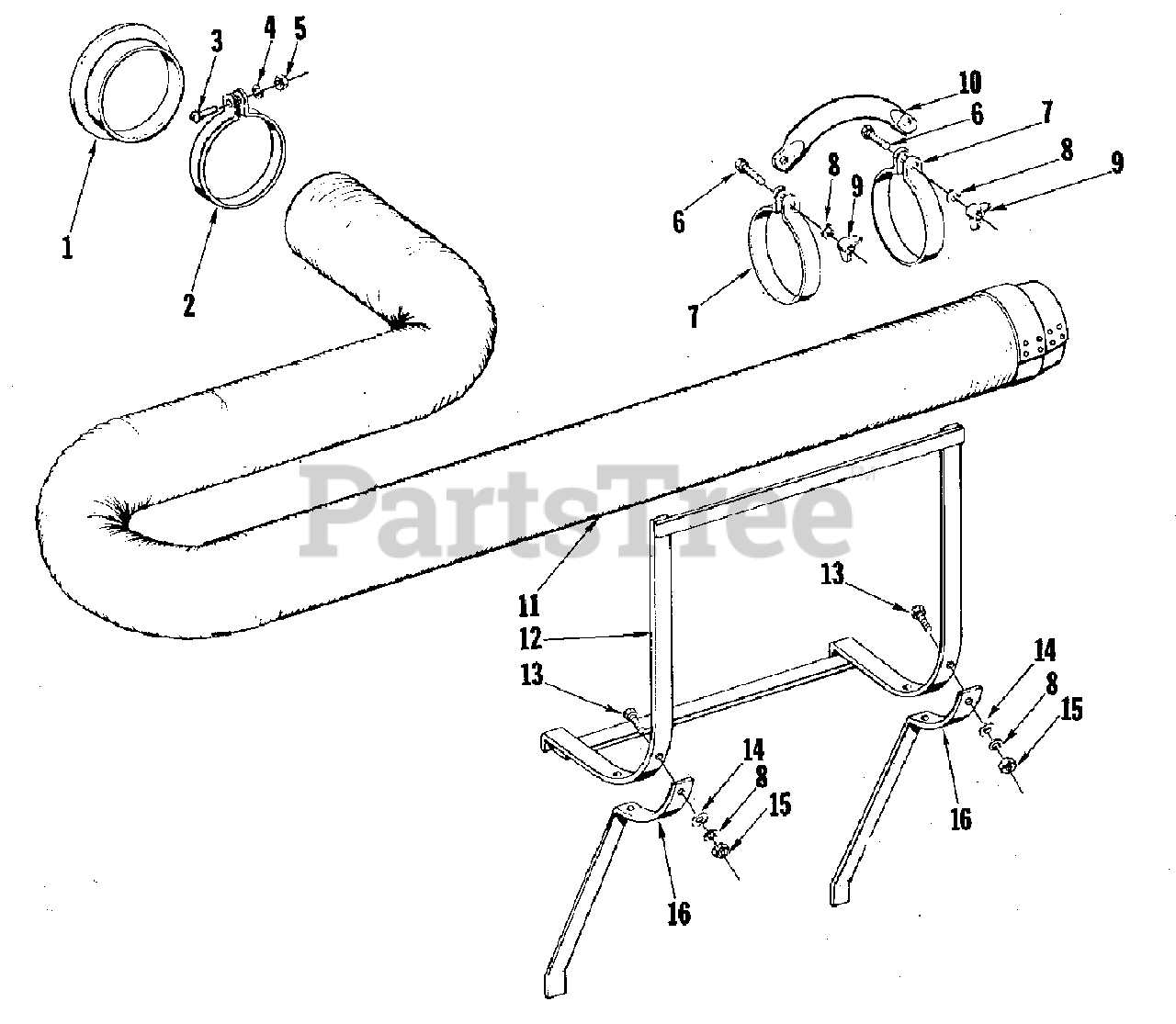

Roving Nozzle Group (3844I04) Parts Diagram

  • Title
1

Simplicity LM-01231-11

FLANGE, Hose

$

$

Not available

2

$

$

Not available

3

Simplicity LM-09258-26

SCREW, Machine, 1/4-20 x 3

$

$

Not available

4

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

5

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

6

Simplicity LM-09173-97

SCREW, Cap, 5/16-18 x 3/4

$

$

Not available

7

$

$

Not available

8

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

9

Simplicity LM-09184-68

NUT, Wing, 5/16-18

$

$

Not available

10

Simplicity LM-01231-29

HANDLE, Hose

$

$

Not available

11

Simplicity LM-01231-27

HOSE ASSEMBLY

$

$

Not available

12

Simplicity LM-01231-22

CARRIER ASSEMBLY, Hose

$

$

Not available

13

Simplicity LM-09193-19

SCREW, Cap, 5/16-18 x 7/8

$

$

Not available

14

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

15

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

16

Simplicity LM-01231-25

SUPPORT, Carrier

$

$

Not available
