1600173 - Homelite Vacuum Collector PTO Drive Group - Vacuum Collector (3844I01) Parts Diagram

Vacuum Collector

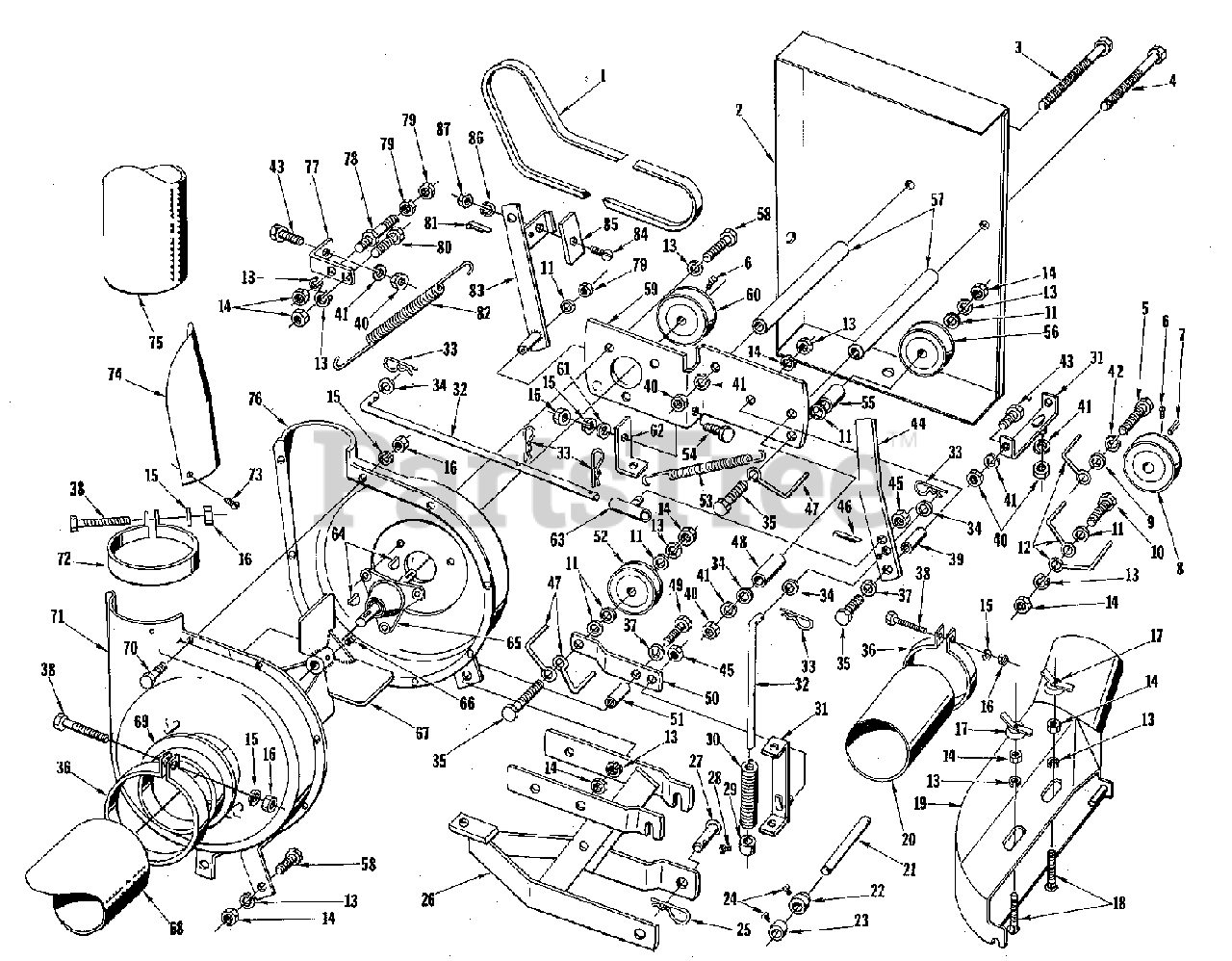

PTO Drive Group - Vacuum Collector (3844I01) Parts Diagram

  • Title

1

Simplicity LM-01650-48

BELT, "V", Drive

$

$

Not available

2

Simplicity LM-16056-59

COVER, Belt Drive

$

$

Not available

3

Simplicity LM-09193-55

SCREW, Cap, 5/16-18 x 2

$

$

Not available

4

Simplicity LM-09221-04

SCREW, Cap, 5/16-18 x 4

$

$

Not available

5

Simplicity LM-09234-71

SCREW, Cap, 7/16-14 x 1-1/4

$

$

Not available

6

Simplicity LM-09287-21

SCREW, Set, 5/16-18 x 1/2 Square Head Cup Point

$

$

Not available

7

Simplicity LM-09058-50

KEY, Parallel, Flat, 3/16 x 3/16 x 1

$

$

Not available

8

Simplicity LM-01642-02

PULLEY

$

$

Not available

9

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

10

Simplicity LM-09193-58

SCREW, Cap, 3/8-16 x 1-1/8

$

$

Not available

11

Simplicity LM-09249-40

WASHER, Flat, 13/32 x 7/8

$

$

Not available

12

Simplicity LM-16060-14

STOP, Belt

$

$

Not available

13

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

14

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

15

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

16

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

17

Simplicity LM-01230-60

NUT ASSEMBLY

$

$

Not available

18

Simplicity LM-07030-07

BOLT, Carriage

$

$

Not available

19

Simplicity LM-16056-87

ADAPTER, Vacuum Collector

$

$

Not available

20

Simplicity LM-01231-17

EXTENSION, Hose

$

$

Not available

21

Simplicity LM-16076-87

SHAFT, Lift

$

$

Not available

22

Simplicity LM-16075-53

COLLAR, Set

$

$

Not available

23

Simplicity LM-80210-10

COLLAR, Set

$

$

Not available

24

Simplicity LM-09287-09

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

25

Simplicity LM-81610-45

PIN, Quick

$

$

Not available

26

Simplicity LM-16074-53

SUPPORT ASSEMBLY, Blower Housing

$

$

Not available

27

Simplicity LM-01550-37

PIN

$

$

Not available

28

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 5/16

$

$

Not available

29

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

30

Simplicity LM-16024-05

SPRING, Compression

$

$

Not available

31

Simplicity LM-01584-06

GUIDE ASSEMBLY, Rod

$

$

Not available

32

Simplicity LM-16098-11

ROD, Control

$

$

Not available

33

Simplicity LM-01067-87

PIN, Quick

$

$

Not available

34

Simplicity LM-09284-74

WASHER, Flat, 11/32 x 7/8

$

$

Not available

35

Simplicity LM-09193-61

SCREW, Cap, 3/8-16 x 1-1/2

$

$

Not available

36

Simplicity LM-01230-65

CLAMP, Hose

$

$

Not available

37

Simplicity LM-09243-56

WASHER, Flat, 13/32 x 1-1/2

$

$

Not available

38

Simplicity LM-09174-56

SCREW, Machine, 1/4-20 x 2

$

$

Not available

39

Simplicity LM-16062-33

SPACER, Pivot

$

$

Not available

40

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

41

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

42

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

43

Simplicity LM-09173-97

SCREW, Cap, 5/16-18 x 3/4

$

$

Not available

44

Simplicity LM-16058-10

LEVER, PTO

$

$

Not available

45

Simplicity LM-09233-62

NUT, Hex, Lock, 5/16-18

$

$

Not available

46

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

47

Simplicity LM-16059-62

STOP, Belt

$

$

Not available

48

Simplicity LM-01561-49

SPACER

$

$

Not available

49

Simplicity LM-09166-07

SCREW, Cap, 3/8-16 x 3

$

$

Not available

50

Simplicity LM-16058-14

ARM, Idler

$

$

Not available

51

Simplicity LM-16058-15

PIVOT, Idler Arm

$

$

Not available

52

Simplicity LM-01010-96

PULLEY

$

$

Not available

53

Simplicity LM-16028-94

SPRING, Tension

$

$

Not available

54

Simplicity LM-09173-96

SCREW, Cap, 1/4-20 x 1

$

$

Not available

55

Simplicity LM-16104-16

SPACER

$

$

Not available

56

Simplicity LM-01083-86

PULLEY, Idler

$

$

Not available

57

Simplicity LM-01065-77

SPACER, Hood (R.H.)

$

$

Not available

58

Simplicity LM-09077-31

SCREW, Cap, 3/8-16 x 1

$

$

Not available

59

Simplicity LM-16083-46

BRACKET ASSEMBLY, Idler Support

$

$

Not available

60

Simplicity LM-16028-81

PULLEY

$

$

Not available

61

Simplicity LM-09182-64

WASHER, Flat, 1/4

$

$

Not available

62

Simplicity LM-01081-86

CLIP, Baffle

$

$

Not available

63

Simplicity LM-16043-19

GUIDE ASSEMBLY, Rod

$

$

Not available

64

Simplicity LM-09051-23

KEY, Woodruff, 3/16 x 3/4

$

$

Not available

65

Simplicity LM-01230-87

FLANGE ASSEMBLY, Shaft & Bearing

$

$

Not available

66

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16 Cup Point

$

$

Not available

67

Simplicity LM-01230-15

FAN ASSEMBLY

$

$

Not available

68

Simplicity LM-01742-65

HOSE, Intake

$

$

Not available

69

Simplicity LM-01231-11

FLANGE, Hose

$

$

Not available

70

Simplicity LM-09082-95

SCREW, Cap, 1/4-20 x 1/2

$

$

Not available

71

Simplicity LM-16057-97

HOUSING ASSEMBLY, Inlet Half

$

$

Not available

72

Simplicity LM-01230-67

CLAMP, Hose

$

$

Not available

73

Simplicity LM-09198-04

SCREW, Self Tapping, #10 x 3/8

$

$

Not available

74

Simplicity LM-01231-07

DEFLECTOR

$

$

Not available

75

Simplicity LM-01742-64

HOSE, Exhaust

$

$

Not available

76

Simplicity LM-16058-00

HOUSING ASSEMBLY, Blower Half

$

$

Not available

77

Simplicity LM-16056-60

BRACKET, Cover

$

$

Not available

78

Simplicity LM-01083-72

STUD

$

$

Not available

79

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

80

Simplicity LM-09174-00

SCREW, Cap, 3/8-16 x 1-1/4

$

$

Not available

81

Simplicity LM-09184-58

PIN, Cotter, 3/16 x 1

$

$

Not available

82

Simplicity LM-16033-48

SPRING, Tension

$

$

Not available

83

Simplicity LM-16059-61

LEVER ASSEMBLY, Brake

$

$

Not available

84

Simplicity LM-09262-67

SCREW, Machine, #10-24 x 5/8

$

$

Not available

85

Simplicity LM-16105-90

BRACKE, Sheave

$

$

Not available

86

Simplicity LM-09173-65

WASHER, Lock, #10

$

$

Not available

87

Simplicity LM-09162-21

NUT, Hex, #10-24

$

$

Not available
