1600169 - Simplicity 46" Dozer Blade Dozer Blade Group - 46" (3851I01) Parts Diagram

46" Dozer Blade

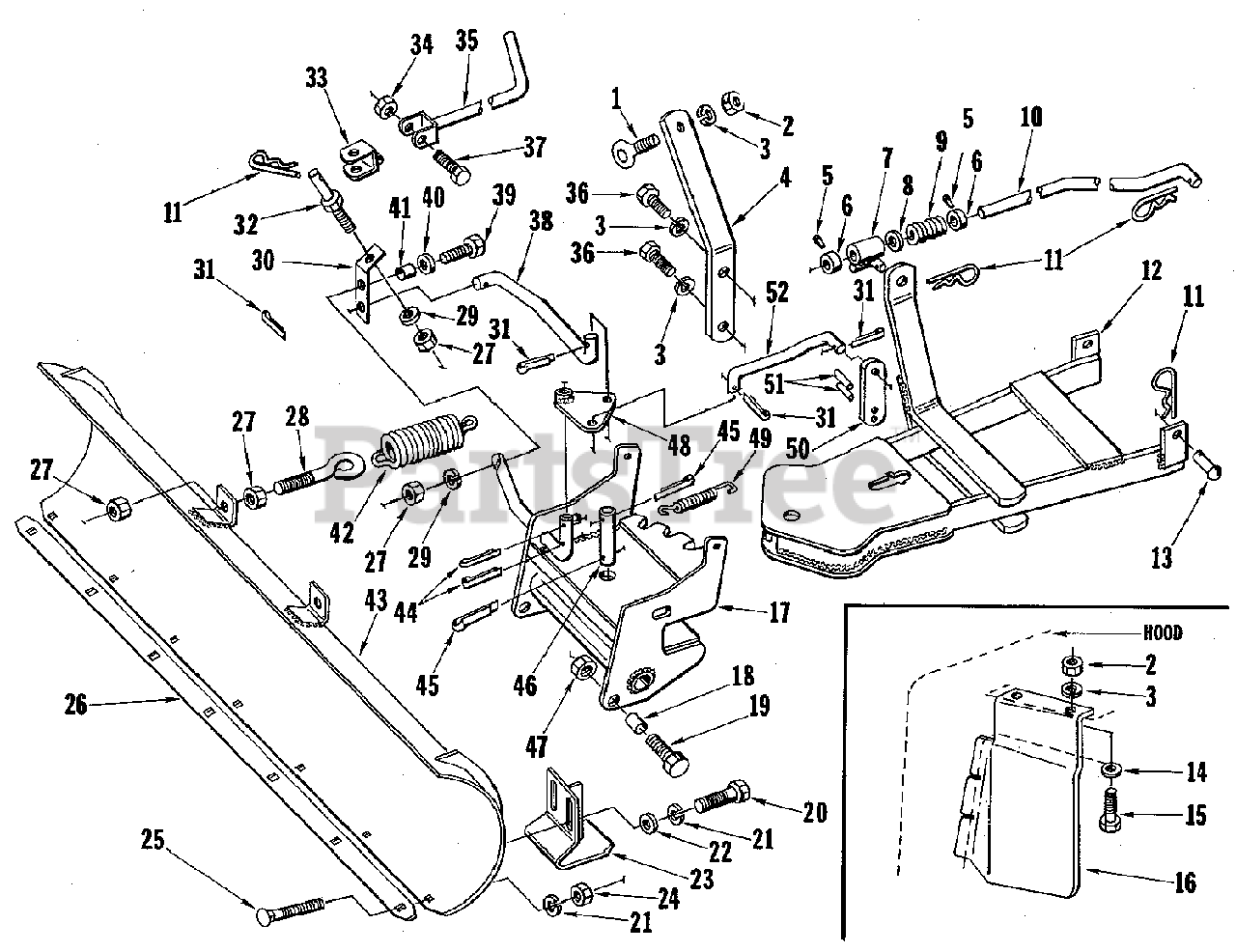

Dozer Blade Group - 46" (3851I01) Parts Diagram

  • Title

1

Simplicity LM-01721-62

BOLT, Eye

$

$

Not available

2

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

3

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

4

Simplicity LM-16066-46

BRACKET, Handle Support

$

$

Not available

5

Simplicity LM-09287-09

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

6

Simplicity LM-80310-07

COLLAR, Set

$

$

Not available

7

Simplicity LM-01716-79

GUIDE ASSEMBLY, Rod

$

$

Not available

8

Simplicity LM-09169-60

WASHER, Flat, 17/32 x 1-1/4

$

$

Not available

9

Simplicity LM-01710-11

SPRING

$

$

Not available

10

Simplicity LM-16066-35

ROD, Front Lift

$

$

Not available

11

Simplicity LM-01067-88

PIN, Quick, 1/8

$

$

Not available

12

Simplicity LM-16066-30

BAR ASSEMBLY, Push

$

$

Not available

13

Simplicity LM-01180-53

PIN, Hitch

$

$

Not available

14

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

15

Simplicity LM-09082-95

SCREW, Cap, 1/4-20 x 1/2

$

$

Not available

16

Simplicity LM-16074-23

DEFLECTOR, Snow

$

$

Not available

17

Simplicity LM-01740-54

FRAME ASSEMBLY, Pivot

$

$

Not available

18

Simplicity LM-01050-51

SPACER

$

$

Not available

19

Simplicity LM-09203-28

SCREW, Cap, 1/2-13 x 1-1/2

$

$

Not available

20

Simplicity LM-09081-27

SCREW, Cap, 3/8-16 x 3/4

$

$

Not available

21

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

22

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

23

Simplicity LM-01071-06

SHOE ASSEMBLY

$

$

Not available

24

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

25

Simplicity LM-09232-32

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

26

Simplicity LM-01071-05

PLATE, Wear

$

$

Not available

27

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

28

Simplicity LM-01071-21

BOLT, Eye

$

$

Not available

29

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

30

Simplicity LM-01071-19

ARM, Pivot

$

$

Not available

31

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

32

Simplicity LM-01071-20

STUD, Pivot

$

$

Not available

33

Simplicity LM-01061-31

FORK ASSEMBLY

$

$

Not available

34

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

35

Simplicity LM-16074-72

ROD ASSEMBLY, Control

$

$

Not available

36

Simplicity LM-09077-27

SCREW, Cap, 1/4-20 x 5/8

$

$

Not available

37

Simplicity LM-09199-33

SCREW, Cap, 5/16-18 x 1-1/2

$

$

Not available

38

Simplicity LM-01071-18

ROD, Pivot

$

$

Not available

39

Simplicity LM-09164-31

SCREW, Cap, 5/16-18 x 1

$

$

Not available

40

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

41

Simplicity LM-01561-50

SPACER

$

$

Not available

42

Simplicity LM-01011-26

SPRING

$

$

Not available

43

Simplicity LM-01070-96

BLADE ASSEMBLY, 46"

$

$

Not available

44

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

45

Simplicity LM-09193-14

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

46

Simplicity LM-01740-66

PIN, Pivot

$

$

Not available

47

Simplicity LM-09221-34

NUT, Hex Lock, 1/2-13

$

$

Not available

48

Simplicity LM-01071-16

PLATE ASSEMBLY, Pivot

$

$

Not available

49

Simplicity LM-01071-35

SPRING, Latch

$

$

Not available

50

Simplicity LM-01740-73

LATCH

$

$

Not available

51

Simplicity LM-09214-69

PIN, Roll, 7/32 x 1

$

$

Not available

52

Simplicity LM-01071-36

ROD, Latch

$

$

Not available
