1600162 - Simplicity 36" Dozer Blade Front Blade Group - 36" and Lift Lever (3849I01) Parts Diagram

36" Dozer Blade

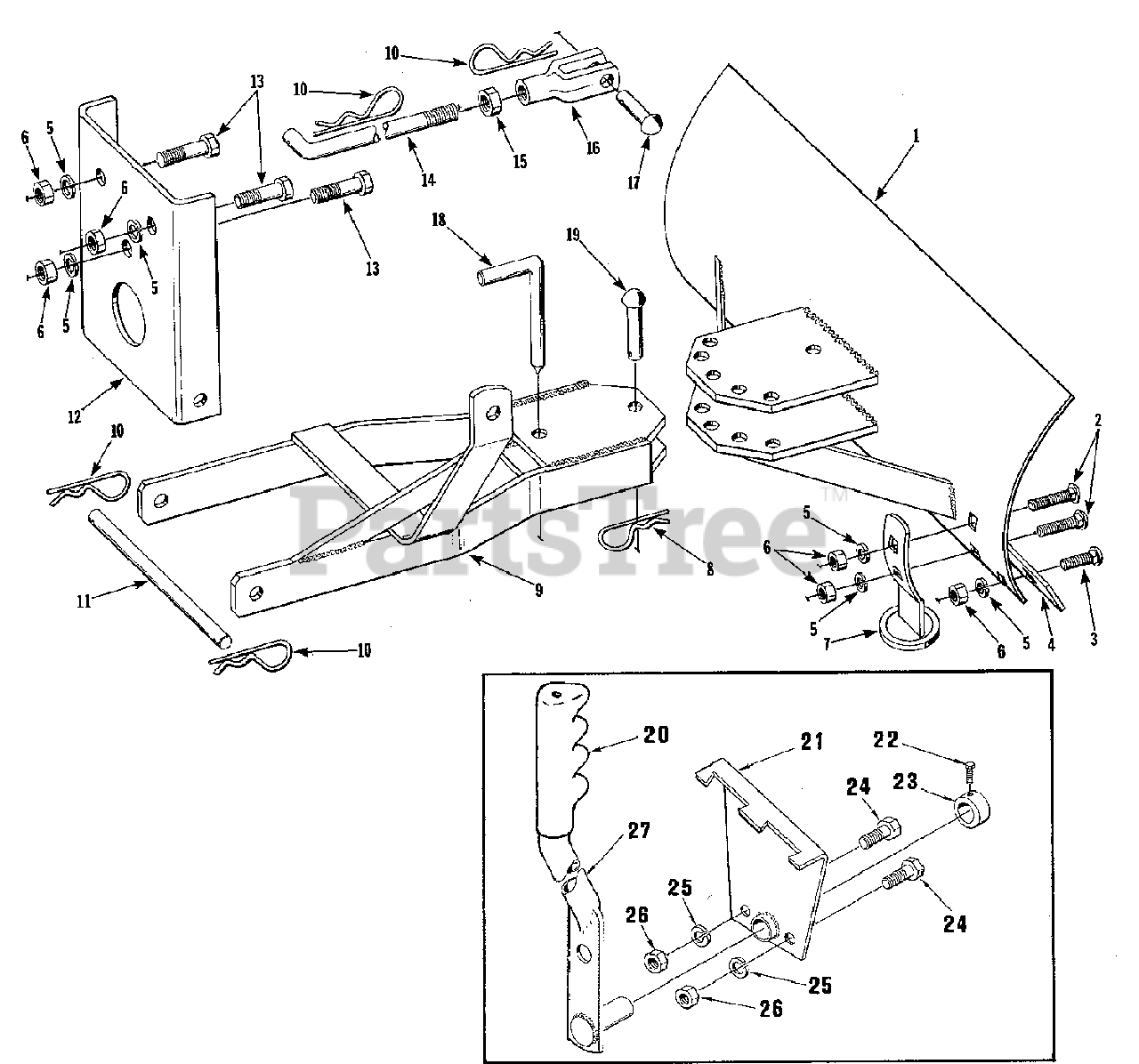

Front Blade Group - 36" and Lift Lever (3849I01) Parts Diagram

  • Title

1

Simplicity LM-16035-99

BLADE ASSEMBLY, 36"

$

$

Not available

2

Simplicity LM-09232-32

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

3

Simplicity LM-09221-10

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

4

Simplicity LM-16036-06

PLATE, Wear

$

$

Not available

5

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

6

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

7

Simplicity LM-16035-73

SHOE ASSEMBLY

$

$

Not available

8

Simplicity LM-01067-88

PIN, Quick

$

$

Not available

9

Simplicity LM-16035-70

BAR ASSEMBLY, Push

$

$

Not available

10

Simplicity LM-81610-45

PIN, Quick

$

$

Not available

11

Simplicity LM-16036-03

ROD, Pivot

$

$

Not available

12

Simplicity LM-16073-14

SUPPORT, Front Blade

$

$

Not available

13

Simplicity LM-09199-59

SCREW, Cap, 3/8-16 x 2-3/4

$

$

Not available

14

Simplicity LM-16073-13

ROD, Lift

$

$

Not available

15

Simplicity LM-09192-62

NUT, Hex Jam, 1/2-20

$

$

Not available

16

Simplicity LM-01576-31

YOKE, Rod End Adjacent, 1/2-20

$

$

Not available

17

Simplicity LM-01543-05

PIN, Yoke, 1/2

$

$

Not available

18

Simplicity LM-16036-01

PIN, Pivot

$

$

Not available

19

Simplicity LM-16036-02

PIN, King

$

$

Not available

20

Simplicity LM-16104-69

GRIP, Handle

$

$

Not available

21

Simplicity LM-16073-08

QUADRANT, Lift

$

$

Not available

22

Simplicity LM-09117-12

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

23

Simplicity LM-80210-10

COLLAR, Set

$

$

Not available

24

Simplicity LM-09193-18

SCREW, Cap, 5/16-18 x 5/8

$

$

Not available

25

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

26

Simplicity LM-09173-72

NUT, Hex, 5/16

$

$

Not available

27

Simplicity LM-16073-10

LEVER, Lift

$

$

Not available
