1600150 - AGCO Scamp Rear-Engine Riding Mower, 5hp 24" Mower Housing & Arbor Group Parts Diagram

Scamp Rear-Engine Riding Mower, 5hp

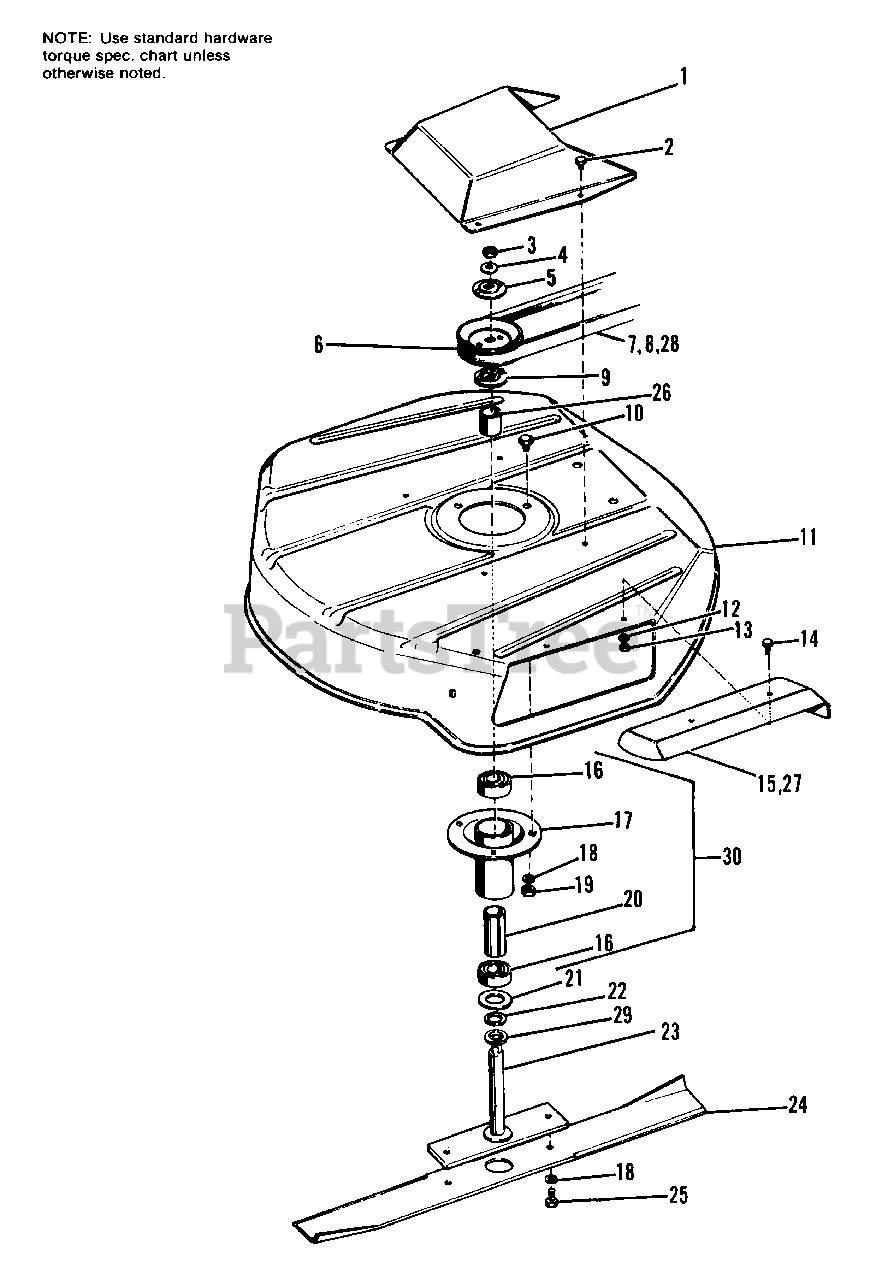

24" Mower Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 108402

GUARD, Belt

$

$

Not available

2

Simplicity 2827428

SCREW, Hex, Washer Hd, Taptite, 1/4-20 x 4 3/8

$

$

Not available

3

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

5

Simplicity 2158378SM

WASHER, Special

$

$

Not available

6

Simplicity 1609004SM

PULLEY

$70.99

$

Usually ships in 2-12 days

0

7

Simplicity 2106016

BELT, V

Note: Used on Mfg. No. 990391.

$

$

Not available

8

Simplicity 2108407

BELT, V

Note: Used on Mfg. No. 990357.

$

$

Not available

9

Simplicity 108399

SPACER

$

$

Not available

10

Simplicity 2808127

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$

$

Not available

11

Simplicity 108403

HOUSING, 24"

$

$

Not available

12

Simplicity 921880

LOCKWASHER, Ext., 1/4

$

$

Not available

13

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2808295

CAPSCREW, Hex Hd, 1/4-20 x 1/2

$

$

Not available

15

Simplicity 108404

DEFLECTOR

$

$

Not available

16

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 2108203

TUBE ASSY, Arbor

$

$

Not available

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

19

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

20

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 1 left!

0

21

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

22

Simplicity 2108181

WASHER

$

$

Not available

23

Simplicity 108397

ARBOR ASSY

$

$

Not available

24

Simplicity 108276

BLADE, 24"

$

$

Not available

25

Simplicity 2821965

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$

$

Not available

26

Simplicity 108399

SPACER

Note: Used on Mfg. No. 990554.

$

$

Not available

27

Simplicity 158519

DEFLECTOR

Note: Used on Mfg. No. 990554.

$

$

Not available

28

Simplicity 2108248SM

BELT, V

Note: Used on Mfg. No. 990554.

$31.99

$

In Stock, only 1 left!

0

29

Simplicity 2108472

WASHER

Note: Used on Mfg. No. 990554.

$

$

Not available

30

Simplicity 1650533SM

ARBOR ASSY, W/Bearings & Hardware

Note: Ref. No 30 includes Ref. Nos. 16, 17, 18, 19 & 20. Used on Mfg. No. 990357. Used on Mfg. No. 990357. Used on Mfg. No. 990357.

$237.99

$

Usually ships in 2-12 days

0
