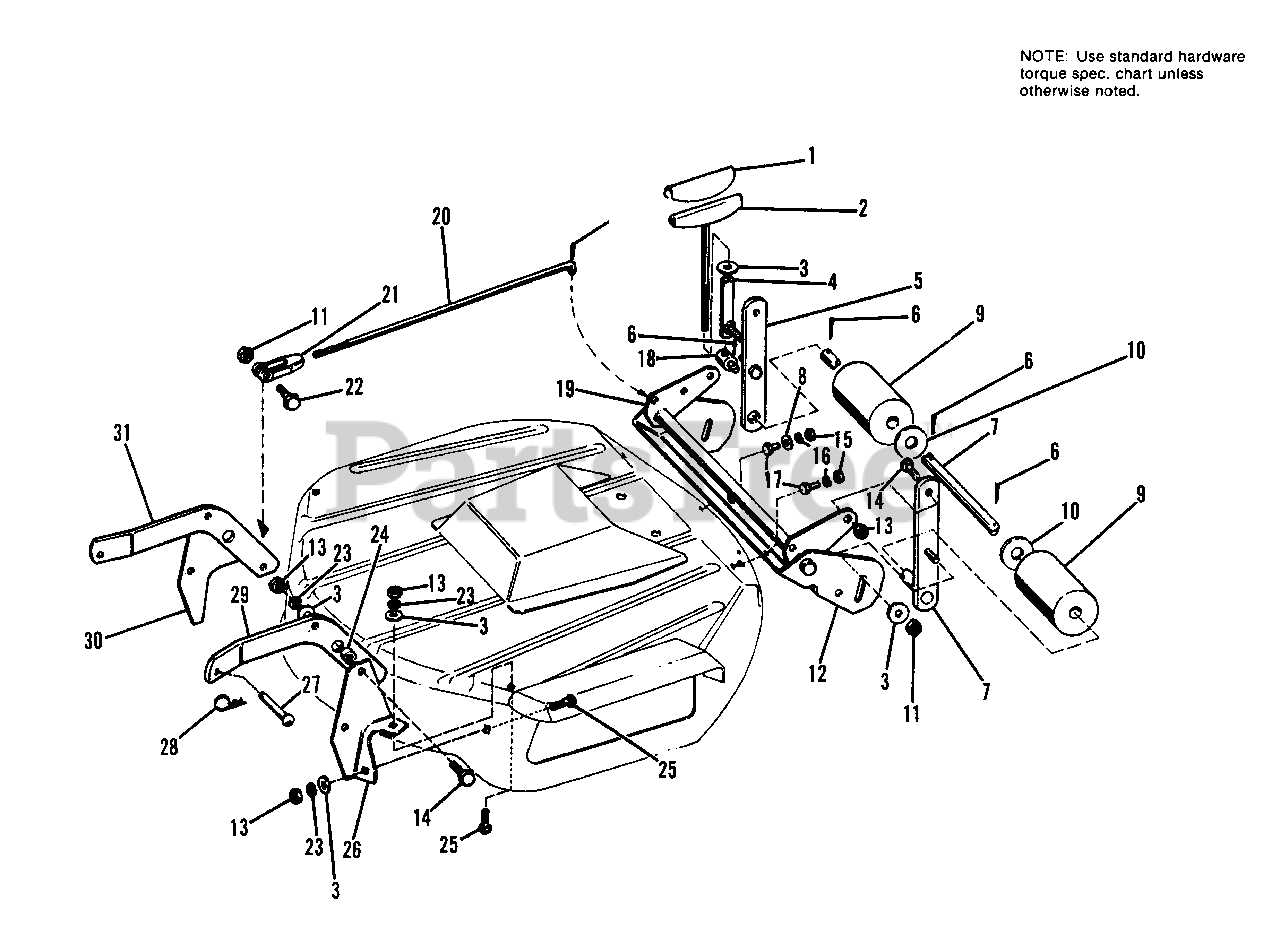

1600150 - AGCO Scamp Rear-Engine Riding Mower, 5hp 24" Mower Controls & Misc. Group Parts Diagram

Scamp Rear-Engine Riding Mower, 5hp

24" Mower Controls & Misc. Group Parts Diagram

  • Title
1

Simplicity 106516

COVER, Handle

$

$

Not available

2

Simplicity 2108415

SCREW ASSY., Adjusting

$

$

Not available

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 108287

SOCKET ASSY., Crank

$

$

Not available

5

Simplicity 108278

BAR ASSY., Roller

$

$

Not available

6

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

7

Simplicity 108277

ROLLER BAR & SHAFT ASSY.

$

$

Not available

8

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

$10.99

$

In Stock, Qty 20+

0

10

$

$

Not available

11

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 108270

BRACKET, Roller

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

15

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

$

$

Not available

19

Simplicity 108283

LEVER ASSY., Rear

$

$

Not available

20

Simplicity 108286

ROD, Height Adjusting

$

$

Not available

21

Simplicity 2108157SM

CLEVIS, Adjusting

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 2828726

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

23

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

$39.99

$

In Stock, only 1 left!

0

25

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

26

Simplicity 108274

BRACKET, Front, L.H.

$

$

Not available

$18.99

$

In Stock, Qty 9

0

28

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 108272

LEVER, Front, L.H.

$

$

Not available

30

Simplicity 108273

BRACKET, Front, R.H.

$

$

Not available

31

Simplicity 108271

LEVER, Front, R.H.

$

$

Not available
