1600144 - Simplicity 40" Grade Blade Grader Blade Group - 40" (3847I01) Parts Diagram

40" Grade Blade

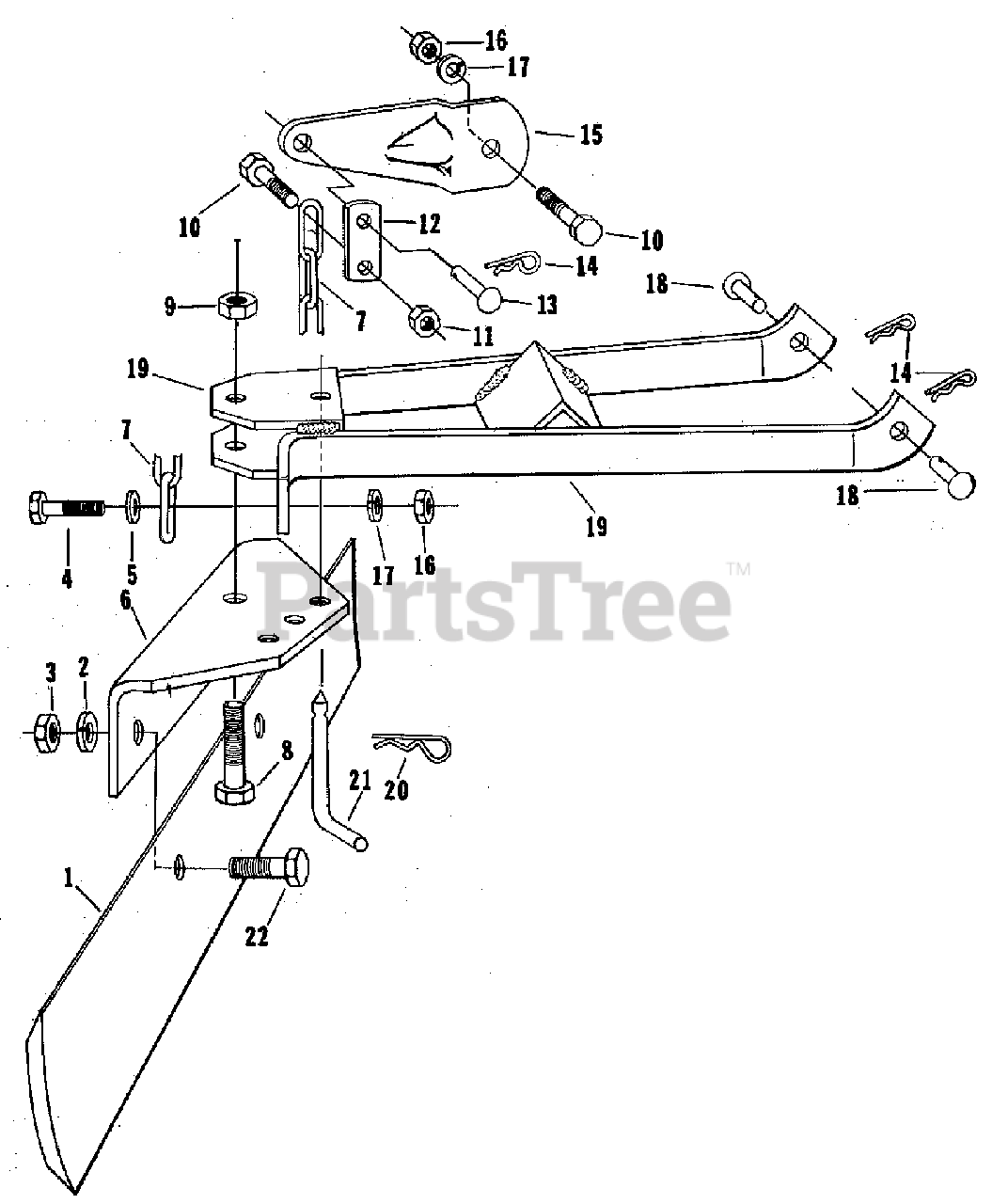

Grader Blade Group - 40" (3847I01) Parts Diagram

  • Title

1

Simplicity LM-01070-80

BLADE, Grader, 40"

$

$

Not available

2

Simplicity LM-09173-73

WASHER, Lock, 5/8

$

$

Not available

3

Simplicity LM-09157-26

NUT, Hex, 5/8-11

$

$

Not available

4

Simplicity LM-09174-00

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

5

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

6

Simplicity LM-01070-81

BRACKET

$

$

Not available

7

Simplicity LM-01070-31

CHAIN

$

$

Not available

8

Simplicity LM-09221-18

SCREW, Hex Cap, 5/8-11 x 3

$

$

Not available

9

Simplicity LM-09233-53

NUT, Hex, 5/8-11

$

$

Not available

10

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

11

Simplicity LM-09234-28

NUT, Hex, 3/8-16

$

$

Not available

12

Simplicity LM-01081-99

LINK

$

$

Not available

13

Simplicity LM-01530-58

PIN

$

$

Not available

14

Simplicity LM-81610-45

PIN, Quick

$

$

Not available

15

Simplicity LM-01083-85

LEVER, Mower Lift

$

$

Not available

16

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

17

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

18

Simplicity LM-01563-06

PIN

$

$

Not available

19

Simplicity LM-16065-87

BAR ASSEMBLY, Pull

$

$

Not available

20

Simplicity LM-80210-24

PIN, Quick

$

$

Not available

21

Simplicity LM-81810-08

PIN, King

$

$

Not available

22

Simplicity LM-09193-75

SCREW, Cap, 5/8-11 x 2

$

$

Not available
