1600126 - Simplicity 32" Mower Deck Hitch and Rollers Group (3842I02) Parts Diagram

32" Mower Deck

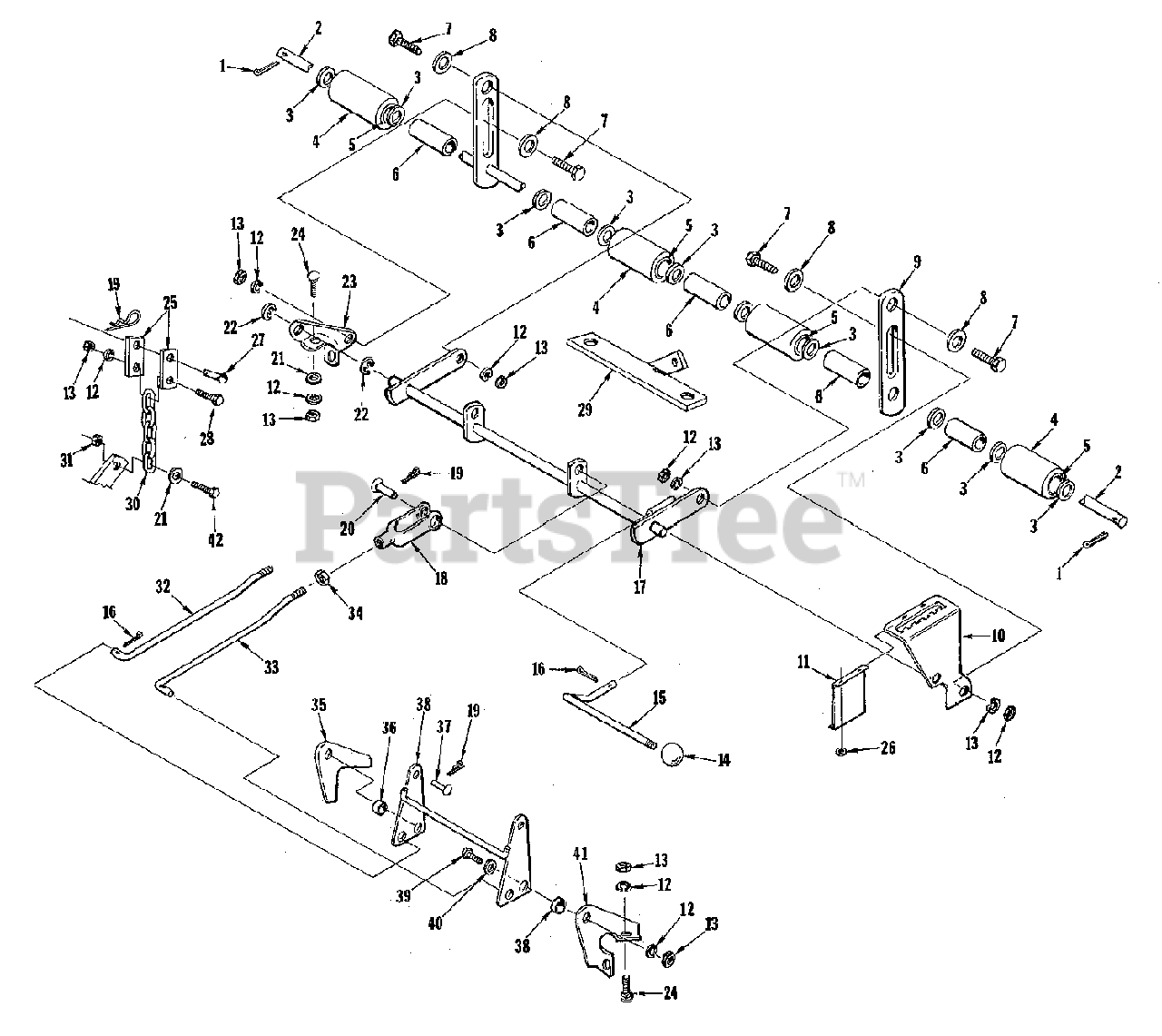

Hitch and Rollers Group (3842I02) Parts Diagram

  • Title
1

Simplicity LM-09184-58

PIN, Cotter, 3/16 x 1

$

$

Not available

2

Simplicity LM-16076-05

SHAFT ASSEMBLY, Roller

$

$

Not available

3

Simplicity LM-01773-51

WASHER, Flat

$

$

Not available

4

Simplicity LM-01084-31

ROLLER ASSEMBLY

$

$

Not available

$

$

Not available

$

$

Not available

7

Simplicity LM-16021-86

BOLT, Shoulder

$

$

Not available

8

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

9

$

$

Not available

10

Simplicity LM-16088-45

QUADRANT, Mower Lift

$

$

Not available

11

Simplicity LM-16069-57

SPRING, Control Lever

$

$

Not available

12

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

13

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

$

$

Not available

15

Simplicity LM-16069-58

LEVER, Control

$

$

Not available

16

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

17

Simplicity LM-16068-95

ARM ASSEMBLY, Mower

$

$

Not available

18

Simplicity LM-16073-25

YOKE, Rod End

$

$

Not available

18

Simplicity LM-01576-31

YOKE, Rod End

$

$

Not available

19

$

$

Not available

20

Simplicity LM-01543-05

PIN, Yoke, 1/2

$

$

Not available

21

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

22

Simplicity LM-01572-86

RING, Retaining

$

$

Not available

23

Simplicity LM-16068-44

BRACKET, Pivot

$

$

Not available

24

Simplicity LM-09221-10

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

25

Simplicity LM-01081-99

LINK, Mower Lift

$

$

Not available

26

Simplicity LM-09239-06

WASHER, Flat, 3/16

$

$

Not available

27

$

$

Not available

28

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

29

$

$

Not available

$

$

Not available

31

Simplicity LM-09233-62

NUT, Hex, 5/16-18

$

$

Not available

32

Simplicity LM-16069-74

ROD, Adjusting (R.H.)

$

$

Not available

32

Simplicity LM-16069-10

ROD, Adjusting (R.H.)

$

$

Not available

33

Simplicity LM-16069-73

ROD, Adjusting (L.H.)

$

$

Not available

33

Simplicity LM-16069-09

ROD, Adjusting (L.H.)

$

$

Not available

34

Simplicity LM-09192-62

NUT, Hex, Jam, 1/2-20

$

$

Not available

35

Simplicity LM-16069-81

BRACKET, Mower, Front (R.H.)

$

$

Not available

36

Simplicity LM-16069-56

SPACER, Pivot

$

$

Not available

37

Simplicity LM-01563-06

PIN, Round Head, 3/8 x 1-1/2

$

$

Not available

38

Simplicity LM-16069-62

LINK ASSEMBLY, Mower

$

$

Not available

39

Simplicity LM-09193-60

SCREW, Hex Cap, 3/8-16 x 1-1/2

$

$

Not available

40

Simplicity LM-07773-54

WASHER, Flat

$

$

Not available

41

Simplicity LM-16069-80

BRACKET, Mower, Front (L.H.)

$

$

Not available

42

Simplicity LM-09164-31

SCREW, Hex, 5/16-18 x 1

$

$

Not available
