1600055 - Simplicity One Point Hitch One-Point Hitch Parts Diagram

One Point Hitch

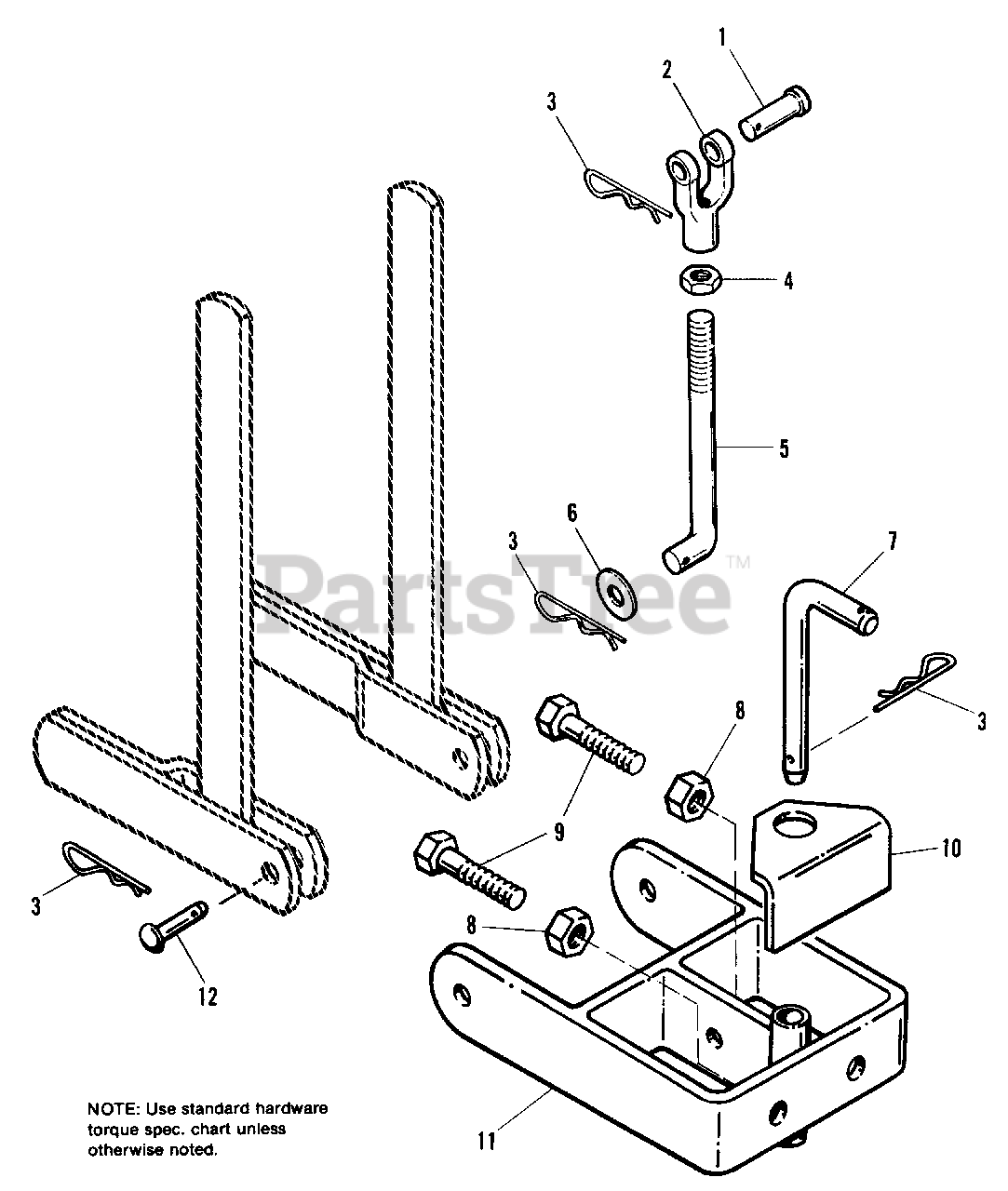

One-Point Hitch Parts Diagram

  • Title

1

Simplicity 2154305

PIN, YOKE

$

$

Not available

2

Simplicity 2154304SM

YOKE, End Adj.

$67.99

$

Usually ships in 2-12 days

0

3

Simplicity 2106788

CLIP, Spring

$

$

Not available

4

Simplicity 1919262SM

LOCKNUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1604349SM

ROD, Lift

$

$

Not available

6

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1716179SM

PIN, Hitch

$33.99

$

Usually ships in 2-12 days

0

8

Simplicity 1915726SM

NUT, Hex, Full, 5/8-11
(Superseded to 703912)

Note: Used with early model clevis only; later models have nuts welded to clevis.

$3.49

$

In Stock, Qty 5

0

9

Simplicity 2827340

CAPSCREW, Hex Hd., 5/8-11 x 2-1/4

$

$

Not available

10

Simplicity 1603816SM

PLATE, Stabilizer

$24.99

$

Usually ships in 2-12 days

0

11

Simplicity 1675373SM

CLEVIS ASSY.

$

$

Not available

12

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0
