1600006 - Simplicity 40" Dozer Blade 40" Dozer Blade (5008, 5010) Parts Diagram

40" Dozer Blade

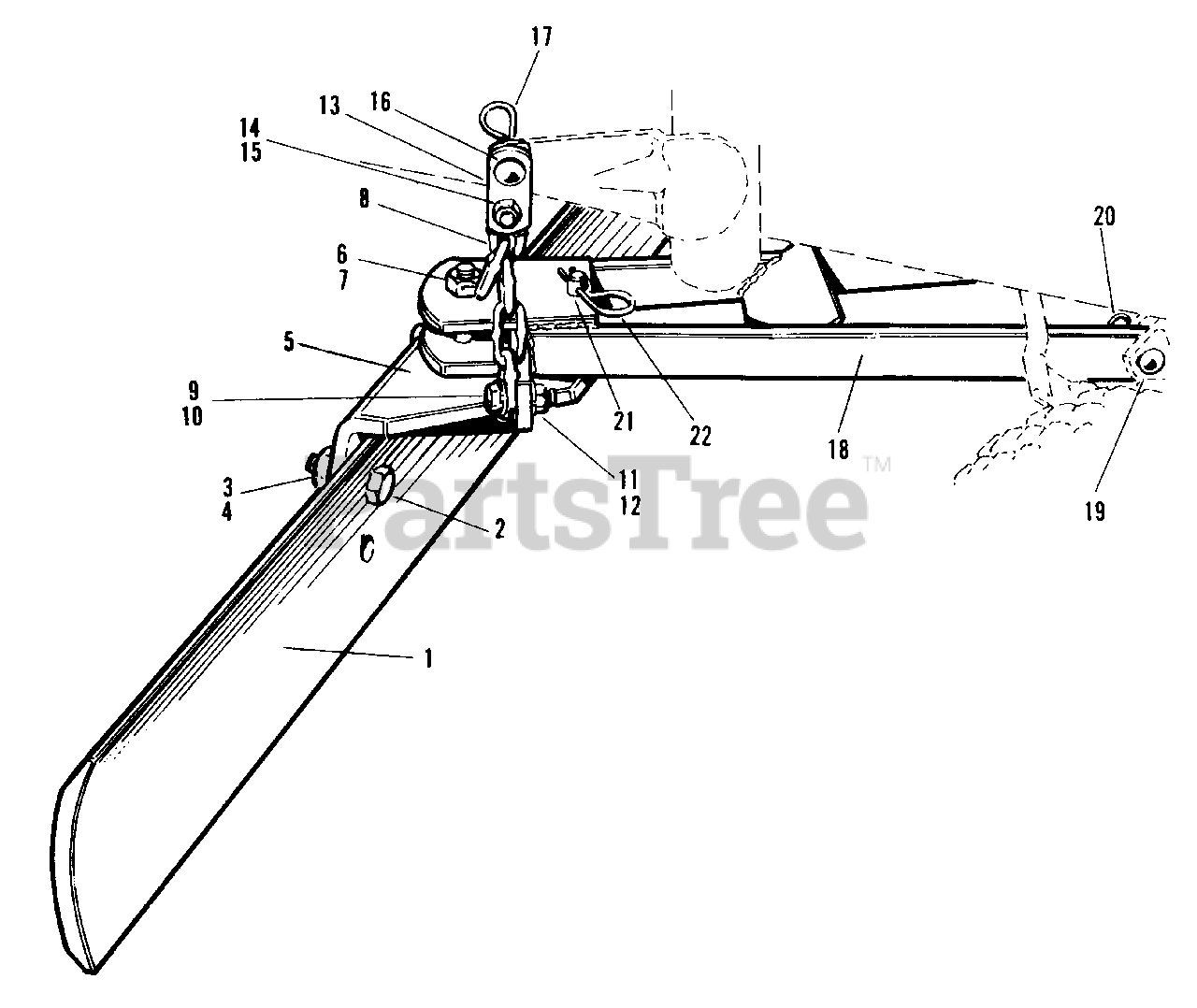

40" Dozer Blade (5008, 5010) Parts Diagram

  • Title

1

Simplicity 1652603

BLADE, Grader, 40"

$

$

Not available

2

Simplicity 919375

CAPSCREW, Hex, 5/8-11 x 2

$

$

Not available

3

Simplicity 2817373

LOCKWASHER, 5/8

$

$

Not available

4

Simplicity 2815726

NUT, 5/8-11

$

$

Not available

5

Simplicity 1652602

BRACKET

$

$

Not available

6

Simplicity 2822118

CAPSCREW, 5/8-11 x 3

$

$

Not available

7

Simplicity 923363

LOCKNUT, 5/8-11

$

$

Not available

8

Simplicity 2107031SM

CHAIN
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

9

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

10

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 108199

LINK

$

$

Not available

14

Simplicity 2807731

CAPSCREW, 3/8-16 x 1

$

$

Not available

15

Simplicity 2823428

LOCKNUT, 3/8-16

$

$

Not available

16

Simplicity 1708298SM

PIN

$

$

Not available

17

Simplicity 1918196SM

CLIP, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1652601

BAR ASSY., Pull

$

$

Not available

19

Simplicity 2156306SM

PlN

$7.49

$

In Stock, Qty 14

0

20

Simplicity 1918196SM

CLIP, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1729275SM

PlN, King

$18.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0
