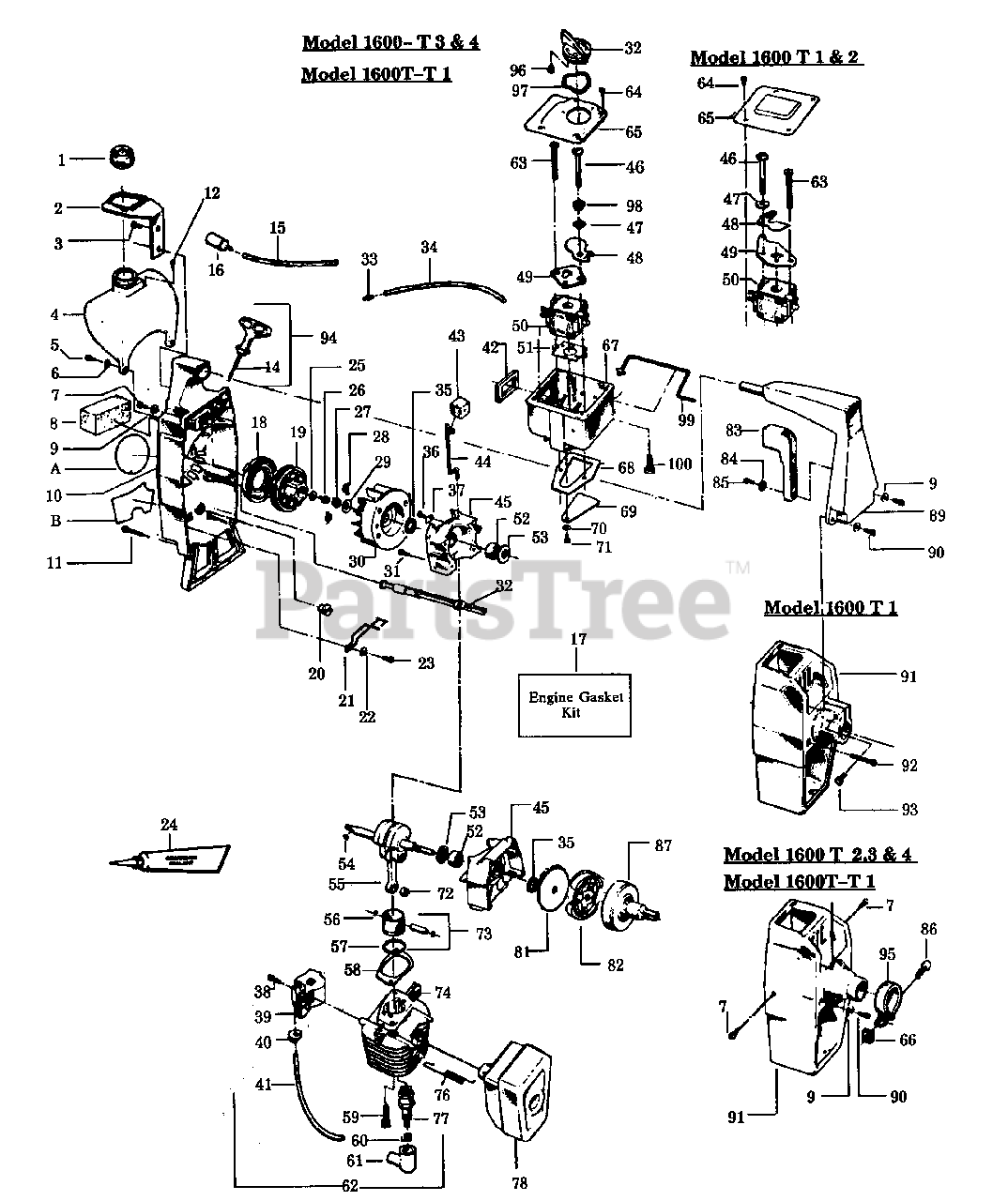

1600 T - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

POWER UNIT Parts Diagram

  • Title

1

Poulan 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

Note: (Incl. "O" Ring)

$9.49

$

In Stock, Qty 15

0

2

Poulan 530025377

Fuel Tank Bracket

$

$

Not available

3

Poulan 530092243

Screw #1/4-20x1-1/8
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

4

Poulan 530010887

Fuel Tank Ass'y. (Inc.1,12,15 & 16)

$

$

Not available

5

Poulan 530015509

Screw #10x1

$3.99

$

In Stock, only 2 left!

0

6

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

7

Poulan 530015168

1600 G.TRIMMER-T1

$

$

Not available

7

Poulan 530015590

1600 G.TRIMMER-T2,3 & 4; 1600T-T1

$

$

Not available

8

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530015274

Washer #10-1600 G.TRIMMER-T1 Only

$0.99

$

Usually ships in 3-10 days

0

10

Poulan 530010891

Fan Housing

$24.99

$

In Stock, only 1 left!

0

11

Poulan 530015305

1600 G.TRIMMER-T1

$1.99

$

Usually ships in 3-10 days

0

11

Poulan 530015594

1600 G.TRIMMER-T2,3, & 4; 1600T-T1

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530026119

Check Valve - Duck Bill

$5.99

$

In Stock, only 4 left!

0

14

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

15

Poulan 530021045

Fuel Line-1600 G.TRIMMER-T1 & 2

$

$

Not available

15

Poulan 530069247

Line Kit - 1600 G.TRIMMER-T 3 & 4; 1600T-T1

$7.99

$

In Stock, Qty 20+

0

16

Poulan 530091878

1600 G.TRIMMER-T1 & 2

$

$

Not available

16

Poulan 530010897

1600 G.TRIMMER-T 3 & 4; 1600T-T1
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

17

Poulan 530069219

Engine Gasket Kit (*Indicates Contents)

$

$

Not available

18

Poulan 530042067

Starter Recoil Spring
(Superseded to 545008009)

$

$

Not available

19

Poulan 530026048

Starter Pulley

$

$

Not available

20

Poulan 530026679

Kill Switch Button

$

$

Not available

21

Poulan 530026559

Kill Switch Spring

$

$

Not available

22

Poulan 530015382

Washer

$

$

Not available

23

Poulan 530015407

Screw #8x3/8

$

$

Not available

24

Poulan 530030054

Crankcase Sealant - 3 oz. tube

$

$

Not available

25

Poulan 530015123

Washer #10

$4.99

$

In Stock, only 4 left!

0

26

Poulan 530015479

Screw #10-3/4
(Superseded to 530071620)

$34.99

$

Usually ships in 3-10 days

0

27

Poulan 530626605

Flywheel Nut

$5.99

$

Usually ships in 3-10 days

0

28

Poulan 530042059

Starter Dog Spring
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

29

Poulan 530015127

Washer

$6.49

$

In Stock, only 1 left!

0

30

Poulan 530039114

Flywheel Ass'y. (Inc.28)

$

$

Not available

31

Poulan 530015369

Screw

$

$

Not available

32

Poulan 530024303

1600 G.TRIMMER-T1 & 2

$

$

Not available

32

Poulan 530027101

1600 G.TRIMMER-T3 & 4; 1600T-T1

$

$

Not available

33

Poulan 530025472

1600 G.TRIMMER-T1 & 2

$3.49

$

Usually ships in 3-10 days

0

33

Poulan 530026981

1600 G.TRIMMER-T3 & 4; 1600T-T1

$6.49

$

In Stock, Qty 7

0

34

Poulan 530021073

Carburetor Fuel Line

$

$

Not available

35

Poulan 530019059

Crankshaft Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

36

Poulan 530015004

Screw - 1600 G.TRIMMER-T1 & 2 Only

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 530024651

Choke Wire Clamp - 1600 G.TRIMMER-T1 & 2

$

$

Not available

38

Poulan 530015128

Screw #8-32x3/4
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530069181

Ignition Module Kit

$

$

Not available

40

Poulan 530024435

Plug Wire Grommet

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530039082

High Tension Lead Wire

$

$

Not available

42

Poulan 530019105

Carburetor Case Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

43

Poulan 530023373

Choke Wire Boot - 1600 G.TRIMMER-T1 & 2 Only

Note: Included in Engine Gasket Kit.

$

$

Not available

44

Poulan 530026236

Choke Wire - 1600 G.TRIMMER-T1 & 2 Only

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 530010757

Crankcase Ass'y (Inc.35,52 and Qty. 1 of #31)

$

$

Not available

46

Poulan 530015404

1600 G.TRIMMER-T1 & 2

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530015630

1600 G.TRIMMER-T3 & 4; 1600T-T1

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

48

Poulan 530024558

1600 G.TRIMMER-T1 & 2

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530026772

1600 G.TRIMMER-T3 & 4; 1600T-T1

$

$

Not available

49

Poulan 530026237

1600 G.TRIMMER-T1 & 2

$

$

Not available

49

Poulan 530026797

1600 G.TRIMMER-T3 & 4; 1600T-T1

$

$

Not available

50

Poulan 530035183

Carburetor (WA-149)

$

$

Not available

51

Poulan 530019157

Carburetor Gasket

Note: Included in Engine Gasket Kit.

$

$

Not available

52

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

53

Poulan 530015351

Crankshaft Thrust Washer

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530026675

1600 G.TRIMMER-T1 & 2

$121.99

$

Usually ships in 3-10 days

0

55

Poulan 530010858

1600 G.TRIMMER-T3

$118.99

$

Usually ships in 3-10 days

0

55

Poulan 530010844

1600 G.TRIMMER-T4; 1600T-T1

$

$

Not available

56

Poulan 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 1 left!

0

57

Poulan 530024302

1600 G.TRIMMER-T1,2 & 3

$

$

Not available

57

Poulan 530027369

1600 G.TRIMMER-T4; 1600T-T1

$

$

Not available

58

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

59

Poulan 530015239

Screw #1/4-20x3/4

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530003933

Spark Plug Connector
(Superseded to 507475326)

$

$

Not available

61

Poulan 530003934

Spark Plug Boot

$

$

Not available

62

Poulan 530039103

High Tension Lead Ass'y.(Inc.41,60,61)

$

$

Not available

63

Poulan 530015379

1600 G.TRIMMER-T1 & 2

$3.99

$

Usually ships in 3-10 days

0

63

Poulan 530015674

1600 G.TRIMMER-T3 & 4; 1600T-T1

$1.99

$

Usually ships in 3-10 days

0

64

Poulan 530015235

Screw

$

$

Not available

65

Poulan 530026029

1600 G.TRIMMER-T1 & 2

$

$

Not available

65

Poulan 530027100

1600 G.TRIMMER-T3 & 4; 1600T-T1

$

$

Not available

66

Poulan 530015610

Nut #12-24

$0.99

$

Usually ships in 3-10 days

0

67

Poulan 530010453

1600 G.TRIMMER-T1 & 2

$

$

Not available

67

Poulan 530027189

1600 G.TRIMMER-T3 & 4;1600T-T1

$

$

Not available

68

Poulan 530019108

Carburetor Case Crankcase Gasket

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 530024438

Reed Valve

$

$

Not available

70

Poulan 530023367

Reed Valve Washer

$

$

Not available

71

Poulan 530015241

Screw #6-19x5/16

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530032057

1600 G.TRIMMER-T1, 2 & 3

$

$

Not available

72

Poulan 530032092

1600 G.TRIMMER-T4; 1600T-T1

$9.99

$

Usually ships in 3-10 days

0

73

Poulan 530022198

1600 G.TRIMMER-T1,2 & 3

$

$

Not available

73

Poulan 530069240

1600 G.TRIMMER-T4; 1600T-T1

$

$

Not available

74

Poulan 530012190

Cylinder

$

$

Not available

76

Poulan 530024903

Muffler Attachment Spring
(Superseded to 530036409)

$

$

Not available

77

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

78

Muffler Ass'y., 1600 G.TRIMMER-See Service Reference 4

$

$

Not available

78

Poulan 530069243

1600T

$

$

Not available

81

Poulan 530069196

Clutch Washer Kit

$

$

Not available

82

Poulan 530069194

Clutch Ass'y. Kit

Note: (Incl. Clutch Washer)

$21.99

$

Usually ships in 3-10 days

0

83

Poulan 530025342

Throttle Trigger

$

$

Not available

84

Poulan 530015382

Throttle Washer

$

$

Not available

85

Poulan 530015407

Screw #8-16x3/8

$

$

Not available

86

Poulan 530015609

Screw 1/4-20x9/16 - 1600 G.TRIMMER-T2,3 & 4; 1600T-T1

$2.49

$

Usually ships in 3-10 days

0

87

Poulan 530010796

1600 G.TRIMMER-T1

$

$

Not available

87

Poulan 530010797

1600 G.TRIMMER-T2,3 & 4; 1600T-T1

$

$

Not available

89

Poulan 530025704

Handle

$

$

Not available

90

Poulan 530015163

Screw #10-24x7/8

$2.49

$

Usually ships in 3-10 days

0

91

Poulan 530012096

1600 G.TRIMMER-T1

$

$

Not available

91

Poulan 530026547

1600 G.TRIMMER-T2,3 & 4; 1600T-T1

$

$

Not available

92

Poulan 530015376

Screw #10-24x1-1/2 - 1600 G.TRIMMER-T1 Only

$

$

Not available

93

Poulan 530625509

Pinch Clamp Bolt-1600 G.TRIMMER-T1 Only

$2.49

$

Usually ships in 3-10 days

0

95

Poulan 530026560

Clamp-1600 G.TRIMMER-Type 2,3 & 4 1600T-T1

$2.49

$

Usually ships in 3-10 days

0

96

Poulan 530015740

Screw

$2.49

$

Usually ships in 3-10 days

0

97

Poulan 530015741

Washer-1600 G.TRIMMER-T 3 & 4;1600T-T1

$2.49

$

Usually ships in 3-10 days

0

98

Poulan 530015673

Spacer-1600 G.TRIMMER-T 3 & 4; 1600T-T 1

$3.99

$

Usually ships in 3-10 days

0

99

Poulan 530027190

Throttle Wire-1600 G.TRIMMER-T3,4; 1600T-T1

$

$

Not available

100

Poulan 530015723

Screw-1600 G.TRIMMER-T3 & 4; 1600T-T1

$

$

Not available

A

Poulan 530025708

1600 G.TRIMMER-T1 & 2

$

$

Not available

A

Poulan 530027312

1600 G.TRIMMER-T3 & 4; 1600T-T1

$

$

Not available

B

Poulan 530026421

1600 G.TRIMMER-T1 & 2

$

$

Not available

B

Poulan 530027116

1600 G.TRIMMER-T3 & 4;1600T-T1

$

$

Not available
