1600 - Lawn-Boy Walk-Behind Mower (SN: 700000001 - 799999999) (1967) Model 6252 Hevi-Duti Commercial Mower Parts Diagram

Walk-Behind Mower

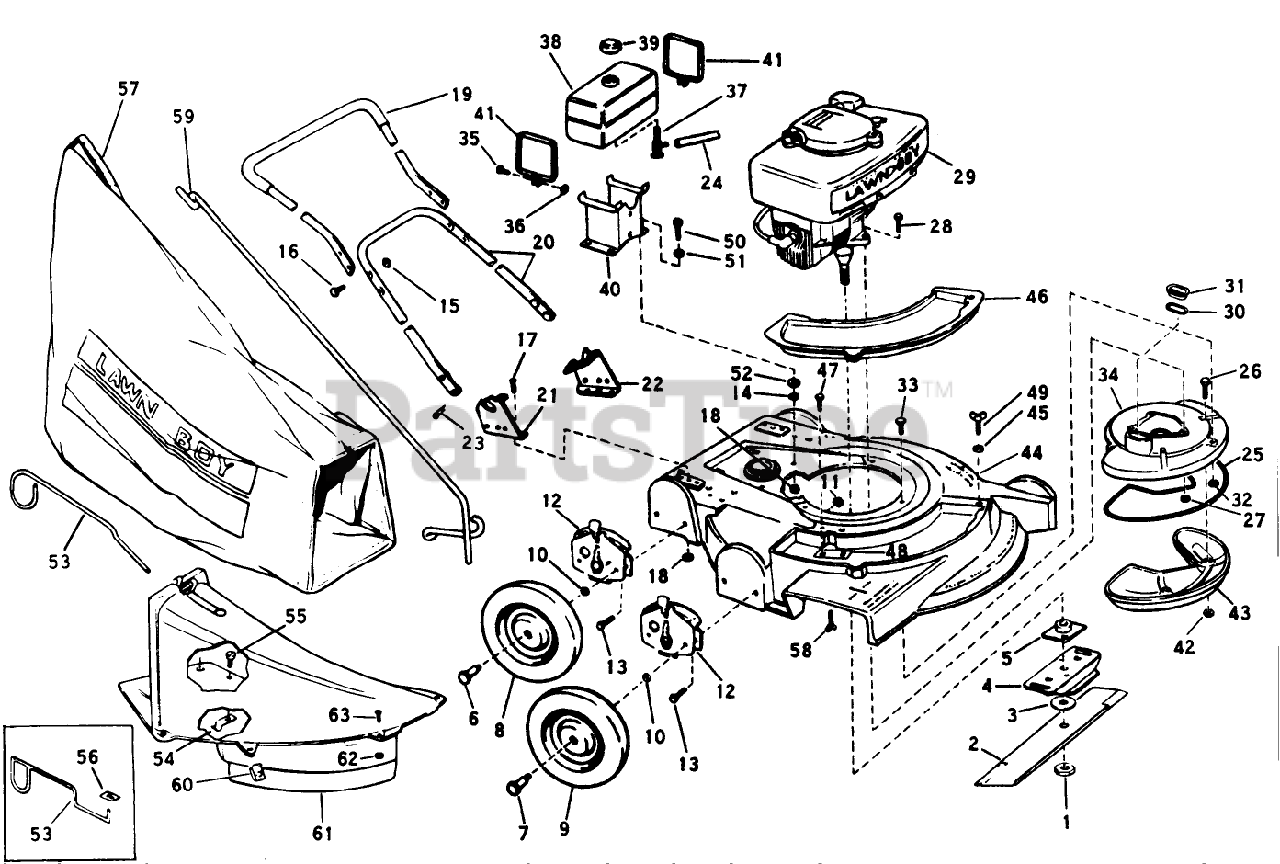

Model 6252 Hevi-Duti Commercial Mower Parts Diagram

  • Title

1

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

$29.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 605058

WASHER

$5.49

$

In Stock, Qty 12

0

4

Lawn-Boy 603541

DISCONTINUED

$

$

Not available

5

Lawn-Boy 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 603567

BOLT-SHOULDER

$13.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 603441

BOLT WHEEL

$7.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

$68.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 678513

DISCONTINUED

$

$

Not available

10

Lawn-Boy 603620

WASHER WROUGHT

$5.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 602830

NUT

$

$

Not available

12

Lawn-Boy 678462

DISCONTINUED

$

$

Not available

13

Lawn-Boy 605101

DISCONTINUED

$

$

Not available

14

Lawn-Boy 602945

WASHER

$

$

Not available

15

Lawn-Boy 602201

STOP NUT

$

$

Not available

16

Lawn-Boy 603105

DISCONTINUED

$

$

Not available

17

Lawn-Boy 602192

SCREW S

$8.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

19

Lawn-Boy 678225

Handle Grip Assy. Top

$

$

Currently unavailable

20

Lawn-Boy 678280

HANDLE

$

$

Not available

21

Lawn-Boy 604596

DISCONTINUED

$

$

Not available

22

Lawn-Boy 678224

DISCONTINUED

$

$

Not available

23

Lawn-Boy 603927

DISCONTINUED

$

$

Not available

24

Lawn-Boy 603451

DISCONTINUED

$

$

Not available

25

Lawn-Boy 604516

DISCONTINUED

$

$

Not available

26

Lawn-Boy 604036

See Supercession: 607847
(Superseded to 607847)

$

$

Not available

27

Lawn-Boy 602830

NUT

$

$

Not available

28

Lawn-Boy 604039

DISCONTINUED

$

$

Not available

29

Lawn-Boy 678245

DISCONTINUED

$

$

Not available

30

Lawn-Boy 604624

GASKET S

$9.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 602717

SLEEVE

$2.99

$

In Stock, Qty 15

0

32

Lawn-Boy 602830

NUT

$

$

Not available

33

Lawn-Boy 602693

DISCONTINUED

$

$

Not available

34

Lawn-Boy 604026

DISCONTINUED

$

$

Not available

35

Lawn-Boy 310302

DISCONTINUED

$

$

Not available

36

Lawn-Boy 306542

Nut

$

$

Currently unavailable

37

Lawn-Boy 677052

VALVE&SCREEN SM

$22.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 678265

DISCONTINUED

$

$

Not available

39

Lawn-Boy 678298

DISCONTINUED

$

$

Not available

40

Lawn-Boy 604982

DISCONTINUED

$

$

Not available

41

Lawn-Boy 604643

DISCONTINUED

$

$

Not available

42

Lawn-Boy 602315

LOCKNUT E

$4.49

$

In Stock, only 2 left!

0

43

Lawn-Boy 604024

DISCONTINUED

$

$

Not available

44

Lawn-Boy 678516

DISCONTINUED

$

$

Not available

45

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 13

0

46

Lawn-Boy 678505

DISCONTINUED

$

$

Not available

47

Lawn-Boy 603012

DISCONTINUED

$

$

Not available

48

Lawn-Boy 604214

DISCONTINUED

$

$

Not available

49

Lawn-Boy 604608

DISCONTINUED

$

$

Not available

50

Lawn-Boy 604994

DISCONTINUED

$

$

Not available

51

Lawn-Boy 306405

DISCONTINUED

$

$

Not available

52

Lawn-Boy 604995

DISCONTINUED

$

$

Not available

Lawn-Boy 678504

DISCONTINUED

$

$

Not available

53

Lawn-Boy 604051

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

53

Lawn-Boy 604051

DISCONTINUED

Note: Only one wheel guard is included with 678504. For replacement guards be sure to order the correct part for your grass catcher.

$

$

Not available

53

Lawn-Boy 678723

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

53

Lawn-Boy 678723

DISCONTINUED

Note: Only one wheel guard is included with 678504. For replacement guards be sure to order the correct part for your grass catcher.

$

$

Not available

54

Lawn-Boy 605664

DISCONTINUED

$

$

Not available

55

Lawn-Boy 605986

Screw

$

$

Currently unavailable

56

Lawn-Boy 604597

DISCONTINUED

$

$

Not available

57

Lawn-Boy 678254

89802 LB WHOLE GOODS

$

$

Not available

58

Lawn-Boy 604213

DISCONTINUED

$

$

Not available

59

Lawn-Boy 678002

DISCONTINUED

$

$

Not available

Lawn-Boy 678463

DISCONTINUED

$

$

Not available

60

Lawn-Boy 604227

SPEED NUT ARDEN

$

$

Not available

61

Lawn-Boy 678503

Chute Skirt Assembly (Includes Hardware)

$

$

Currently unavailable

62

Lawn-Boy 133079

NUT S

$2.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 602063

DISCONTINUED

$

$

Not available
