1600 A (80124) - Snapper Garden Tractor, 16hp Steering Gear Parts Diagram

Garden Tractor, 16hp

Steering Gear Parts Diagram

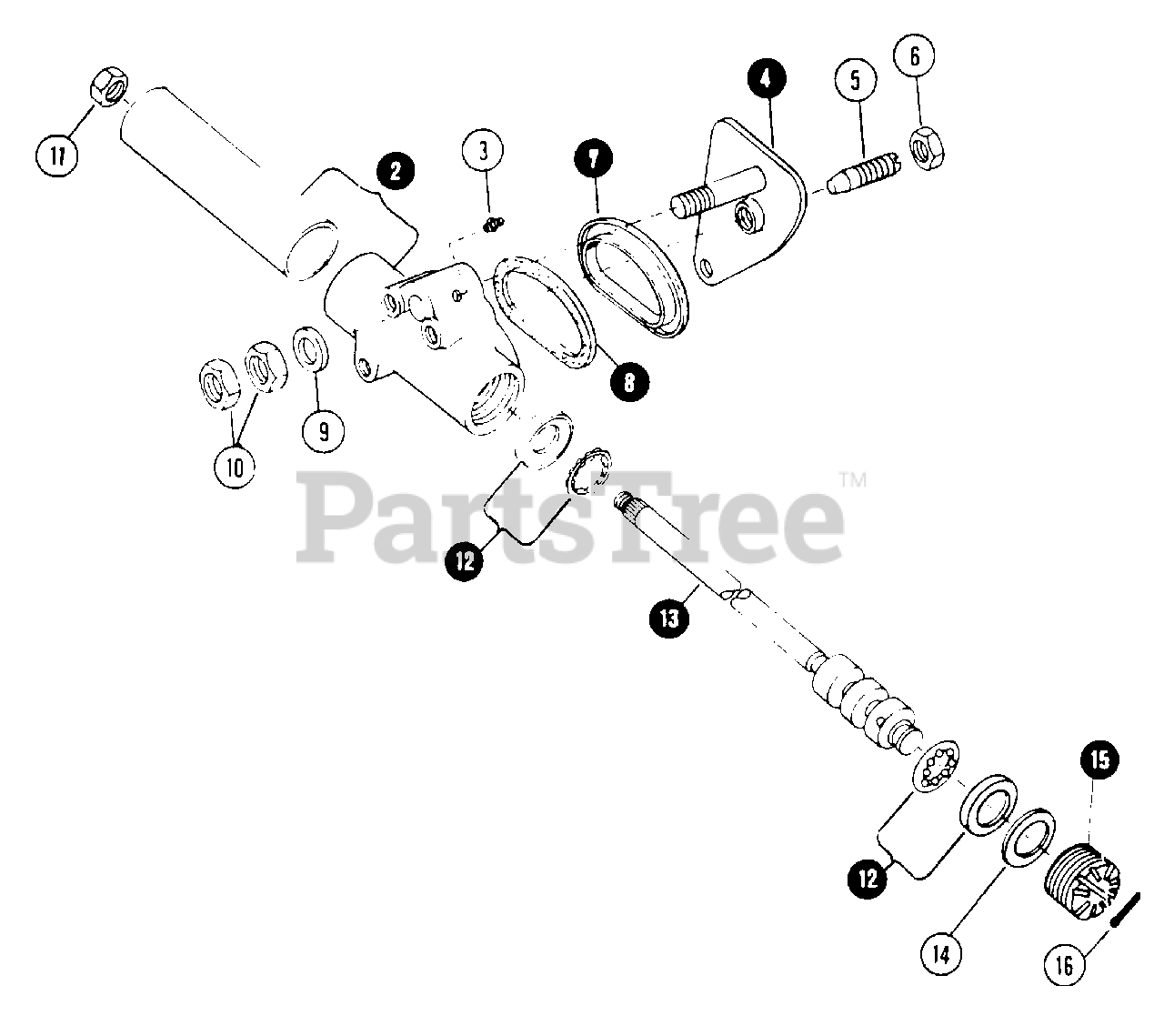

  • Title

?1

Snapper 19864

STEERING GEAR ASSEMBLY

Note: (INCLUDES THE FOLLOWING 15 ITEMS)

$

$

Currently unavailable

2

Snapper 7013713

HOUSING, STEERING GEAR

$

$

Currently unavailable

3

Snapper 13714

FITTING, GREASE 1/4 STRAIGHT DRIVE

$

$

Currently unavailable

4

Snapper 12957

LEVER, STEERING

$

$

Currently unavailable

5

Snapper 7051584

STUD, STEERING LEVER ADJUSTING
(Superseded to 7051584YP)

Note: Was 12059

$92.99

$

In Stock, only 4 left!

0

6

Snapper 13716

NUT, 9/16F HEX

$

$

Currently unavailable

7

Snapper 13058

RETAINER, STEERING LEVER ADJUSTING

$

$

Currently unavailable

8

Snapper 7013717

SEAL, STEERING LEVER

$

$

Currently unavailable

9

Snapper 13718

WASHER, STEERING LEVER

$

$

Currently unavailable

10

Snapper 7090283

NUT, 3/4F HALF HEX

Note: (TWO REQ'D)

$

$

Not available

11

Snapper 7090278

NUT, 5/8F HEX

$

$

Not available

12

Snapper 13715

KIT, BEARING REPLACEMENT

Note: (INCLUDES CUP & BRG.)

$

$

Currently unavailable

13

CAM-TUBE ASSEMBLY

Note: (Order 19864 ASSEMBLY (Item 1))

$

$

Not available

14

Snapper 7013719

WASHER, BELLEVILLE

$

$

Not available

15

Snapper 13057

PLUG, CAM-TUBE ADJUSTING

$

$

Currently unavailable

16

Snapper 13720

COTTER-PIN, 1/8 x 1/2

$

$

Currently unavailable
